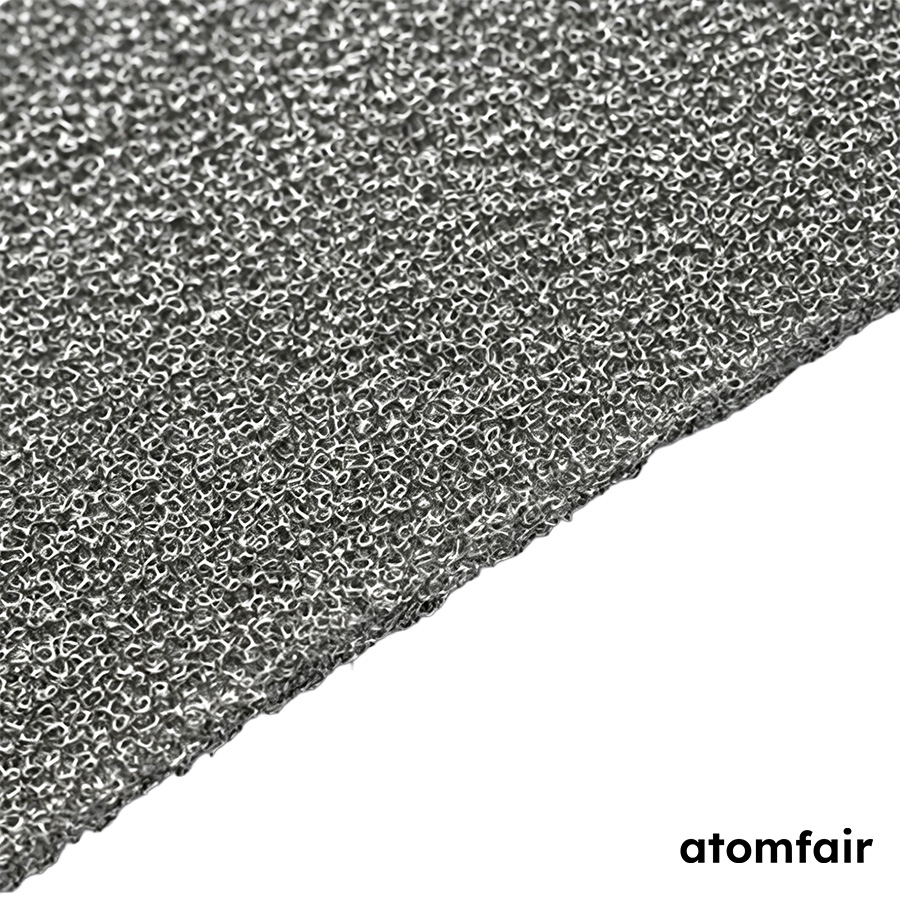

Open-Cell Nickel Foam Sheet 40 PPI 100×100×20 mm ATOMFAIR®
Open-Cell Nickel Foam Sheet 40 PPI 100×100×20 mm ATOMFAIR® - Image 2

Open-Cell Nickel Foam Sheet 40 PPI 100×100×20 mm ATOMFAIR®

Price range: $95.00 through $195.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade open-cell nickel foam sheet, 40 PPI, 100 × 100 × 20 mm, with 60–98% porosity and ≥98% through-pore rate. Order now for lab use.

SKU: AF-AF-F-N040-T020-AVAR
Category:
Tags: , , , , ,
Brands:

Laboratory Open-Cell Nickel Foam, 40 PPI, 100 × 100 × 20 mm, 1/5 pcs
Research-grade laboratory product
Product Overview

Open-cell nickel foam with 40 PPI is a lightweight, electrically conductive porous-metal sheet built around a continuous three-dimensional nickel skeleton. In this 100 × 100 × 20 mm format, the approximately 0.64 mm nominal pore pitch creates a regular open network with extensive internal surface exposure, allowing gases, liquids and electrochemical reactants to move through the material instead of remaining confined to the outer faces.

The interconnected framework gives the sheet a useful balance of permeability, formability and structural continuity. It can be cut, bent or bonded into laboratory assemblies while preserving the open pathways needed for filtration, catalytic contact, electrode loading and heat transfer. The nickel matrix also makes the foam relevant where electrical conduction, thermal response, corrosion resistance, acoustic attenuation or electromagnetic shielding must be combined with a low-mass cellular structure.

This specification is suitable for evaluating battery and fuel-cell electrodes, nickel-carbon composite electrode structures, catalyst carriers, exhaust and air-purification media, oil-water separation, industrial filtration, hydrogen electrolysis, electrocatalysis, heat-pipe wicks, condenser structures and distillation packing. Select the PPI, sheet dimensions and thickness around the intended flow, surface-area and integration requirements; choose a 1-piece pack for initial evaluation or a 5-piece pack for repeated trials and small-batch assembly.
Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-N40-10T20
Material Foamed nickel
Product Form Open-cell nickel foam sheet
Cell Structure Homogeneous three-dimensional open-pore network
Pore Density 40 PPI
Nominal Pore Pitch / Approx. Pore Size 0.64 mm
General Pore-Size Capability 0.1–10 mm (5–120 PPI)
General Pore Count per Linear Inch 5–130
Porosity 60–98%
Through-Pore Rate ≥98%
Bulk Density 0.1–0.8 g/cm³
Specific Gravity 0.2–0.3
Sheet Size 100 × 100 × 20 mm
Thickness 20 mm
General Custom Size Capability Up to 500 × 1000 mm
Tensile Strength 8–50 MPa
Compressive Strength ≥250 kPa
Mechanical Strength ≥2–7 MPa
Listed Temperature Resistance ≥500°C
Listed High-Temperature Capability >1100°C
Heat-Transfer Coefficient >3 W/(m²·K)
Package Options 1 pc; 5 pcs
Typical Applications Battery electrodes, catalyst carriers, filtration and separation media, electrochemical processes, heat-transfer structures, acoustic control, vibration damping and electromagnetic shielding
Key Features and Advantages
  • 40 PPI open-cell structure with an approximately 0.64 mm nominal pore pitch.
  • 100 × 100 mm sheet dimensions with a 20 mm nominal thickness.
  • Homogeneous three-dimensional network with 60–98% stated porosity and at least 98% through-pore rate.
  • Stated bulk-density range of 0.1–0.8 g/cm³ and specific gravity of 0.2–0.3.
  • The listed specific gravity is approximately one-quarter that of water, one-third that of wood, one-tenth that of aluminum and one-thirtieth that of iron.
  • Broad-frequency sound absorption and additional sound-insulation capability after suitable treatment.
  • Listed electromagnetic-wave shielding performance is approximately 90 dB with a relatively thin material section.
  • Can be cut, bent and bonded for downstream fabrication and installation.
  • Stable porous structure supports filtration and steady gas or liquid flow.
  • Thermally conductive network supports rapid heating and heat-transfer applications.
  • Fire-resistant, recyclable metallic structure with listed resistance to high-temperature and acid/alkali conditions.
  • Can be processed for interior decorative and functional surface applications.
  • Available as a single sheet for initial evaluation or a 5-piece pack for repeated trials and small-batch assembly.
Application Scope

Suitable for laboratory and engineering evaluations that require a 40 PPI open nickel network in a 100 × 100 × 20 mm format. Application areas include nickel-metal-hydride, nickel-cadmium and fuel-cell positive and negative electrodes; nickel-carbon composite electrodes for lithium batteries; catalyst and exhaust-purification carriers; air purification, oil-water separation and industrial filtration; hydrogen electrolysis, electrocatalysis and electrochemical metallurgy; infrared-burner surfaces and industrial or domestic drying-heater structures; heat-pipe wicks and condenser heat-transfer media; distillation-tower packing; and functional damping, acoustic, vibration-buffering, electromagnetic-shielding, thermal-insulation and decorative structures.
SELECTION GUIDANCE: Confirm PPI, nominal pore pitch, porosity requirement, through-pore rate, sheet length and width, thickness, bulk-density range, operating environment and required quantity before quotation. Confirm application-critical corrosion, temperature, mechanical and integration requirements before ordering.
HANDLING & INSPECTION: Store the sheets in a clean, dry area and protect the open cellular surface from heavy impact, crushing and contamination. After delivery, check the package condition, sheet dimensions and visible pore structure before cutting, bonding or installing the material.
IMPORTANT NOTICE: Custom dimensions are available upon consultation. For a dimensional feasibility review by e-mail, provide the target length, width, thickness, PPI and estimated quantity.
LABORATORY PROCUREMENT SUPPORT
For PPI selection, sheet-dimension confirmation, package support or application-specific configuration review, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The open-cell nickel foam sheet must be stored in a clean, dry area to prevent contamination and degradation of the porous structure. The cellular surface requires protection from heavy impact, crushing, and contamination to maintain its structural integrity and performance.

  • Storage Condition: Store the sheets in a clean, dry area.
  • Impact Protection: Protect the open cellular surface from heavy impact.
  • Crush Protection: Protect the open cellular surface from crushing.
  • Contamination Protection: Protect the open cellular surface from contamination.
  • Pre-Use Inspection: After delivery, check the package condition, sheet dimensions and visible pore structure before cutting, bonding or installing the material.

How does the 40 PPI pore density and 0.64 mm nominal pore pitch influence the trade-off between fluid permeability and electrochemical surface area in this nickel foam?

The 40 PPI structure with approximately 0.64 mm nominal pore pitch creates a regular open network with extensive internal surface exposure while maintaining a through-pore rate of at least 98% and porosity between 60–98%. This allows gases, liquids, and electrochemical reactants to move through the material rather than remaining confined to outer faces, providing a useful balance of permeability, formability, and structural continuity for battery electrodes, catalyst carriers, and filtration applications.

What is the maximum operating temperature this nickel foam can withstand in high-temperature applications?

The listed temperature resistance is at least 500°C, with a high-temperature capability exceeding 1100°C. The nickel matrix provides a fire-resistant, recyclable metallic structure that maintains integrity under high-temperature and acid/alkali conditions, making it suitable for applications such as infrared-burner surfaces, heat-pipe wicks, and condenser heat-transfer media.

What storage and handling precautions are necessary to preserve the open-cell structure of this 20 mm thick nickel foam?

Store the sheets in a clean, dry area and protect the open cellular surface from heavy impact, crushing, and contamination. After delivery, check the package condition, sheet dimensions, and visible pore structure before cutting, bonding, or installing the material. The foam can be cut, bent, and bonded for downstream fabrication while preserving the open pathways needed for filtration, catalytic contact, electrode loading, and heat transfer.

This 40 PPI open-cell nickel foam sheet (100 × 100 × 20 mm) provides a continuous three-dimensional network with ≥98% through-pore rate and 60–98% porosity, making it suitable for electrochemical electrodes, catalyst carriers, and filtration media. Its moderate mechanical strength (tensile 8–50 MPa, compressive ≥250 kPa) and sensitivity to crushing require careful handling and storage.

Positive

  • High porosity and through-pore rate: Porosity of 60–98% with ≥98% through-pore rate ensures excellent fluid permeability and extensive internal surface area for electrochemical reactions, filtration, and catalytic contact.
  • Thermal and electrical conductivity: The nickel matrix provides a heat-transfer coefficient >3 W/(m²·K) and electrical conductivity, enabling rapid thermal response and use as an electrode substrate in batteries and fuel cells.

Trade-offs

  • Moderate mechanical strength: Tensile strength ranges from 8 to 50 MPa and compressive strength is ≥250 kPa, limiting use in high-load structural applications and requiring careful handling during fabrication.
  • Sensitivity to impact and crushing: The open-cell structure must be protected from heavy impact, crushing, and contamination during storage and handling to preserve pore integrity and performance.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Package Quantity

1 pcs, 5 pcs
