Oil-Free Diaphragm Vacuum Pump Unit AF-VP-100 ATOMFAIR®

Oil-Free Diaphragm Vacuum Pump Unit AF-VP-100 ATOMFAIR®

$210.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

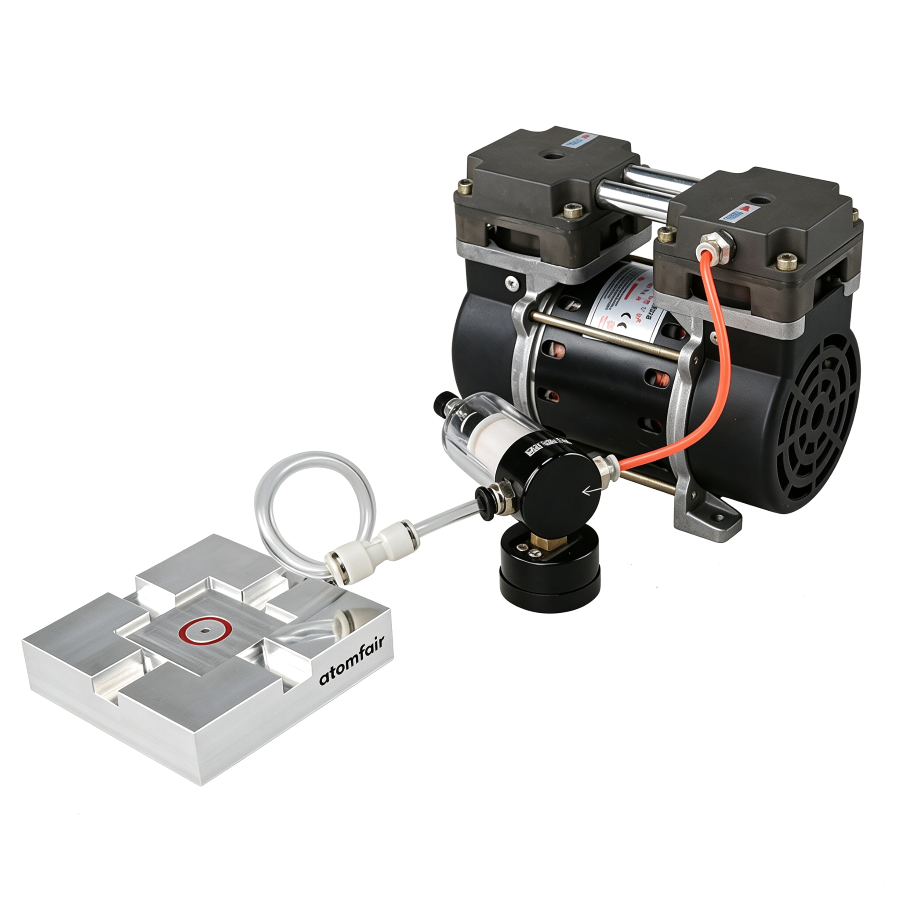

AF-VP-100 oil-free diaphragm vacuum pump with tubing and inline connector assembly for release-mode handling of delicate flat components. In stock.

SKU: AF-EI-A-VPMP-P100-PUMP
Category:
Brands:

LABORATORY PRECISION VACUUM PUMP

COMPATIBLE RELEASE HARDWARE

System Overview
The vacuum pump is an oil-free diaphragm pump unit equipped with tubing and an inline connector assembly to provide the vacuum source required for release-mode operation.

During use, the vacuum release station supports the tray from below while the pump draws vacuum through the base channel, helping change the contact state between the tray membrane and the component so the part can be lifted more easily. This accessory set is suitable for semiconductor dies, optical chips, microelectronic parts and other delicate flat components that need cleaner unloading, pick-up preparation, inspection handling and precision transfer without hard prying or excessive manual contact.


Technical Specifications
HARDWARE PROFILE DETAILS & ORDERING PARAMETERS
1. Vacuum Pump
Model: AF-VP-100 Oil-free diaphragm vacuum pump with tubing and inline connector assembly
Pump Type Oil-free diaphragm vacuum pump
Main Construction Pump body with tubing, inline connector and filter assembly for vacuum line connection
Material Profile Mixed metal and engineering-plastic housing with flexible vacuum tubing
Function Provides the vacuum source required for tray release operation without oil contamination in the working area
2. System Use and Compatibility
Compatible Use Used together with a matching vacuum release tray or vacuum box; the vacuum release station and pump are both required to draw vacuum
Typical Components Semiconductor dies, optical chips, microelectronic parts and other delicate flat components
Typical Workflow Release-mode unloading, pick-up preparation, inspection handling and precision transfer of fragile components

Key Features & Advantages
  • Seamless Release Mode Activation: Pulls a controlled, uniform vacuum through the tray base to safely deform the elastic gel membrane, minimizing contact area for easy sample retrieval.
  • Premium Lab-Grade Construction: Features high-durability anodized aluminum base plates and oilless diaphragm engineering to ensure long-term structural integrity and zero workspace fluid contamination.
  • Universal Compatibility Matrix: Engineered to lock onto standard lab hardware systems, vacuum wands, and non-destructive pickup instrumentation templates without pressure leakage.

APPLICATION SCOPE: Essential for temporary component release during bare die handling, semiconductor assembly, microfluidic mapping, and fragile crystal research logistics.
PACKAGING: Housed within impact-resistant transit shielding shells. Standard hardware profiles include certified calibration sheets and premium cleanroom washing procedures before inert gas sealing.
IMPORTANT NOTICE: These vacuum release stations and pump units must be used in conjunction with a matching vacuum release tray. You can search directly on our website to explore and purchase from our extensive inventory of vacuum release tray, available in multiple grid arrays and adhesion levels.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This vacuum pump requires use with a matching vacuum release tray to achieve proper vacuum sealing. The system is designed for oil-free operation to avoid contamination of sensitive components during handling.

  • Compatibility Requirement: The pump must be used with a compatible vacuum release tray to ensure proper vacuum draw and release operation.

What are the advantages of using an oil-free diaphragm vacuum pump like the AF-VP-100 over traditional oil-sealed pumps in a microelectronics cleanroom environment?

The AF-VP-100's oil-free diaphragm design eliminates any risk of oil contamination in the working area, making it suitable for cleanroom use. It provides a controlled uniform vacuum for tray release operation without introducing fluid contaminants, which is critical for handling semiconductor dies, optical chips, and other delicate flat components.

What type of vacuum release tray is required to operate the AF-VP-100 pump effectively?

The pump must be used with a matching vacuum release tray or vacuum box; both are required to draw vacuum. The tray should be from the same manufacturer's inventory, available in multiple grid arrays and adhesion levels, to ensure proper sealing and release performance during semiconductor die and optical chip handling.

What packaging and handling procedures are necessary to maintain the cleanroom readiness of the AF-VP-100 pump upon delivery?

The pump is shipped in impact-resistant transit shielding, having undergone certified calibration and premium cleanroom washing before inert gas sealing. To maintain its cleanroom integrity, the pump should be unpacked in a controlled environment and stored in a clean area until use, ensuring zero workspace fluid contamination.

The AF-EI-A-VPMP-P100-PUMP is an oil-free diaphragm vacuum pump providing controlled vacuum for release-mode handling of delicate flat components such as semiconductor dies and optical chips, requiring a matching vacuum release tray for operation.

Positive

  • Oil-free operation prevents contamination: The oil-free diaphragm pump design eliminates oil contamination in the working area, making it suitable for cleanroom environments and sensitive component handling.
  • Controlled vacuum for fragile component release: Pulls a controlled, uniform vacuum through the tray base to safely deform the elastic gel membrane, minimizing contact area for easy retrieval of delicate parts without hard prying.

Trade-offs

  • Requires matching vacuum release tray: The pump must be used in conjunction with a compatible vacuum release tray or vacuum box; it cannot function as a standalone vacuum source for release-mode operations without this accessory.
  • Limited to low-pressure diaphragm pump capacity: As an oil-free diaphragm pump, it provides moderate vacuum levels suitable for release-mode handling but may not achieve the deep vacuum required for other high-vacuum applications.
