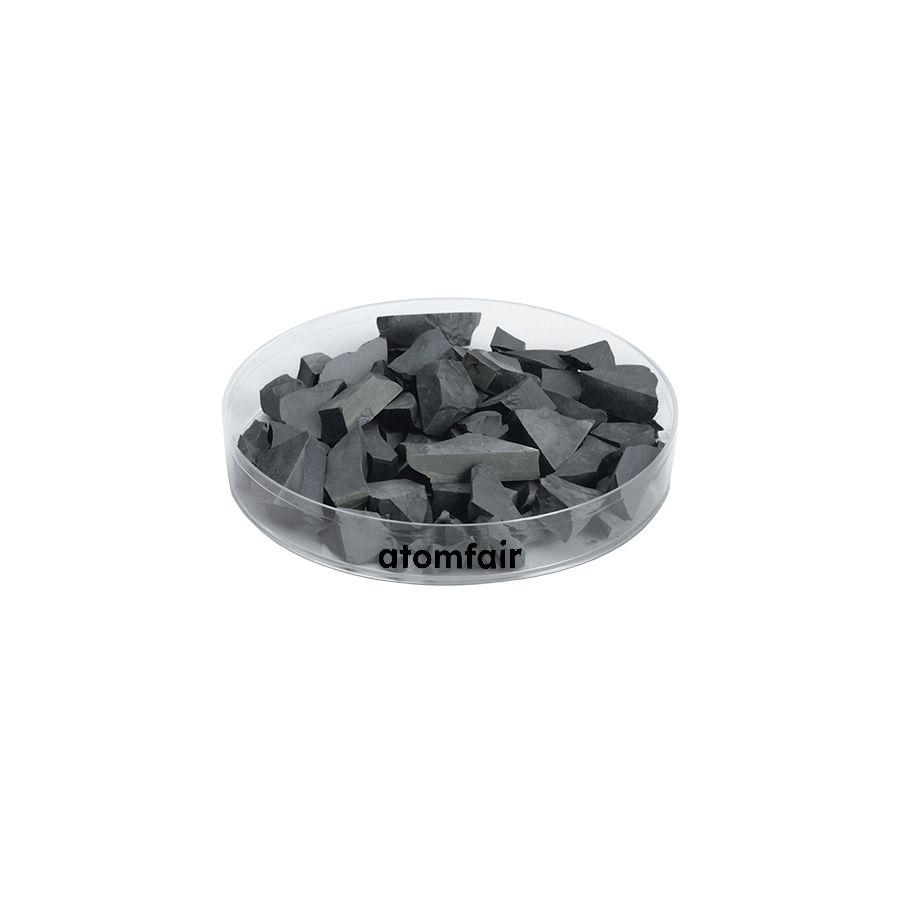

Niobium Boride (NbB2) Evaporation Material, Pieces, 99.9%, 1-3 mm
Product Type: Compound Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This niobium boride evaporation material requires high-temperature E-beam evaporation with a compatible liner; thermal evaporation feasibility must be confirmed via RFQ. The piece size range (1-3 mm) must match the deposition source geometry, and the high melting point (2900°C) necessitates a high-temperature crucible assembly.
- Deposition Method Compatibility: E-beam evaporation is the preferred deposition method; thermal evaporation feasibility must be confirmed through RFQ.
- Crucible and Liner Requirements: A compatible liner and high-temperature crucible are necessary to withstand the material's melting point during evaporation.
- Piece Size and Source Geometry: The 1-3 mm piece size must be verified against the deposition source geometry to ensure proper loading.
- Material Behavior and Process Matching: The evaporation source hardware and process route must be matched to the material's melting point and film requirements.
What is the recommended evaporation method for NbB2 pieces, and why is E-beam preferred over thermal evaporation?
E-beam evaporation is preferred for NbB2 pieces due to the material's high melting point of 2,900°C. Thermal evaporation may be considered but requires a request for quotation (RFQ) to assess feasibility, as the high melting point and boride chemistry may necessitate specialized crucible liners or equipment modifications.
How does the 1-3 mm piece size of NbB2 evaporation material influence source loading and process consistency?
The 1-3 mm piece size is specifically selected for E-beam hearth source loading, where controlled piece dimensions ensure uniform feeding and consistent evaporation rates. This sizing supports reliable deposition in vacuum thin-film workflows by preventing bridging or irregular feed.
What documentation and procurement checks are essential before ordering NbB2 evaporation material?
Buyers should confirm model, purity (99.9%), form (pieces), size range (1-3 mm), pack size (25g to 1kg), and deposition-source compatibility. Certificate of analysis, safety data sheet, shipment conditions, and export requirements are available upon request from the technical sales team.
Niobium Boride (NbB2) evaporation material in 1-3 mm piece form with 99.9% purity is evaluated for e-beam evaporation deposition, requiring high-temperature crucible compatibility and careful source geometry matching due to its 2,900°C melting point and 6.97 g/cm³ density.
Positive
- High-purity compound for thin films: 99.9% purity and defined NbB2 composition enable reproducible film stoichiometry in research-grade vacuum deposition workflows.
- Controlled piece size for source loading: 1-3 mm piece sizing supports consistent feed into e-beam hearths and facilitates uniform evaporation rate control.
Trade-offs
- High melting point limits source options: At 2,900°C, the material requires e-beam evaporation with compatible high-temperature crucibles; thermal evaporation is not feasible without RFQ confirmation.
- Density mismatch may affect deposition uniformity: A density of 6.97 g/cm³ necessitates careful source geometry and liner selection to avoid uneven melting or spitting during e-beam evaporation.
