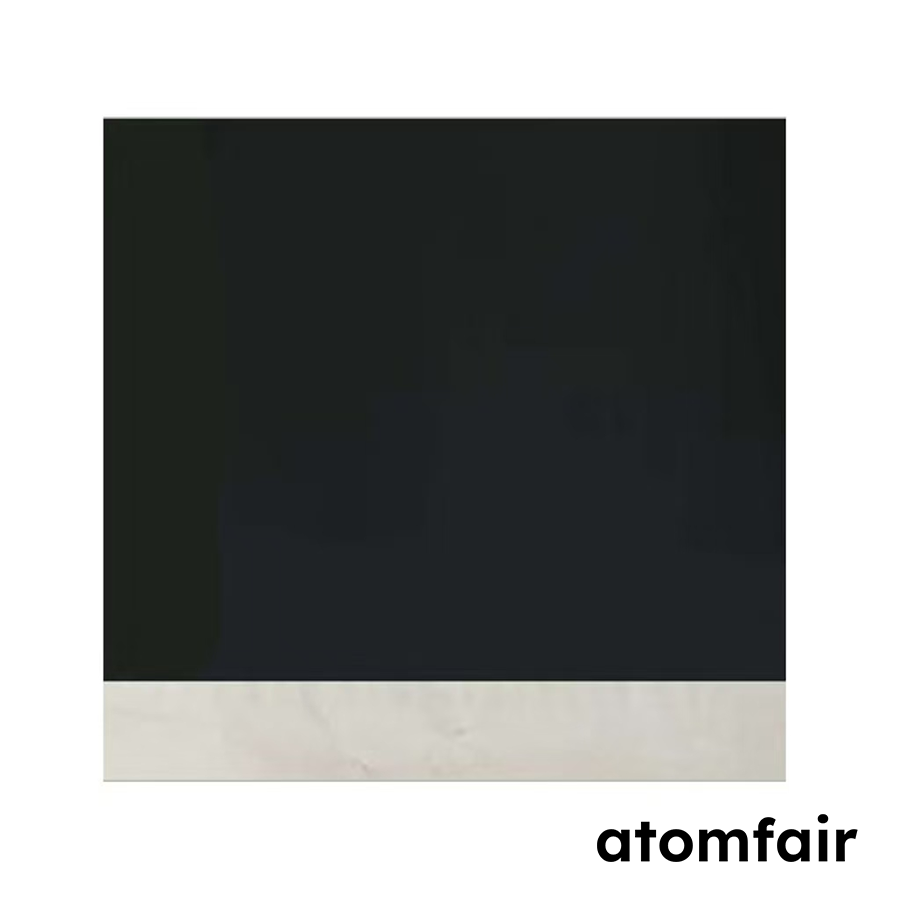

ATOMFAIR® NFPP-S01 SODIUM IRON PHOSPHATE PYROPHOSPHATE (NFPP) ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||
|
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
|
What is the compaction density of the NFPP-S01 electrode sheet, and how does it influence the trade-off between electrode porosity and ionic conductivity?
The NFPP-S01 datasheet lists compaction density as '-', indicating it is not specified by the manufacturer. Researchers should determine the optimal compaction density through empirical calendering experiments to achieve the desired porosity and ionic transport characteristics for their specific sodium-ion battery chemistry.
Can this single-side coated NFPP electrode be used directly in standard 2032 coin cells with sodium metal as the counter electrode?
Yes, the single-side coated NFPP electrode on carbon-coated aluminum foil is compatible with standard sodium metal counter electrodes in half-cell configurations. The 120×120 mm coating area can be punched into smaller electrode discs, and the wet-process coating ensures uniform adhesion for reliable testing.
What are the recommended drying conditions for this NFPP electrode sheet before cell assembly?
The recommended drying protocol is vacuum baking at 100°C for 12 hours to remove residual moisture and solvent. This is explicitly specified in the product documentation to ensure consistent electrochemical performance in sodium-ion battery testing.
This NFPP electrode sheet provides a high active material ratio of 94.5% and consistent 12 mg/cm² wet coating, supporting reliable sodium-ion battery R&D. Users must note the mandatory 12-hour vacuum baking at 100°C and the limitation of single-sided coating on a fixed 120×120 mm area.
Positive
- High active material ratio: The 94.5% active material loading minimizes inactive components, maximizing specific capacity and electrochemical performance for accurate material evaluation.
- Precise wet coating density: The 12 mg/cm² areal coating applied via wet process ensures uniform electrode architecture, enabling reproducible electrochemical testing in R&D settings.
Trade-offs
- Pre-use vacuum baking required: The electrode sheet must be vacuum baked at 100°C for 12 hours before use, demanding dedicated oven time and careful scheduling in laboratory workflows.
- Single-sided coating limitation: The single-sided coating on a 120×120 mm substrate restricts electrode design flexibility, particularly for cells requiring double-sided or larger-area electrodes.
