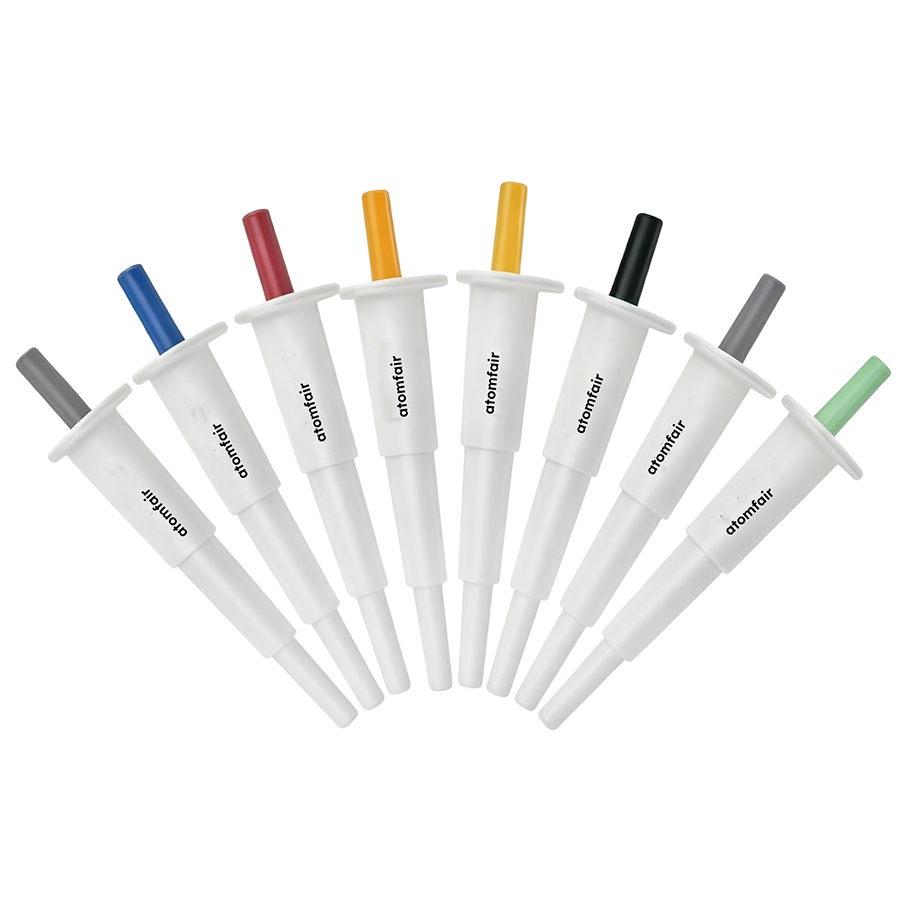

ATOMFAIR® 200 uL mini pipettes aligned for an operational workflow during biochemical reagent preparation.

Mini Single-Channel Pipette 200 μL ISO 8655-2 ATOMFAIR®

$2.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Fixed-volume 200 μL single-channel mini pipette with ISO 8655-2 calibration reference, ±0.80 μL systematic and ±0.40 μL random error. Order now.

SKU: AF-EI-L-MINP-N200-SC00
Category: ,
Tags:
Brands:

Description

Mini Pipette Single-channel 200 µL Pipette

Product Type: Fixed-volume mini pipette
Research-grade liquid handling platform

Product Overview

Mini Pipette Single-channel 200 µL Pipette is a fully autoclavable manual pipette for accurate microliter liquid handling in research, quality-control and teaching laboratories. The 200 µL range supports single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer where repeatability, stable tip fit and traceable calibration data are important.

Select this model according to its single-channel format, 200 µL working range, Fixed volume increment, compatible tips and sterilization requirements. The technical specifications list the order model, product family, test volumes, systematic error, random error and calibration reference for procurement, method setup and routine performance review.

Key Features and Advantages
  • Single-channel configuration for single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer.
  • Volume range 200 µL with Fixed volume increment.
  • Sterilization suitability: Not suitable for high-temperature sterilization.
  • Systematic error and random error values are listed by test volume for calibration review.
  • Suitable for routine liquid transfer, assay setup, sample preparation and laboratory training workflows.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-LH-MINI-PIPETTE-200-µL
Product Family Mini Pipette
Channel count Single-channel
Volume range 200 µL
Increment Fixed volume
Test volume(s) 200 µL
Systematic error At 200 µL: ±0.80 µL (±0.4%)
Random error At 200 µL: ±0.40 µL (±0.2%)
Sterilization suitability Not suitable for high-temperature sterilization
Calibration reference ISO 8655-2 user calibration reference indicated in the technical table
Technical table note Fixed-volume pipette technical table
Configuration Support: Confirm compatible tips, calibration requirements, sterilization needs and laboratory workflow before ordering.
Technical Support: For method-specific volume matching, calibration planning, accessory compatibility or bulk laboratory configuration, contact the Atomfair technical sales team.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching, platform selection or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

This fixed-volume manual pipette requires calibration per ISO 8655-2 with specified systematic and random error limits. It must be used with compatible pipette tips and must not be subjected to high-temperature sterilization.

  • Calibration Requirements: Calibrate the pipette according to ISO 8655-2 using the test volume of 200 µL to maintain systematic error within ±0.80 µL and random error within ±0.40 µL.
  • Tip Compatibility: Use only tips validated for 200 µL fixed-volume pipettes to ensure accurate liquid handling and stable tip fit during aspiration and dispensing.
  • Sterilization Limitations: Do not autoclave or expose to high-temperature sterilization; use only low-temperature disinfection methods compatible with the pipette materials.
  • Volume Fixed Constraint: The pipette delivers a fixed 200 µL volume and cannot be adjusted; verify that this fixed volume matches the application's required transfer volume.

What are the systematic and random error specifications for the Atomfair Mini Pipette 200 µL at its test volume?

At the 200 µL test volume, the systematic error is ±0.80 µL (±0.4%) and the random error is ±0.40 µL (±0.2%). These values are listed in the technical specifications for calibration review and method validation.

Which calibration standard governs the performance specifications of the Atomfair Mini Pipette 200 µL?

The pipette’s performance specifications reference ISO 8655-2 as the user calibration standard. This ensures traceable calibration data for procurement, method setup, and routine performance review in research and QC laboratories.

Can the Atomfair Mini Pipette 200 µL be sterilized by autoclaving?

No. Although the product overview describes it as a fully autoclavable manual pipette, the technical specifications clearly state it is not suitable for high-temperature sterilization. Users should avoid autoclaving and instead use alternative sterilization methods compatible with the pipette's materials.

This fixed-volume 200 µL single-channel pipette offers systematic error of ±0.80 µL and random error of ±0.40 µL at 200 µL, making it suitable for routine liquid transfer and PCR setup. However, it is not autoclavable and lacks volume adjustment flexibility.

Positive

  • Single-channel precision for routine workflows: The single-channel configuration enables precise and repeatable liquid handling for single-tube sample preparation, reagent addition, serial dilution, PCR/qPCR setup, and routine analytical transfer.
  • Traceable calibration with ISO 8655-2 reference: Systematic error (±0.80 µL) and random error (±0.40 µL) at 200 µL are listed with a calibration reference to ISO 8655-2, supporting method validation and performance review.

Trade-offs

  • Not suitable for high-temperature sterilization: The pipette is explicitly marked as unsuitable for high-temperature sterilization, requiring alternative low-temperature disinfection methods that may limit decontamination options in some laboratory protocols.
  • Fixed volume restricts application flexibility: The fixed-volume increment (200 µL only) eliminates volume adjustability, which limits its use to applications requiring exactly 200 µL and prevents adaptation to varying sample volumes without additional pipettes.
