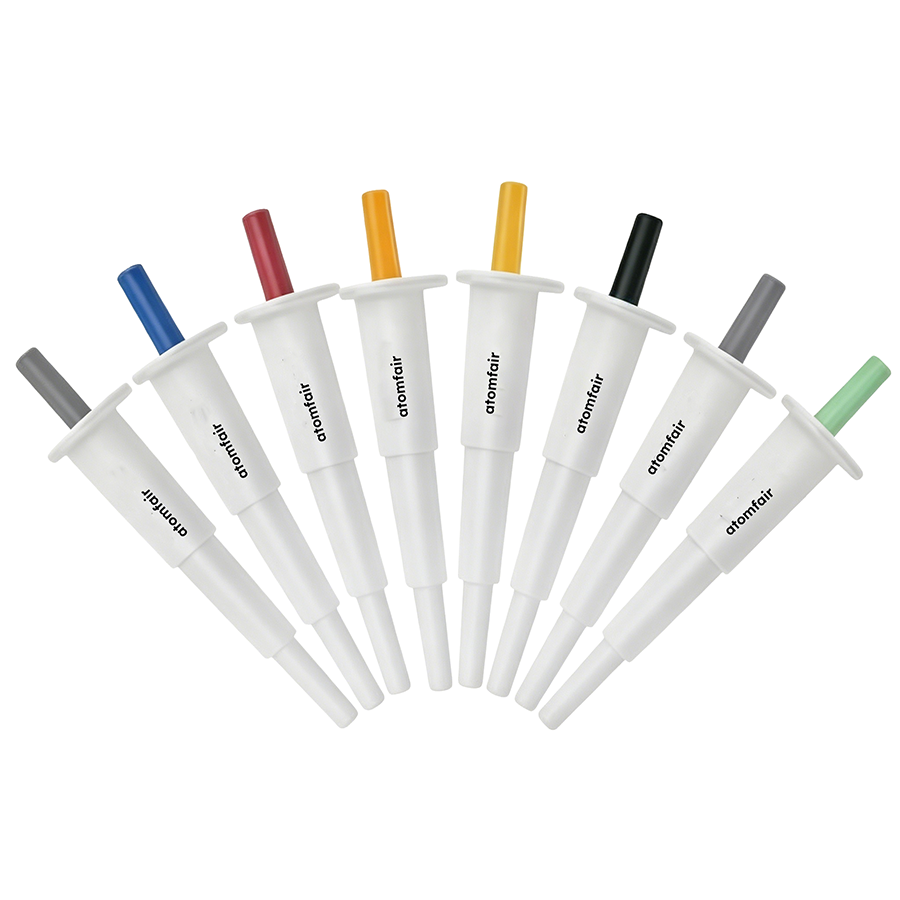

ATOMFAIR® Mini Pipette single-channel 10 uL fixed-volume pipette for micro-volume liquid handling in laboratory workflows.

Mini Pipette 10 µL Fixed-Volume Single-Channel ATOMFAIR®

$2.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Fixed-volume 10 µL single-channel mini pipette with ISO 8655-2 calibration reference, ±0.08 µL error at 10 µL, for PCR/qPCR setup. Order now.

SKU: AF-EI-L-MINP-F010-SC00
Category: ,
Tags:
Brands:

Description

Mini Pipette Single-channel 10 µL Pipette

Product Type: Fixed-volume mini pipette
Research-grade liquid handling platform

Product Overview

Mini Pipette Single-channel 10 µL Pipette is a fully autoclavable manual pipette for accurate microliter liquid handling in research, quality-control and teaching laboratories. The 10 µL range supports single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer where repeatability, stable tip fit and traceable calibration data are important.

Select this model according to its single-channel format, 10 µL working range, Fixed volume increment, compatible tips and sterilization requirements. The technical specifications list the order model, product family, test volumes, systematic error, random error and calibration reference for procurement, method setup and routine performance review.

Key Features and Advantages
  • Single-channel configuration for single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer.
  • Volume range 10 µL with Fixed volume increment.
  • Sterilization suitability: Not suitable for high-temperature sterilization.
  • Systematic error and random error values are listed by test volume for calibration review.
  • Suitable for routine liquid transfer, assay setup, sample preparation and laboratory training workflows.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-LH-MINI-PIPETTE-10-µL
Product Family Mini Pipette
Channel count Single-channel
Volume range 10 µL
Increment Fixed volume
Test volume(s) 10 µL
Systematic error At 10 µL: ±0.08 µL (±0.8%)
Random error At 10 µL: ±0.08 µL (±0.8%)
Sterilization suitability Not suitable for high-temperature sterilization
Calibration reference ISO 8655-2 user calibration reference indicated in the technical table
Technical table note Fixed-volume pipette technical table
Configuration Support: Confirm compatible tips, calibration requirements, sterilization needs and laboratory workflow before ordering.
Technical Support: For method-specific volume matching, calibration planning, accessory compatibility or bulk laboratory configuration, contact the Atomfair technical sales team.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching, platform selection or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

This fixed-volume pipette is not autoclavable and requires calibration per ISO 8655-2. Tip compatibility must be verified to ensure proper fit and measurement accuracy.

  • Sterilization Constraint: This pipette is not suitable for high-temperature sterilization; therefore, only low-temperature decontamination methods should be used.
  • Calibration Requirement: The device must be calibrated per ISO 8655-2 user calibration reference to maintain systematic and random error specifications.
  • Tip Compatibility: Compatible tips must be confirmed prior to use to prevent leakage or inaccurate volume delivery.

What are the accuracy limitations of using a fixed-volume 10 µL pipette compared to an adjustable pipette for applications requiring variable volumes?

The fixed-volume pipette delivers high repeatability at exactly 10 µL with a systematic error of ±0.08 µL (±0.8%) and random error of ±0.08 µL (±0.8%) at that single test volume, but it cannot be adjusted for other volumes. For variable-volume workflows, an adjustable pipette is required, though its error profile may differ at non-nominal set points.

Can the 10 µL fixed-volume mini pipette be used for PCR or qPCR setup, and what sterilization limitations apply?

Yes, the pipette is suitable for PCR and qPCR setup as stated in the product overview. However, it is not suitable for high-temperature sterilization, so aseptic workflows must rely on alternative sterilization methods such as chemical disinfection or UV treatment, or use of sterile filtered tips only.

What calibration checks are required for the Atomfair 10 µL fixed-volume mini pipette to maintain ISO 8655-2 compliance?

Per the ISO 8655-2 user calibration reference indicated in the technical table, users should perform routine gravimetric verification at the fixed test volume of 10 µL, comparing measured systematic and random error against the specified ±0.08 µL (±0.8%). Calibration planning should account for environmental conditions and regular maintenance schedules.

The Atomfair Mini Pipette Single-channel 10 µL is a fixed-volume manual pipette with specified accuracy of ±0.8% at 10 µL, ISO 8655-2 calibration, but lacks autoclavability and offers no volume adjustment flexibility.

Positive

  • Specified accuracy at 10 µL: Systematic and random errors are both ±0.08 µL (±0.8%) at 10 µL, providing traceable performance for quantitative liquid handling.
  • ISO 8655-2 calibration reference: Calibration follows ISO 8655-2, enabling laboratory compliance and method validation.

Trade-offs

  • Not autoclavable: The pipette is not suitable for high-temperature sterilization, requiring alternative decontamination methods such as chemical disinfection.
  • Fixed volume only: The pipette operates at a single fixed volume of 10 µL, limiting its use to applications requiring exactly that volume.
