ATOMFAIR® Mi-Pette single-channel 20-200 uL pipette for routine medium-volume transfers in laboratory workflows.

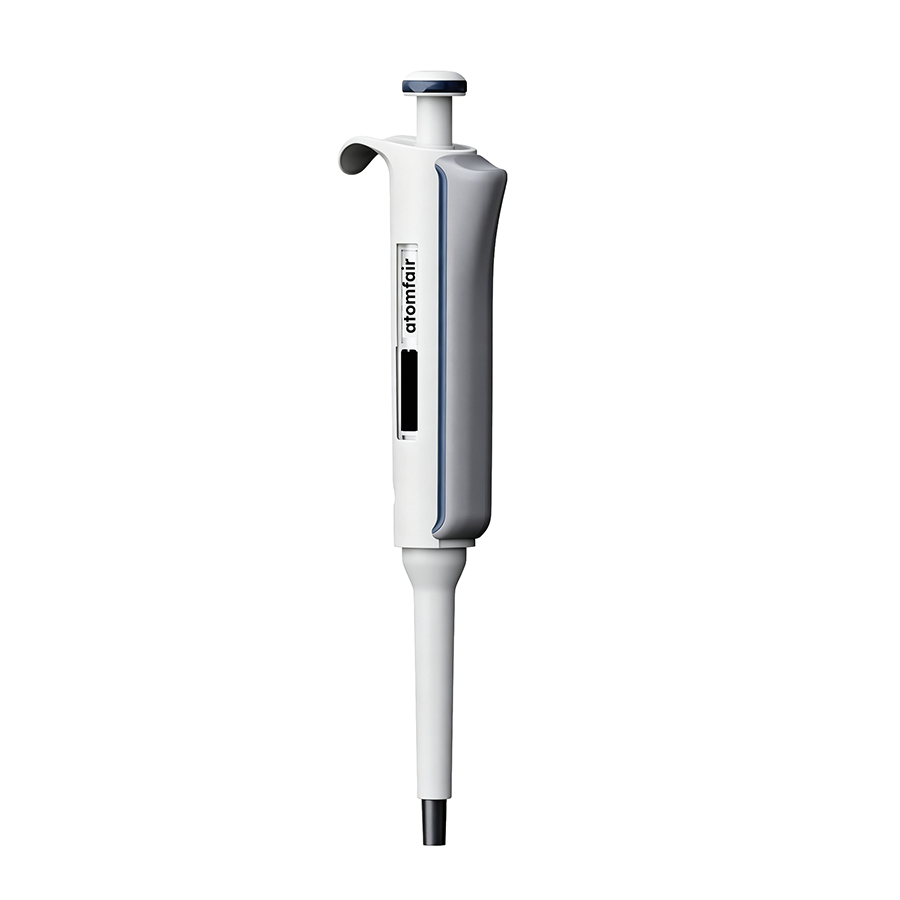

Mi-Pette Single-Channel 20-200 µL Manual Pipette ATOMFAIR®

$58.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Fully autoclavable Mi-Pette single-channel pipette, 20-200 µL with 0.2 µL increment, ISO 8655-2 calibration reference and listed error data. Order now.

SKU: AF-EI-L-MIPT-H200-SC00
Category: ,
Tags:
Brands:

Description

Mi-Pette Single-channel 20-200 µL Pipette

Product Type: Manual pipette
Research-grade liquid handling platform

Product Overview

Mi-Pette Single-channel 20-200 µL Pipette is a fully autoclavable manual pipette for accurate microliter liquid handling in research, quality-control and teaching laboratories. The 20-200 µL range supports single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer where repeatability, stable tip fit and traceable calibration data are important.

Select this model according to its single-channel format, 20-200 µL working range, 0.2 µL increment, compatible tips and sterilization requirements. The technical specifications list the order model, product family, test volumes, systematic error, random error and calibration reference for procurement, method setup and routine performance review.

Key Features and Advantages
  • Single-channel configuration for single-tube sample preparation, reagent addition, serial dilution, PCR or qPCR setup and routine analytical transfer.
  • Volume range 20-200 µL with 0.2 µL increment.
  • Sterilization suitability: High-temperature sterilization supported where indicated by source family.
  • Systematic error and random error values are listed by test volume for calibration review.
  • Suitable for routine liquid transfer, assay setup, sample preparation and laboratory training workflows.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-LH-MIPETTE-20-200-µL
Product Family Mi-Pette
Channel count Single-channel
Volume range 20-200 µL
Increment 0.2 µL
Test volume(s) 200 / 100 / 20 µL
Systematic error At 200 µL: ±1.6 µL (±0.8%); at 100 µL: ±1.6 µL (±1.6%); at 20 µL: ±1.6 µL (±8.0%)
Random error At 200 µL: ±0.6 µL (±0.3%); at 100 µL: ±0.6 µL (±0.6%); at 20 µL: ±0.6 µL (±3.0%)
Sterilization suitability High-temperature sterilization supported where indicated by source family
Calibration reference ISO 8655-2 user calibration reference indicated in the technical table
Technical table note Single-channel adjustable technical table
Configuration Support: Confirm compatible tips, calibration requirements, sterilization needs and laboratory workflow before ordering.
Technical Support: For method-specific volume matching, calibration planning, accessory compatibility or bulk laboratory configuration, contact the Atomfair technical sales team.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching, platform selection or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

This manual pipette requires calibration per ISO 8655-2 and supports high-temperature sterilization for repeated use. Compatible tips must be selected to ensure proper seal and volume accuracy.

  • Sterilization Suitability: High-temperature sterilization is supported only when confirmed by the source family; verify sterilization compatibility before autoclaving.
  • Calibration Requirement: Calibration must be performed according to ISO 8655-2 using the listed test volumes to ensure accuracy.
  • Tip Compatibility: Only compatible tips designed for 20-200 µL single-channel pipettes should be used to maintain seal and precision.

How does the systematic error of the Mi-Pette 20-200 µL pipette vary across its volume range?

The systematic error remains constant at ±1.6 µL but the relative error increases significantly at lower volumes: at 200 µL it is ±0.8%, at 100 µL it is ±1.6%, and at 20 µL it is ±8.0%. Random error also increases from ±0.3% at 200 µL to ±3.0% at 20 µL, indicating that accuracy degrades near the lower end of the range.

What calibration standard and sterilization compatibility does the Mi-Pette 20-200 µL pipette support?

The pipette is calibrated per ISO 8655-2 user calibration reference. It supports high-temperature sterilization where indicated by the source family, making it fully autoclavable. Users must confirm compatible tips and sterilization requirements before ordering.

What infrastructure is required for sterilizing the Mi-Pette 20-200 µL pipette?

The pipette requires access to a high-temperature autoclave for sterilization, as it is fully autoclavable per the source family. It is a manual pipette with no electrical or battery infrastructure needed for operation.

The Mi-Pette Single-channel 20-200 µL Pipette is a fully autoclavable manual pipette with ISO 8655-2 calibration. It provides reliable accuracy at the upper end of its range but exhibits significantly higher systematic error (up to ±8.0%) at the 20 µL test volume, making it less suitable for precise low-volume work without careful technique.

Positive

  • Fully autoclavable design: The pipette supports high-temperature sterilization, enabling aseptic handling in microbiological, PCR, and cell culture workflows without cross-contamination.
  • Good accuracy at upper range: At 200 µL, systematic error is ±0.8% and random error is ±0.3%, providing reliable performance for routine liquid transfers and assay setup at the high end of the volume range.

Trade-offs

  • Large error at low volumes: At 20 µL, systematic error reaches ±8.0% and random error ±3.0%, requiring careful calibration and technique to maintain precision in low-volume applications.
  • Manual operation consistency: As a manual pipette, results depend on user technique, plunger speed, and pre-wetting habits, which may introduce variability in multi-user laboratories.
