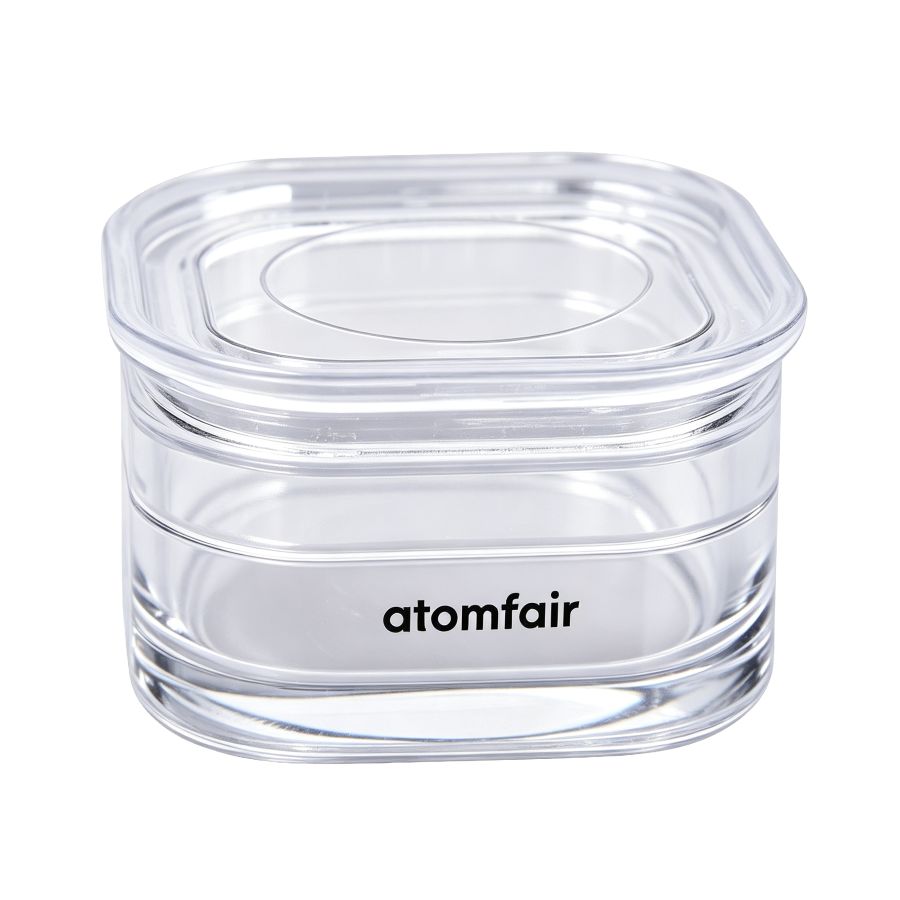

Membrane Box 51 x 51 x 25.5 mmMembrane-supported component protection
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
For custom colors, tray layout, quantity planning or shipment support, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This membrane box requires storage in a clean, dry environment away from dust, heat, and sharp objects. The component must fit within the usable inner dimensions without exerting excessive local pressure on the membrane.
- Size Compatibility: Ensure the component outline fits within the 44 x 44 x 20 mm usable inner size to avoid excessive membrane pressure.
- Environmental Storage: Store the membrane box in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface.
- Sharp Edge Handling: If the component has sharp edges or high point-load concentration, confirm suitable shell material and optional latch closure before ordering.
- Electrostatic Sensitivity: For electrostatic-sensitive components, consider the optional anti-static shell material to prevent damage.
- Closure Configuration: The standard version is non-latch; optional latch closure is available for secure retention of components.
Follow these steps to safely place and store delicate components in the membrane box. Proper handling prevents membrane damage and ensures component stability.
Required Equipment:
- Inspect Component
Inspect the component for sharp edges or high point-load concentration that could damage the membrane. - Select Configuration
Select the appropriate shell material and closure configuration based on component sensitivity and edge profile. - Place Component
Place the component into the membrane box ensuring it fits within the usable inner dimensions without excessive pressure. - Close Box
Close the box gently to avoid creating local pressure points on the membrane surface. - Store Box
Store the sealed box in a clean, dry area away from dust, heat, and sharp objects.
What are the trade-offs between the standard non-latch closure and the optional latch closure on the ATOMFAIR membrane box?
The standard non-latch closure allows quick manual opening without mechanical fasteners, which is suitable for frequent inspection or display. The optional latch closure provides secure retention for components that may be shifted during transport or handling. The product description notes that for components with sharp edges or high point-load concentration, the suitable closure configuration should be confirmed before ordering.
What are the dimensional and shape constraints for components stored in the membrane box?
The usable inner size is 44 x 44 x 20 mm, and components must fit within these dimensions. The high-elastic membrane provides gentle non-clamping retention, but the description warns against excessive local pressure on the membrane. Therefore, components with sharp edges, irregular protrusions, or point loads may require validation to avoid damage to the film or component.
What handling and storage precautions are recommended for electrostatic-sensitive components in the ATOMFAIR membrane box?
The standard shell material is high-clarity PS, which may not provide electrostatic discharge protection. For electrostatic-sensitive components, optional anti-static shell material is listed as an available selection. The packaging instructions recommend storing the boxes in a clean, dry area away from dust, heat, and sharp objects that could damage the membrane surface.
This membrane box provides suspended non-contact protection for delicate precision components using transparent elastic films, enabling visual inspection without unpacking. The standard non-latch closure and membrane vulnerability to sharp or high-point-load components require careful part selection and optional latch or anti-static upgrades for demanding applications.
Positive
- Suspended membrane protection: The upper and lower high-elastic membranes hold the component without hard-surface contact, reducing surface rubbing, edge impact, and displacement during storage, transfer, and inspection.
- Clear visibility without unpacking: High-clarity PS shell and transparent membrane films allow full visual identification and inspection of the packed component without opening, improving workflow efficiency in lab and presentation settings.
Trade-offs
- Standard non-latch closure: The standard version is non-latching, meaning the box may open under light handling or tipping, risking component loss or exposure. An optional latch closure is available but must be specified at order.
- Membrane sensitive to sharp edges: Components with sharp edges, high point-load concentration, or electrostatic sensitivity may damage the membrane or require custom shell material and closure configuration, as noted in the product warning.
