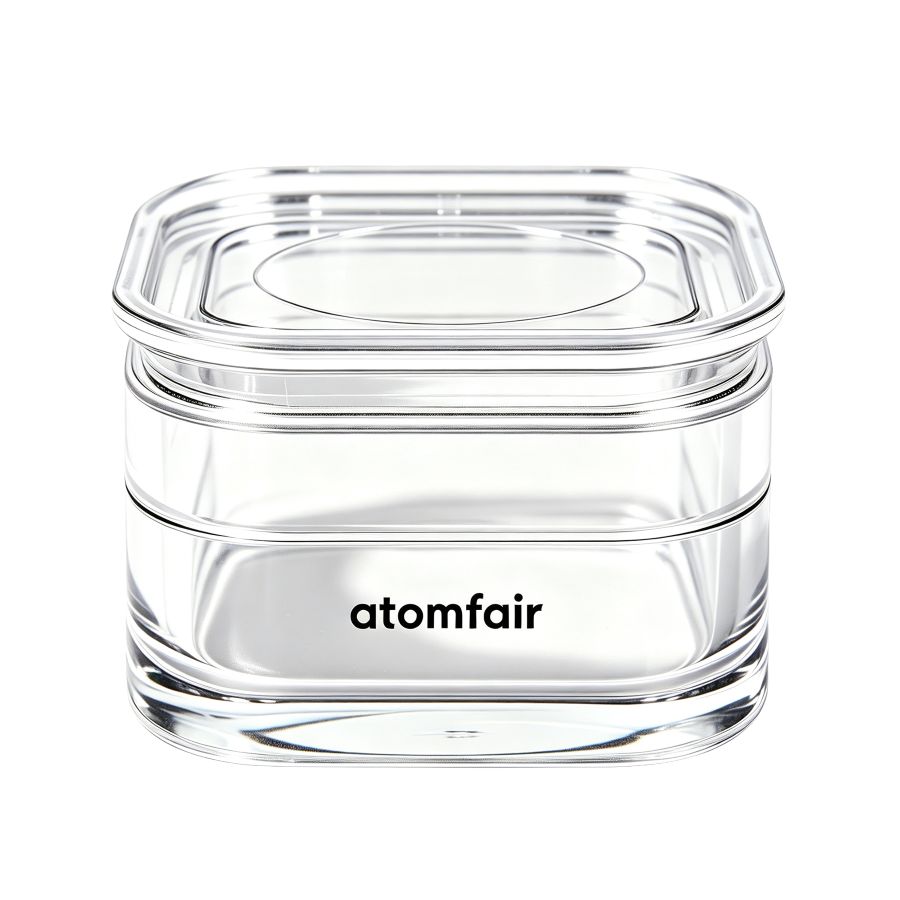

ATOMFAIR® Membrane Box AF-MB-150100 for non-clamping delicate component storage during clean lab transfer

Membrane Box 150×150×100 mm Clear PS Shell, ATOMFAIR®

$80.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Clear PS membrane box with 150×150×100 mm outer size, 125×125×95 mm usable space, high-elastic films and 5 pcs pack for optical parts and crystals. Order now.

SKU: AF-EI-A-MBOX-1500-N005
Category:
Tags:
Brands:

Description

Membrane Box 150 x 150 x 100 mm

Membrane-supported component protection

Product Overview

This membrane box is made with upper and lower high-clarity PS shells and transparent high-elastic membrane films. The outer size is 150 x 150 x 100 mm, and the usable inner size is 125 x 125 x 95 mm, making it suitable for compact components that need protected suspended positioning inside a clear package.

It is designed for fragile, polished or irregular precision parts that should not be tightly clamped or placed against hard support surfaces. In storage, sample transfer, inspection and display preparation, the membrane structure helps reduce surface rubbing, edge impact and part displacement while keeping the component visible without unpacking.

Specifications
1. Model Options & Dimension Parameters
Model Outer Size Inner Size Box Format
AF-MB-150100 150 x 150 x 100 mm 125 x 125 x 95 mm Membrane box
2. Technical Specifications
Parameter Details
Product Format Transparent membrane-supported protective box for delicate components
Standard Configuration Clear shell, transparent membrane support and standard non-latch closure
Shell Material High-clarity PS
Membrane Configuration Transparent high-elastic membrane films
Structure Upper and lower two-piece shell with suspended membrane support between both sides
Retention Method Gentle non-clamping retention for fragile, polished or irregular precision parts
Recommended Components Optical parts, crystals, dental prosthetics, watches, jewelry, miniature assemblies and other delicate precision items
Pack Quantity 5 pcs
Optional Selection Anti-static shell material, custom shell color, optional latch closure, custom latch color and logo printing

Key Features and Advantages
  • Suspended membrane holding helps protect finished or sensitive surfaces from direct hard-contact support.
  • The packed component remains visible through the clear shell, which improves identification, inspection and presentation efficiency.
  • The structure is suitable for irregular or easily displaced small parts that require centered positioning during storage and transfer.
  • Compared with direct-contact packaging, this format helps reduce shifting and local impact during routine handling and packing preparation.
APPLICATION SCOPE: Optical parts, crystal samples, dental prosthetics, watches, jewelry, miniature assemblies and other small delicate precision components that require stable suspended positioning during inspection, transfer and presentation.
PACKAGING: Store in a clean, dry area away from dust, heat and sharp objects that may damage the membrane surface. Before closing the box, confirm that the component outline fits the usable inner size of 125 x 125 x 95 mm and does not create excessive local pressure on the membrane.
IMPORTANT NOTICE: The standard version of this membrane box is non-latch. Optional latch closure is available on request. If the component has sharp edges, high point-load concentration or electrostatic sensitivity, please confirm the suitable shell material and closure configuration before ordering.
TAILORED SOLUTIONS FOR RESEARCH
For custom colors, tray layout, quantity planning or shipment support, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

This membrane box requires careful handling to maintain membrane integrity and component protection. Environmental storage conditions must be clean and dry, and component fit must be verified to avoid excessive pressure on the membrane.

  • Environmental Storage: Store the membrane box in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface.
  • Component Fit Verification: Before closing the box, confirm that the component outline fits the usable inner size of 125 x 125 x 95 mm and does not create excessive local pressure on the membrane.
  • Sharp Edge Compatibility: Components with sharp edges or high point-load concentration may require custom shell material or closure configuration to prevent membrane damage.
  • Electrostatic Sensitivity: Electrostatic-sensitive components may require an anti-static shell material, which is available as an optional selection.
  • Closure Configuration: The standard version is non-latch; an optional latch closure is available for secure closure if needed.

What is the maximum component weight or surface pressure the membrane support can handle without permanent deformation?

The product description does not specify a maximum load or pressure rating for the transparent high-elastic membrane films. The membrane is designed for gentle non-clamping retention of fragile, polished, or irregular precision parts, and users must confirm that the component does not create excessive local pressure on the membrane before closing the box. For components with sharp edges or high point-load concentration, optional latch closure and suitable shell material should be confirmed with the supplier.

Can this membrane box be used for electrostatic-sensitive devices (ESD-sensitive components) without modification?

The standard version uses high-clarity PS shells and transparent high-elastic membrane films, which are not specified as anti-static. The product explicitly notes that if the component has electrostatic sensitivity, the suitable shell material and closure configuration should be confirmed before ordering. An optional anti-static shell material is available upon request, making the standard configuration unsuitable for direct ESD-sensitive use without that upgrade.

What storage and handling conditions are required to prevent membrane damage or contamination during long-term component storage?

The packaging instructions state that the membrane box should be stored in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface. The standard version is non-latch, so the closure relies on friction or fit; optional latch closure is available. Before closing, the component outline must fit the usable inner size of 125 x 125 x 95 mm to avoid excessive local pressure on the membrane.

This membrane box provides suspended non-contact protection for delicate precision components using transparent high-elastic films within a clear PS shell, enabling visual inspection without unpacking. However, the standard non-latch closure and sensitivity to sharp edges or point loads require careful component selection and optional customization.

Positive

  • Suspended membrane protection: The transparent high-elastic membrane films provide gentle non-clamping retention, reducing surface rubbing, edge impact, and part displacement for fragile, polished, or irregular precision components.
  • Clear visibility without unpacking: The high-clarity PS shell allows direct visual inspection of the packed component, improving identification, inspection, and presentation efficiency during storage and transfer.

Trade-offs

  • Standard non-latch closure: The standard version lacks a latch mechanism, which may allow accidental opening during handling; an optional latch closure is available upon request.
  • Component size and pressure constraints: The component must fit within the usable inner size of 125 x 125 x 95 mm and avoid excessive local pressure on the membrane; sharp edges or high point-load concentration may require custom shell material or closure configuration.
