Membrane Box 125 x 125 x 50.4 mm

Description

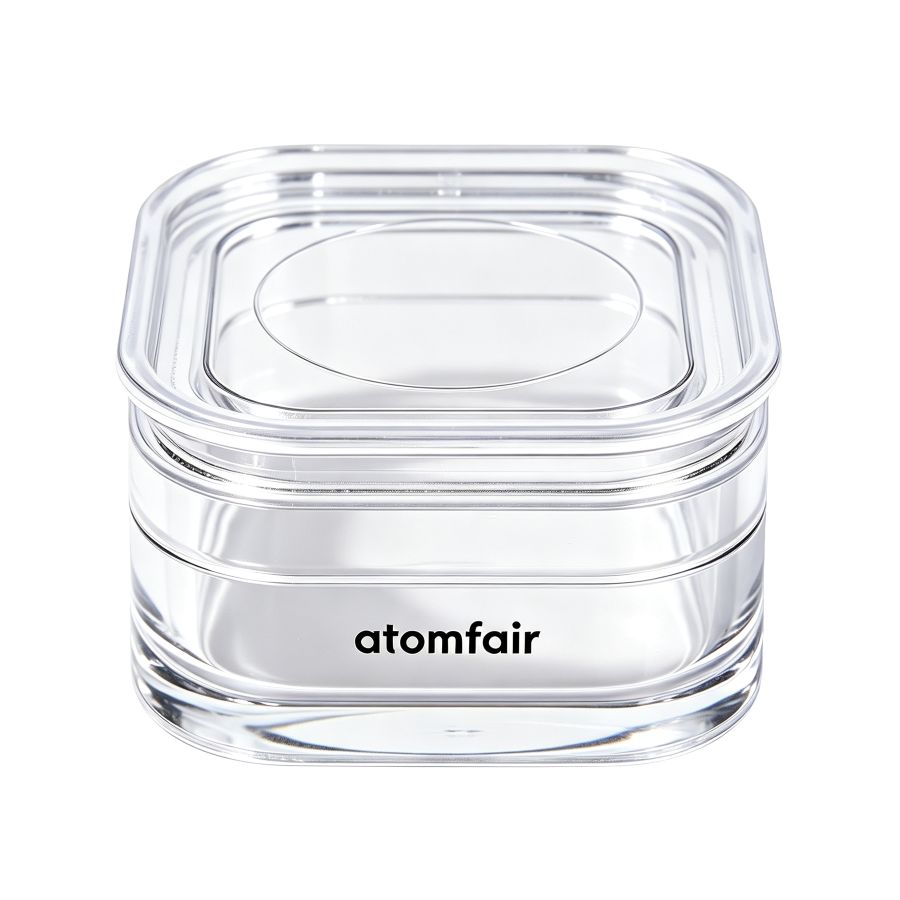

Membrane Box 125 x 125 x 50.4 mm

Membrane-supported component protection

Product Overview

This membrane box is made with upper and lower high-clarity PS shells and transparent high-elastic membrane films. The outer size is 125 x 125 x 50.4 mm, and the usable inner size is 116 x 105 x 45 mm, making it suitable for compact components that need protected suspended positioning inside a clear package.

It is designed for fragile, polished or irregular precision parts that should not be tightly clamped or placed against hard support surfaces. In storage, sample transfer, inspection and display preparation, the membrane structure helps reduce surface rubbing, edge impact and part displacement while keeping the component visible without unpacking.

Specifications

Model	Outer Size	Inner Size	Box Format
1. Model Options & Dimension Parameters
AF-MB-12550	125 x 125 x 50.4 mm	116 x 105 x 45 mm	Membrane box
2. Technical Specifications
Parameter	Details
Product Format	Transparent membrane-supported protective box for delicate components
Standard Configuration	Clear shell, transparent membrane support and standard non-latch closure
Shell Material	High-clarity PS
Membrane Configuration	Transparent high-elastic membrane films
Structure	Upper and lower two-piece shell with suspended membrane support between both sides
Retention Method	Gentle non-clamping retention for fragile, polished or irregular precision parts
Recommended Components	Optical parts, crystals, dental prosthetics, watches, jewelry, miniature assemblies and other delicate precision items
Pack Quantity	5 pcs
Optional Selection	Anti-static shell material, custom shell color, optional latch closure, custom latch color and logo printing

Key Features and Advantages

Suspended membrane holding helps protect finished or sensitive surfaces from direct hard-contact support.
The packed component remains visible through the clear shell, which improves identification, inspection and presentation efficiency.
The structure is suitable for irregular or easily displaced small parts that require centered positioning during storage and transfer.
Compared with direct-contact packaging, this format helps reduce shifting and local impact during routine handling and packing preparation.

APPLICATION SCOPE: Optical parts, crystal samples, dental prosthetics, watches, jewelry, miniature assemblies and other small delicate precision components that require stable suspended positioning during inspection, transfer and presentation.

PACKAGING: Store in a clean, dry area away from dust, heat and sharp objects that may damage the membrane surface. Before closing the box, confirm that the component outline fits the usable inner size of 116 x 105 x 45 mm and does not create excessive local pressure on the membrane.

IMPORTANT NOTICE: The standard version of this membrane box is non-latch. Optional latch closure is available on request. If the component has sharp edges, high point-load concentration or electrostatic sensitivity, please confirm the suitable shell material and closure configuration before ordering.

TAILORED SOLUTIONS FOR RESEARCH

For custom colors, tray layout, quantity planning or shipment support, contact our engineering sales team.

EMAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

Constraints

Store the membrane box in a clean, dry area away from dust, heat, and sharp objects to prevent membrane damage. Ensure the component outline fits the usable inner dimensions and does not create excessive local pressure on the membrane.

Environmental Storage: Store in a clean, dry area away from dust, heat, and sharp objects that may damage the membrane surface.
Component Size Compatibility: Confirm that the component outline fits the usable inner size of 116 x 105 x 45 mm before closing the box.
Pressure Avoidance: Avoid creating excessive local pressure on the membrane from sharp edges or high point-load concentration.
Electrostatic Sensitivity: If the component has electrostatic sensitivity, confirm suitable shell material and closure configuration before ordering.
Closure Configuration: The standard version is non-latch; optional latch closure is available for secure closure if needed.
