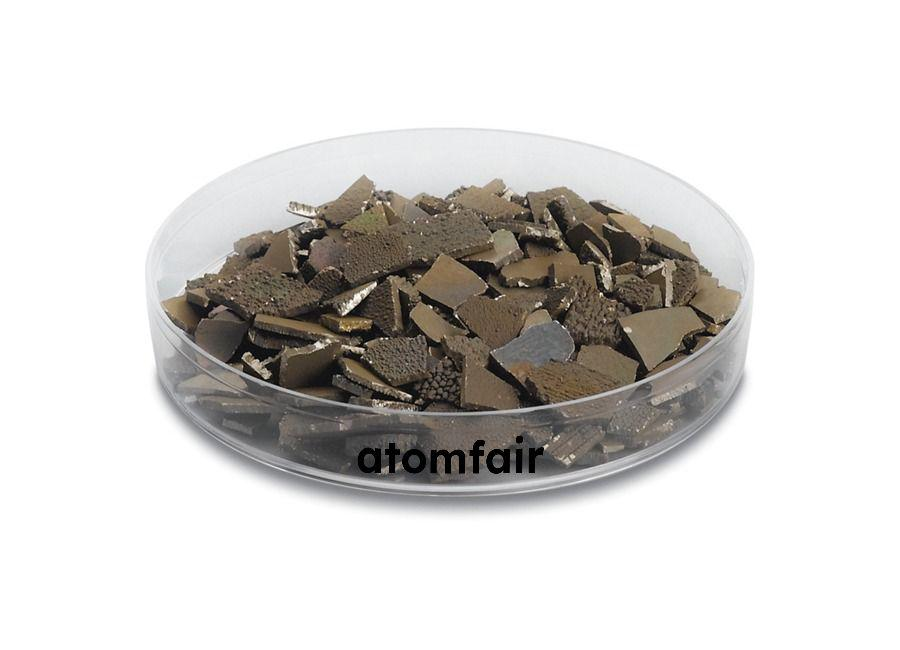

Manganese (Mn) Evaporation Material, Pieces, 99.95%, 1-3 mm
Product Type: Pure Metal Evaporation Material
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, deposition-source matching, pack-size confirmation or quotation support, contact our technical sales team.
INQUIRY: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Deposition of this manganese evaporation material requires matching the evaporation method (thermal/resistive or e-beam) and source hardware (Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth) to the material's physical properties. The melting point of 1244°C, density of 7.2 g/cm³, and Z-ratio of 0.377 must be considered for process control and film thickness monitoring.
- Evaporation Method Constraint: Select either thermal/resistive or e-beam evaporation based on film requirements and source availability.
- Source Material Compatibility: Use Mo/W/Ta boat, graphite/alumina crucible, or e-beam hearth as the evaporation source.
- Melting Point Requirement: The evaporation temperature must reach at least 1244°C to vaporize the manganese.
- Z-Ratio for Deposition Monitoring: The Z-ratio of 0.377 is required for accurate thickness monitoring using quartz crystal microbalance.
What is the Z-ratio of this manganese evaporation material and why is it important for e-beam deposition?
The Z-ratio is 0.377. This parameter is critical for accurate thickness monitoring using quartz crystal microbalance (QCM) sensors during e-beam evaporation, as it corrects for the acoustic impedance of the deposited film.
Which evaporation source materials are compatible with manganese pieces (1-3 mm)?
This manganese evaporation material is compatible with Mo/W/Ta boats, graphite or alumina crucibles, and e-beam hearths. It can be used in both thermal/resistive evaporation and e-beam evaporation systems.
What documentation is provided with this manganese evaporation material for laboratory compliance?
The product includes a certificate of analysis, safety data sheet (SDS), and shipment condition details. Buyers should review export requirements and laboratory use standards before ordering.
Manganese (Mn) evaporation material, 99.95% purity, 1-3 mm pieces. Suitable for thermal or e-beam evaporation using Mo/W/Ta boats or crucibles. Melting point 1244°C, density 7.2 g/cm³, Z-ratio 0.377. Available in 100g, 500g, 1kg packs.
Positive
- High purity 99.95%: Specified 99.95% purity ensures reproducible film stoichiometry and minimizes contamination in thin-film deposition processes.
- Defined particle size 1-3 mm: Pieces sized 1-3 mm enable consistent source loading and controlled evaporation rates for both thermal and e-beam methods.
Trade-offs
- High melting point 1244 °C: Requires compatible high-temperature evaporation sources (Mo/W/Ta boat or graphite/alumina crucible) and may limit use with lower-temperature thermal boats.
- Z-ratio 0.377 requires calibration: The Z-ratio of 0.377 necessitates process-specific thickness monitor calibration for accurate film thickness control during quartz crystal monitoring.
