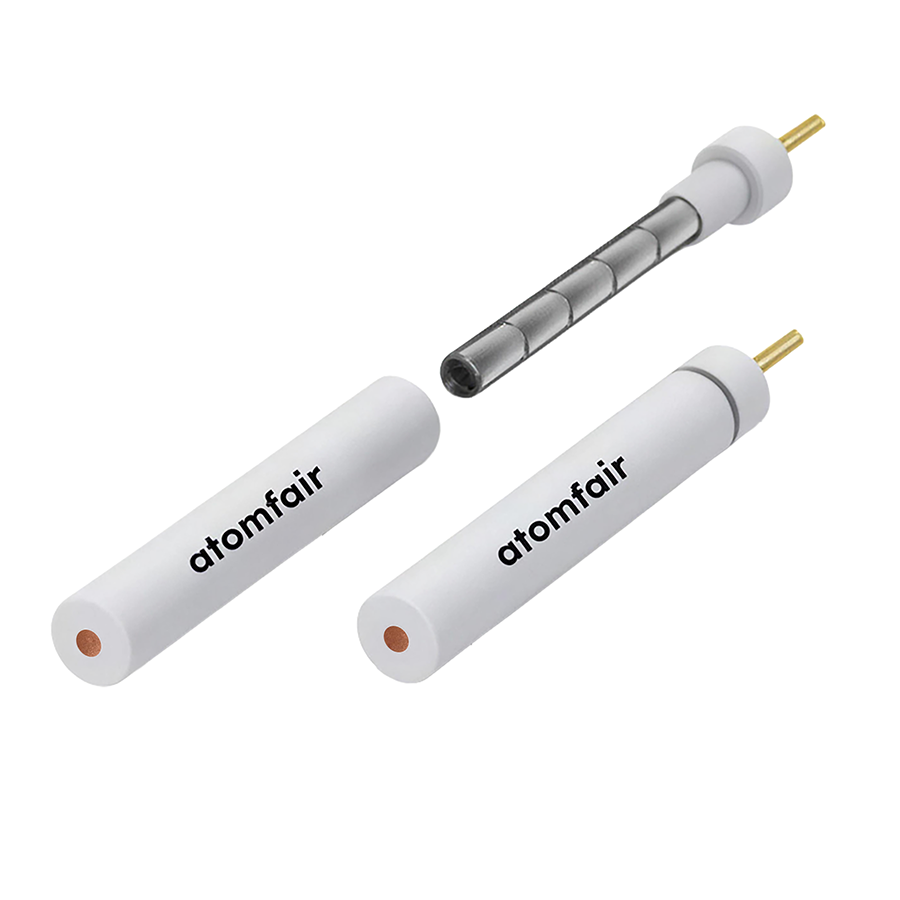

Magnetic Copper Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||
The electrode surface is highly sensitive to contamination and oxidation, requiring storage in a sealed container under anhydrous inert atmosphere. All handling steps must be performed in an inert environment to prevent phase contamination or degradation before electrochemical validation.
- Environmental sensitivity: Store the electrode in a tightly sealed container within an anhydrous inert environment to avoid moisture or oxygen exposure.
- Surface contamination: Even brief exposure to ambient air can cause surface contamination that degrades the electrochemical response.
- Magnetic attachment integrity: Ensure the magnetic base is clean and free of debris to maintain consistent electrical contact with ferromagnetic supports.
This procedure outlines the safe handling and mounting of the electrode under inert conditions to preserve surface integrity. All steps must be carried out in an anhydrous inert environment such as a glovebox.
Required Equipment: Anhydrous inert atmosphere glovebox, Clean polishing pad or abrasive paper, Ferromagnetic cell support or electrode stand
- Transfer to inert environment
Transfer the sealed container holding the electrode into an anhydrous inert atmosphere glovebox before opening. - Inspect for contamination
Visually inspect the copper disk surface for any discoloration or particulate contamination under inert conditions. - Polish the copper surface
Polish the copper disk gently with a clean polishing pad or fine abrasive paper to remove any oxide layer and restore a mirror finish. - Mount on ferromagnetic support
Place the electrode's magnetic base directly onto a clean ferromagnetic cell support or electrode stand to achieve stable electrical contact. - Connect to measurement instrument
Connect the gold-plated copper rod to the electrochemical measurement instrument lead using a compatible connector.
How does the choice of copper disk diameter (2–4 mm) affect electrochemical measurement performance?
The diameter range accommodates scales from micro-electrode sensing to macro-electrode bulk electrolysis. Smaller diameters produce higher current density for localized detection, while larger diameters deliver higher absolute currents for bulk applications. The gold-plated copper rod ensures stable conductivity across all sizes.
Can the magnetic copper working electrode be used on non-ferromagnetic cell supports?
No, the integrated magnetic base requires ferromagnetic cell supports or electrode stands for attachment and stable electrical contact. The design eliminates mechanical clamping or threaded connections, so it cannot be securely mounted on non-ferromagnetic surfaces without additional fixtures.
What storage and handling conditions are required to prevent degradation of the copper electrode surface?
The product is highly sensitive to surface contamination. It must be stored in securely sealed containers or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation. The PTFE or PEEK body provides chemical resistance, but the copper sensing surface requires protection from air and moisture.
This magnetic copper working electrode integrates a gold-plated copper conductor and PTFE/PEEK body for corrosion resistance, but demands strict surface contamination control and ferromagnetic support compatibility for reliable operation.
Positive
- Integrated magnetic mounting for rapid electrode exchange: Magnetic base eliminates mechanical clamping, enabling tool-free placement and stable electrical contact on ferromagnetic supports, reducing setup time.
- Gold-plated copper conductor with corrosion resistance: Gold-plated copper rod (1.5x15mm) provides low contact resistance and enhanced oxidation resistance, maintaining stable conductivity over extended use.
Trade-offs
- High sensitivity to surface contamination: The electrode requires storage in sealed containers or handling within an anhydrous inert environment to prevent surface degradation and ensure reliable electrochemical performance.
- Requires ferromagnetic support infrastructure: Magnetic attachment is designed exclusively for ferromagnetic cell supports or electrode stands, limiting compatibility with non-ferromagnetic laboratory hardware.
