Adjustable Magnetic Carbon Paste Electrode 2-4mm ATOMFAIR®

Magnetic Carbon Paste (Adjustable) Working Electrode Series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

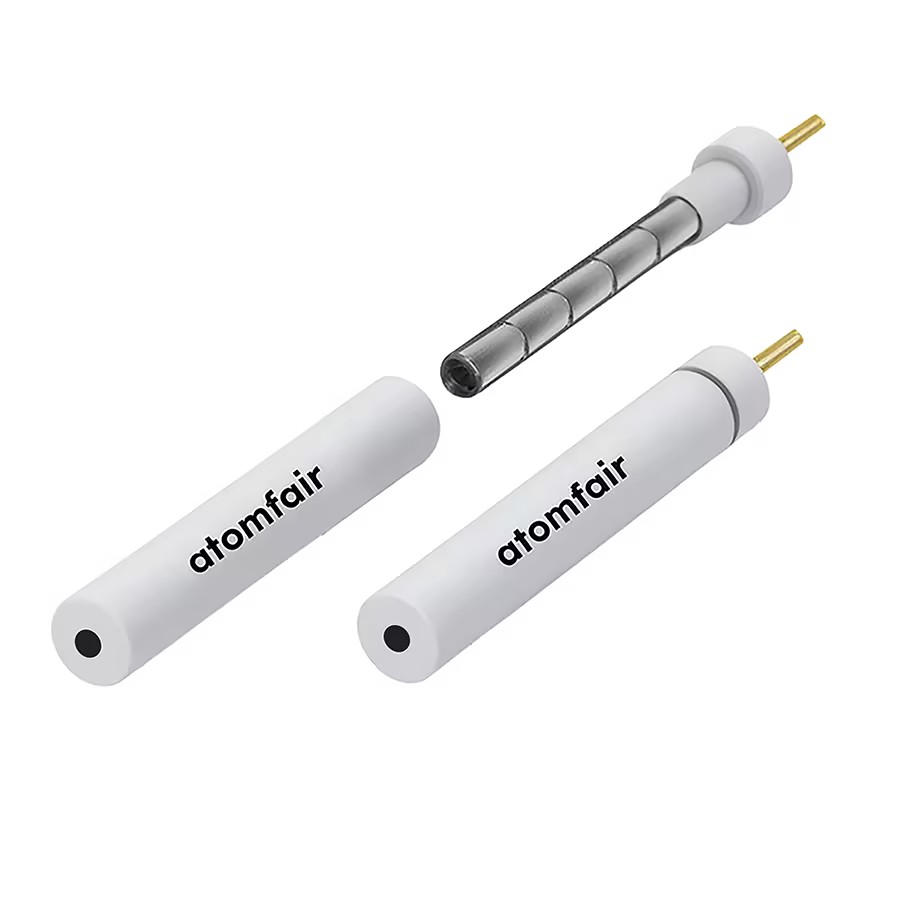

The ATOMFAIR® Magnetic Carbon Paste Working Electrode (Adjustable) integrates a high-performance carbon paste disk with adjustable composition as the active sensing surface, offering flexibility for material screening and sensor development in demanding electrochemical applications. The electrode utilizes an integrated magnetic base design for rapid attachment and stable electrical contact on ferromagnetic cell supports or electrode stands. The electrode body is manufactured from PTFE or PEEK, providing outstanding chemical resistance and electrical insulation. A gold-plated copper rod serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. This design eliminates the need for mechanical clamping or threaded connections, enabling quick electrode exchange, surface polishing, and repositioning during experiments. Available in a comprehensive range of disk diameters from 2mm to 4mm, this electrode series accommodates diverse experimental scales, from micro-electrode sensing to macro-electrode bulk electrolysis.

Technical Specifications

PARAMETER	DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry	Magnetic cylindrical configuration with integrated base
Magnetic Attachment	Integrated magnetic contact surface for ferromagnetic supports
Conductive Medium	Gold-plated copper rod
Insulative Body Material	PTFE or PEEK
2. Electrode Material Portfolio Parameters
Material	Carbon Paste
Diameter Options	2~4mm

Key Features & Advantages

Rapid Electrode Mounting: Magnetic attachment allows instant placement and removal without tools or clamping fixtures, significantly reducing setup time.
Consistent Electrical Contact: The magnetic force ensures stable, reproducible electrical connection between the electrode and the supporting structure.
Specialized Carbon Paste Material: Constructed from high-quality carbon paste composite, providing a wide potential window, low background current, and specific electrochemical characteristics suitable for sensor development, biosensor applications, and diverse redox systems.
Adjustable Design: Features a user-adjustable carbon paste configuration, allowing for facile surface renewal and electrode refilling, ensuring fresh electrode surfaces for each experiment and eliminating memory effects.
Flexible Diameter Selection: Available in 2mm to 4mm diameter range, accommodating various experimental requirements and allowing researchers to select the optimal size for their specific application.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.

PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.

IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

This electrode is highly sensitive to surface contamination and must be stored in tightly sealed containers. Handling should be performed exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.

Surface Contamination Sensitivity: The carbon paste working electrode surface is highly sensitive to contamination, requiring careful handling to avoid introducing impurities.
Sealed Storage Requirement: Containers must be kept tightly sealed when not in use to protect the electrode from ambient contaminants.
Inert Environment Handling: All handling and preparation steps should be performed in an anhydrous inert atmosphere to prevent moisture or oxygen-induced degradation.

HowTo

This procedure describes the preparation and handling of the magnetic carbon paste working electrode to ensure optimal performance. All steps must be performed in an anhydrous inert environment to prevent contamination and degradation.

Required Equipment: Inert atmosphere glovebox

Transfer to inert environment
Transfer the electrode to an anhydrous inert glovebox or enclosure before any handling.
Inspect surface
Inspect the carbon paste surface for any signs of contamination or degradation.
Renew paste surface
Renew the carbon paste surface by polishing or refilling the adjustable cavity as needed.
Mount electrode
Mount the electrode magnetically onto the ferromagnetic cell support or electrode stand.
Proceed with experiment
Proceed with electrochemical validation in the desired electrolyte system.

FAQ

What is the primary trade-off of the adjustable carbon paste working electrode for sensor development?

The adjustable carbon paste design enables facile surface renewal and eliminates memory effects, ensuring a fresh electrode surface for each experiment. However, this benefit comes with a significant handling constraint: the product is highly sensitive to surface contamination and must be kept tightly sealed or handled exclusively within an anhydrous inert environment to prevent phase contamination before use.

Can the magnetic carbon paste working electrode be integrated with any electrochemical cell setup?

No. The electrode relies on an integrated magnetic base for attachment, which requires a ferromagnetic cell support or electrode stand to maintain stable electrical contact. The PTFE or PEEK insulative body provides chemical resistance and insulation, but the magnetic coupling is specific to ferromagnetic materials, limiting compatibility to compatible supports.

What handling and storage conditions are required to prevent degradation of the carbon paste working electrode?

The carbon paste working electrode is highly sensitive to surface contamination. It must be kept in tightly sealed containers or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation prior to electrochemical validation. No other storage conditions are specified in the product documentation.

Assessment

The ATOMFAIR Magnetic Carbon Paste Working Electrode (Adjustable) offers rapid magnetic mounting and adjustable surface renewal for flexible electrochemical sensor development, but requires careful contamination control and ferromagnetic support infrastructure.

Positive

Rapid magnetic electrode mounting: Magnetic base enables tool-free attachment and removal on ferromagnetic supports, reducing setup time and ensuring stable electrical contact.
Adjustable carbon paste renewal: User-adjustable design allows facile surface renewal and refilling, preventing memory effects and ensuring fresh electrode surfaces per experiment.

Trade-offs

Sensitive to surface contamination: The carbon paste electrode is highly sensitive to contamination; must be stored in sealed containers or handled in anhydrous inert environments to avoid degradation.
Requires ferromagnetic support: The integrated magnetic base only attaches to ferromagnetic materials, limiting compatibility with non-magnetic cell supports or stands.
