Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||
This electrode requires storage in a sealed container to prevent surface contamination. Handle exclusively within an anhydrous inert environment to avoid degradation before electrochemical validation.
- Surface Contamination Sensitivity: The carbon steel surface is highly sensitive to contamination and must be protected from ambient exposure.
- Inert Environment Requirement: The electrode must be transferred to an anhydrous inert environment prior to use.
- Ferromagnetic Support Compatibility: The magnetic base requires a ferromagnetic cell support for stable attachment and electrical contact.
This procedure describes the safe handling and mounting of the electrode to prevent contamination. Follow these steps to ensure stable electrical contact and reliable electrochemical measurements.
Required Equipment: Anhydrous inert environment (e.g., glovebox), Ferromagnetic cell support, Potentiostat with connecting lead
- Transfer container to inert environment
Transfer the sealed electrode container into an anhydrous inert environment. - Remove electrode from container
Remove the electrode from its sealed container within the inert environment. - Mount electrode on support
Mount the electrode onto a ferromagnetic cell support via the integrated magnetic base. - Connect potentiostat lead
Connect the potentiostat lead to the gold-plated copper rod of the electrode.
How does the choice of disk diameter (2 mm vs 5 mm) affect current density and measurement scale for carbon steel corrosion studies?
The 2 mm diameter is designed for micro-electrode sensing, producing higher current density suitable for localized corrosion measurements, while the 5 mm diameter targets macro-electrode bulk electrolysis with higher absolute current but lower current density. The product overview explicitly states the series accommodates 'diverse experimental scales, from micro-electrode sensing to macro-electrode bulk electrolysis' across the 2–5 mm range.
Is the magnetic base of this working electrode compatible with standard ferromagnetic cell supports, and what surface conditions are required for stable electrical contact?
Yes, the magnetic base is designed specifically for ferromagnetic supports such as electrode stands and cell bases. The source states the magnetic force provides 'stable, reproducible electrical connection' and eliminates mechanical clamping. For optimal contact, the support surface should be clean, flat, and free of non-magnetic coatings to maximize magnetic adhesion and minimize contact resistance.
What storage and handling procedures are recommended to prevent surface contamination or degradation of the carbon steel working electrode before use?
The product is highly sensitive to surface contamination. The source instructs to 'keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.' Storage must be in the provided sealed protective containers, and any handling should be performed under inert gas (e.g., argon or nitrogen) to maintain surface integrity.

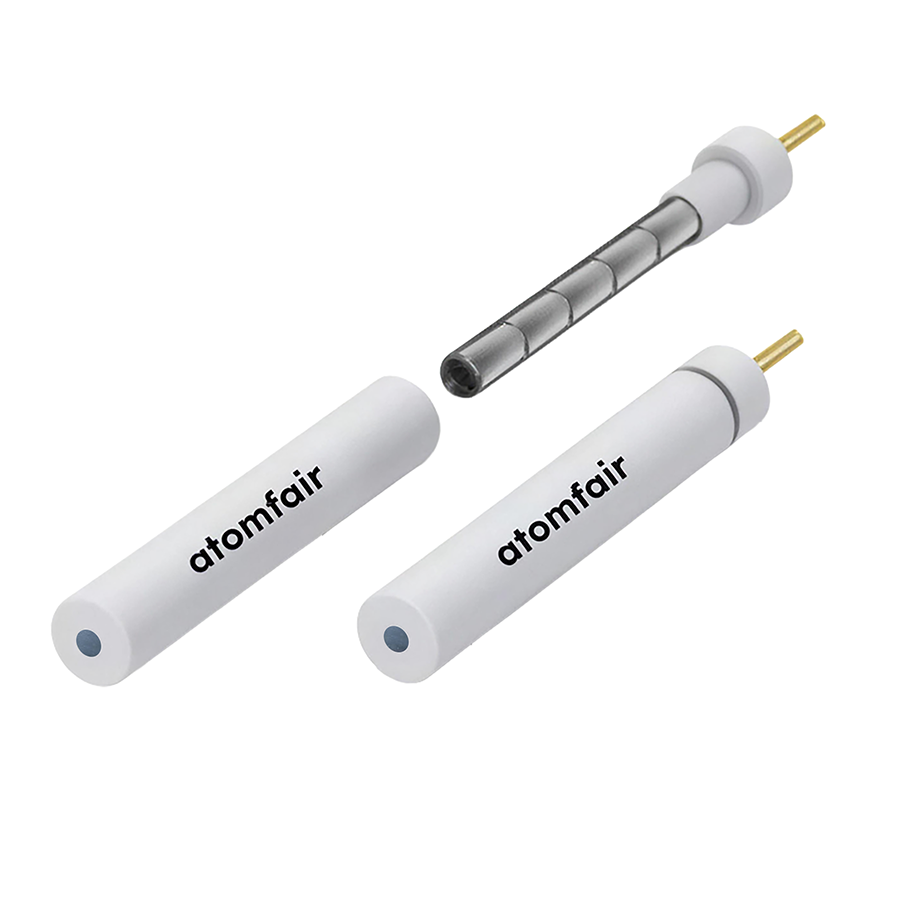

The ATOMFAIR Magnetic Carbon Steel Working Electrode integrates a carbon steel disk with a magnetic base for rapid mounting on ferromagnetic supports, featuring a gold-plated copper rod for corrosion-resistant conductivity. Its primary constraints are sensitivity to surface contamination and the requirement for a ferromagnetic mounting surface.
Positive
- Magnetic mounting for rapid setup: Magnetic attachment enables instant placement and removal without tools, reducing setup time and ensuring stable, reproducible electrical contact on ferromagnetic supports.
- Gold-plated copper rod corrosion protection: The gold-plated copper rod (1.5x15mm) provides enhanced oxidation resistance and maintains stable conductivity over extended use, protecting the electrical contact from degradation.
Trade-offs
- Sensitive to surface contamination: The product is highly sensitive to surface contamination; containers must be kept tightly sealed or handled exclusively in an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
- Requires ferromagnetic mounting surface: The magnetic base design is specifically intended for attachment to ferromagnetic cell supports or electrode stands, limiting compatibility with non-ferromagnetic surfaces.
