Vacuum Release Tray 400 Grid Ultra-Low Adhesion ATOMFAIR®

Vacuum Release Tray 400 Grid Ultra-Low Adhesion ATOMFAIR®

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade lid-type vacuum release tray with 400-grid 20×20 array, ultra-low adhesion, conductive tray, and default white 16 mesh. Order now.

SKU: AF-EI-A-LVRT-400U-CB00-PARENT
Category:
Brands:

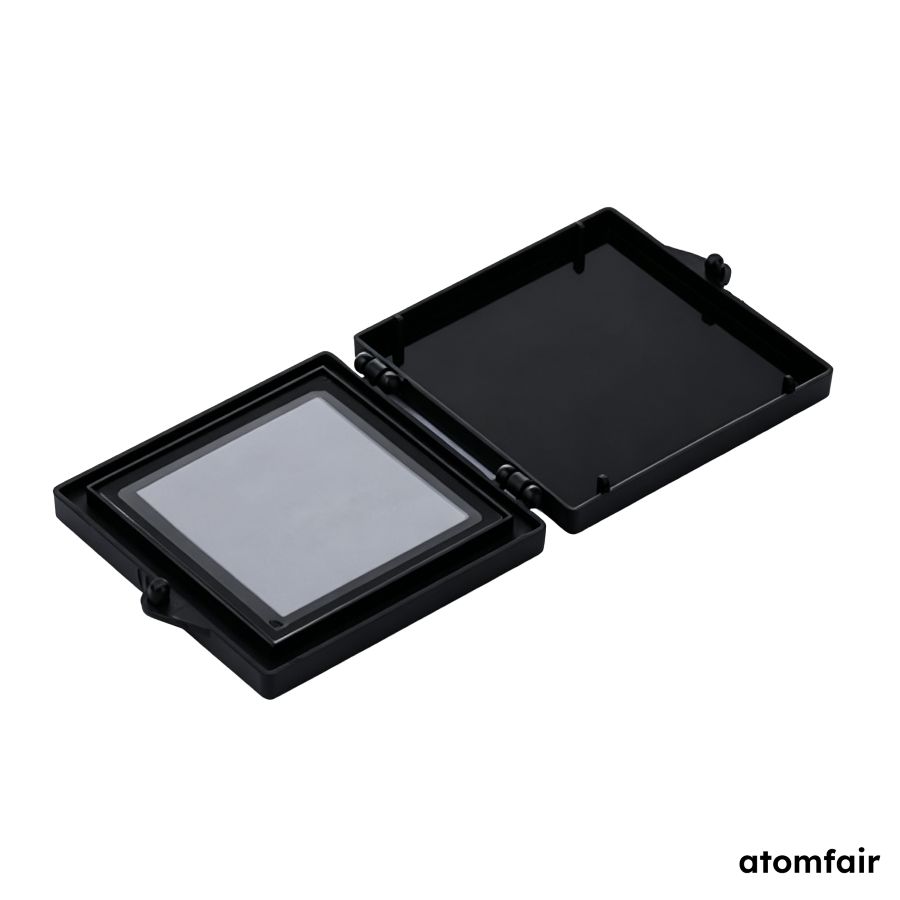

LID-TYPE VACUUM RELEASE TRAY 400 GRID ULTRA-LOW ADHESION,5pcs

RESEARCH GRADE MATERIAL

Product Overview
The atomfair lid-type vacuum release tray is specifically engineered for critical research environments demanding high-purity, contamination-free, and cross-contamination-proof sample containment alongside meticulous microscopic particulate regulation. This specific configuration features a precision-molded 20×20 Grid Array matrix combined with an advanced Ultra-low surface energy adhesive platform. It is custom-designed to prevent micro-shifting or structural dislodgement during rigorous transport, while simultaneously eliminating microscopic surface residue, adhesive transfer, or localized stress marks upon sample detachment. This non-destructive preservation platform is critical for advanced materials processing, quantum device fabrication, and delicate structural analysis across national frameworks and multi-disciplinary university core labs.

Technical Specifications

PARAMETER DETAILS
1. Core Specification Profile
Grid Configuration 400 Grid (20×20 Array, 1.52×1.44 mm Compartments)
Adhesion Level Ultra-low Adhesion
2. Material Configurations & Ordering Codes
Model: AF-VRB-400XL-CB ESD-safe full-black lid + conductive black tray + black insert
Model: AF-VRB-400XL-CC Conductive full-black lid + conductive black tray + black insert
Model: AF-VRB-400XL-CT ESD-safe clear lid + conductive black tray + clear insert
3. Mesh Selection Matrix
Default Mesh Specification White 16 Mesh
Available Mesh Densities 16 Mesh / 33 Mesh / 76 Mesh / 103 Mesh / 137 Mesh / 195 Mesh
Available Mesh Color Options Standard White Mesh / Yellow Mesh
Ordering Remark Guide If you need to purchase alternative mesh colors or densities, please explicitly state your specific requirements in the order remarks section during checkout.

Key Features & Advantages
  • Precise 20×20 Matrix Isolation: The orthogonal 400-grid configuration facilitates systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
  • Ultra-Low Residue Surface Energy: Specially structural elastomer allows reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
  • Comprehensive ESD Protection: Integrated anti-static matrices and premium conductive polymer backings provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions.
  • Vacuum & Structural Integrity: Engineered with premium chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

APPLICATION SCOPE: Highly recommended for quantum optics (qubit chips), materials science (2D films, graphene, nanomaterials), semiconductor R&D (MEMS, bare dies, compound wafers), and specialized biotechnology biosensor microfluidic arrays.
PACKAGING: Contains 5 × atomfair lid-type vacuum release tray (400 Grid / Ultra-low Adhesion), 1 × cleanroom compliance certificate, and shock-absorbent shells. Double-vacuum bag sealed under dry inert nitrogen gas atmosphere to guarantee zero contamination during transport.
IMPORTANT ORDERING NOTICE: The default baseline configuration provided is white 16 mesh. If your project mandates alternative mesh counts (33, 76, 103, 137, or 195) or a yellow mesh configuration, please explicitly state your specific color and density requirements within the order remarks field during checkout confirmation.
SYSTEM REQUIREMENT: To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This vacuum release tray requires a compatible vacuum station and pump system to activate the release mode for sample removal. The tray must be handled in a clean, dry environment to preserve its ultra-low adhesion and contamination-free properties.

  • System Requirement: The vacuum release tray must be used with a compatible vacuum station and vacuum pump to activate the release mode.
  • Environmental Handling: Open the sealed packaging only in a clean, dry environment to prevent contamination of the tray surface.

How does the ultra-low adhesion level of the Atomfair lid-type vacuum release tray balance sample retention during transport with non-destructive detachment for sensitive materials?

The ultra-low adhesion platform uses a specially structural elastomer to provide reliable anchor hold during transport, preventing micro-shifting or structural dislodgement, while enabling non-destructive sample detachment without residue, adhesive transfer, or localized stress marks. This is critical for preserving thin films, quantum device chips, or 2D materials during handling.

What vacuum system infrastructure is required to use the release mode of this tray, and are there specific compatibility requirements?

To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system. The product description explicitly links to the Atomfair Laboratory Precision Vacuum Release Station and Laboratory Precision Vacuum Pump, indicating these are the required supporting components.

How is the Atomfair lid-type vacuum release tray packaged and stored to ensure contamination-free delivery for cleanroom and research applications?

The tray is packaged in a double-vacuum bag sealed under dry inert nitrogen gas atmosphere, including a cleanroom compliance certificate and shock-absorbent shells. This guarantees zero contamination during transport, making it suitable for high-purity environments such as quantum optics, semiconductor R&D, and advanced materials processing.

This lid-type vacuum release tray offers a 400-grid ultra-low adhesion platform for non-destructive sample handling, requiring an external vacuum station for release and offering customizable mesh densities and lid configurations to suit diverse research applications.

Positive

  • Precise 20×20 Grid Array Isolation: The 400-grid configuration enables systematic cell-by-cell micro-mapping and clean optical screening for batch sample cataloging.
  • Multiple Material Configurations Available: Three lid/tray/insert combinations (ESD-safe full-black, conductive full-black, ESD-safe clear) allow matching to specific ESD protection and optical transparency needs.

Trade-offs

  • Requires External Vacuum System: The tray must be used with a compatible vacuum station and pump to activate release mode, adding infrastructure dependency.
  • Mesh Customization Must Be Ordered Explicitly: Default is white 16 mesh; alternative mesh densities (33, 76, 103, 137, 195) or yellow mesh must be specified in order remarks, limiting flexibility post-purchase.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Specification

ESD-safe full-black lid + conductive black tray + black insert 5pcs, Conductive full-black lid + conductive black tray + black insert 5pcs, ESD-safe clear lid + conductive black tray + clear insert 5pcs
