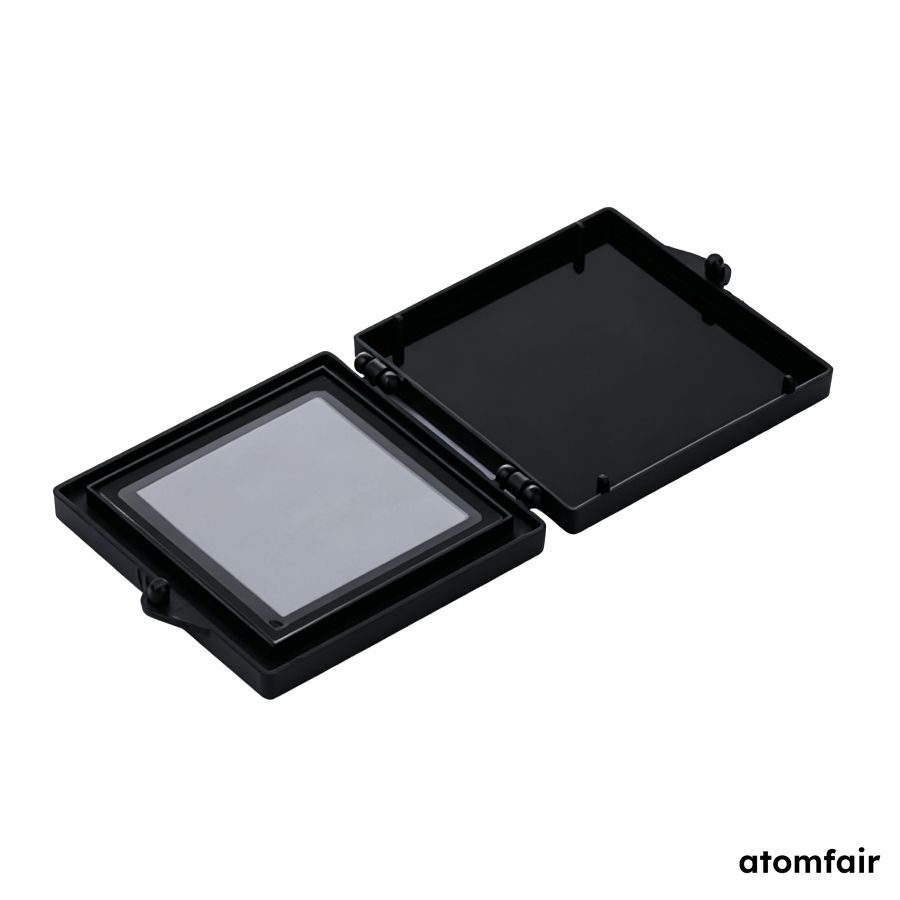

LID-TYPE VACUUM RELEASE TRAY 400 GRID MEDIUM ADHESION,5pcsRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||
This tray requires storage in a dry inert nitrogen atmosphere to prevent contamination and must be used with a compatible vacuum station and pump for sample release. Electrostatic discharge protection is mandatory to preserve sample integrity and prevent damage to the polymer components.
- Inert Atmosphere Storage: Store the tray under dry inert nitrogen gas to maintain zero contamination and prevent moisture adsorption.
- Vacuum System Requirement: Activate Release Mode only with a compatible vacuum station and vacuum pump to avoid structural failure or sample damage.
- ESD-Safe Handling: Handle the tray in an ESD-protected environment to prevent electrostatic discharge that could compromise sensitive samples.
- Cleanroom Compatibility: Use the tray in a controlled cleanroom environment to preserve the low-residue adhesive surface and avoid particulate contamination.
This procedure describes the safe and non-destructive release of samples from the medium-adhesion grid using a vacuum system. Follow these steps to avoid residue transfer or structural deformation.
Required Equipment: Compatible vacuum station, Vacuum pump, ESD-safe tweezers or handling tool
- Place tray in vacuum station
Place the loaded vacuum release tray into the compatible vacuum station, ensuring proper alignment of the release ports. - Connect vacuum pump
Connect the vacuum pump to the station's inlet and verify the seal is intact before activating the pump. - Activate release mode
Engage the release mode on the vacuum station to apply controlled negative pressure and detach samples from the adhesive grid. - Remove released samples
Using ESD-safe tweezers, gently lift each released sample from its compartment, starting from the edge to avoid distortion.
How does selecting a finer mesh density (e.g., 195 mesh) versus the default 16 mesh affect the balance between particle retention and vacuum flow in the Atomfair 400 Grid vacuum release tray?
The default white 16 mesh provides coarse particle capture with the highest vacuum flow for rapid release cycles. Selecting a finer mesh such as 195 mesh improves retention of sub-micron particulates crucial for quantum or 2D material work but reduces vacuum conductance, potentially requiring a higher-capacity pump. The product supports mesh densities from 16 to 195 mesh, and users must explicitly request alternative mesh in order remarks.
What vacuum station and pump compatibility requirements are needed to operate the Atomfair lid-type vacuum release tray for sample detachment?
The tray activates release mode only when paired with a compatible Vacuum Station and Vacuum Pump system, as specified by the manufacturer. The tray is engineered to withstand continuous outgassing and multi-cycle depressurization without dimensional warping, but optimal performance depends on matching pump flow rate and pressure to the selected mesh density and adhesion level.
What storage and handling conditions are required to preserve the contamination-free integrity of the Atomfair vacuum release tray before first use?
Each tray is double-vacuum bag sealed under dry inert nitrogen gas to guarantee zero contamination during transport. Trays should remain in the original shock-absorbent packaging and cleanroom compliance certificate bag until use. For the ESD-safe and conductive variants, storage on grounded or dissipative surfaces is recommended to maintain electrostatic protection before deployment.
This lid-type vacuum release tray with 400-grid medium adhesion platform is engineered for high-purity sample containment in quantum optics, materials science, and semiconductor R&D, offering precise isolation and non-destructive release but requiring dedicated vacuum system and explicit mesh specification.
Positive
- Precise Grid Isolation and Non-Destructive Release: The 400-grid (20×20) configuration with medium adhesion platform enables systematic sample mapping and micro-level detachment without residue or stress marks, critical for sensitive materials like 2D films and quantum devices.
- Integrated ESD Protection and Vacuum Robustness: Anti-static matrices and conductive polymer backings provide dissipative pathways to prevent electrostatic damage, while chemical-resistant components withstand continuous outgassing and multi-cycle depressurization without warping.
Trade-offs
- Requires Dedicated Vacuum Infrastructure: The vacuum release tray must be used with a compatible vacuum station and vacuum pump to activate the release mode, adding equipment dependency and laboratory setup cost.
- Mesh Configuration Must Be Specified at Order: Default mesh is white 16 mesh; alternative densities (33-195 mesh) or yellow mesh require explicit order remarks, potentially delaying procurement if not specified.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
