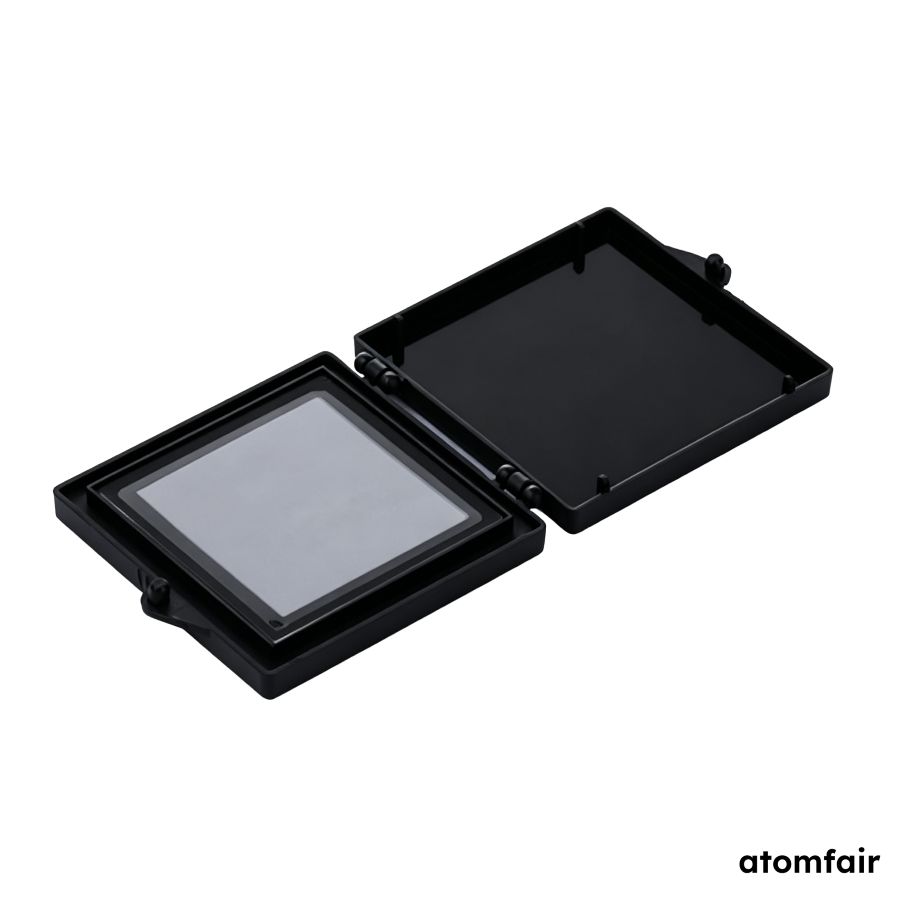

LID-TYPE VACUUM RELEASE TRAY 100 GRID MEDIUM ADHESION,5pcsRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||
This tray requires storage in its original nitrogen-sealed packaging until use to prevent contamination. It must be operated exclusively with a compatible vacuum station and vacuum pump system to achieve non-destructive sample release.
- Storage Atmosphere: Store the tray in the double-vacuum nitrogen-sealed bag to maintain zero contamination and prevent moisture absorption.
- Infrastructure Requirement: Use only with the Atomfair Vacuum Station and Vacuum Pump to activate the release mode for sample removal.
- Mesh Compatibility: Select the appropriate mesh density and color during ordering to match the particle size and visibility requirements of your application.
- ESD Handling: Handle the tray in an ESD-protected environment to prevent electrostatic discharge damage to sensitive components.
- Contamination Control: Only open the sealed packaging in a cleanroom or controlled environment to preserve the cleanroom compliance certificate conditions.
This procedure describes loading samples into the grid compartments and releasing them using vacuum. Ensure all components are clean and the vacuum system is properly connected before starting.
Required Equipment: Atomfair Vacuum Station, Atomfair Vacuum Pump
- Inspect components
Inspect the tray and vacuum station for cleanliness before use. - Load samples
Load each sample into an individual 3×3 mm grid compartment of the tray. - Position tray on station
Place the loaded tray onto the vacuum station base, aligning the release ports. - Connect vacuum pump
Connect the vacuum pump hose to the station's inlet and secure the connection. - Activate release mode
Activate the vacuum release mode to neutralize the adhesive and retrieve samples without residue.
How does the medium adhesion level of the Atomfair lid-type vacuum release tray ensure non-destructive sample release while preventing micro-shifting during transport?
The medium adhesion platform is specifically engineered with a specially structural elastomer that provides reliable anchor hold to prevent micro-shifting or structural dislodgement during rigorous transport. At the same time, its advanced surface energy design ensures non-destructive sample detachment by eliminating microscopic surface residue, adhesive transfer, or localized stress marks, making it ideal for delicate materials like thin films and quantum devices.
What external vacuum system is required to activate the release mode, and how can the mesh configuration be customized for specific research applications?
Activation of the Release Mode for sample removal requires use of a compatible Vacuum Station and Vacuum Pump system. The default mesh is white 16 mesh, but alternative densities (33, 76, 103, 137, or 195 mesh) and a yellow mesh option are available; specific color and density requirements must be explicitly stated in the order remarks during checkout.
How does the integrated ESD protection and inert gas packaging of this tray maintain sample integrity during storage and handling?
The tray incorporates integrated anti-static matrices and premium conductive polymer backings that provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions, protecting sensitive components. Furthermore, each unit is double-vacuum bag sealed under a dry inert nitrogen gas atmosphere to guarantee zero contamination during transport and storage.
This lid-type vacuum release tray with a 100-grid medium-adhesion platform is engineered for contamination-sensitive sample handling in quantum optics, 2D materials, and semiconductor R&D, requiring a compatible vacuum station and pump for release activation.
Positive
- Non-destructive sample detachment: Medium-adhesion elastomer prevents micro-shifting during transport and eliminates adhesive residue or stress marks upon release, preserving thin films and delicate device structures.
- Integrated ESD and vacuum integrity: Conductive polymer backings and anti-static matrices provide dissipative pathways to prevent electrostatic damage, while chemical-resistant components withstand multi-cycle depressurization without warping.
Trade-offs
- Requires external vacuum system: Release mode activation depends on a compatible vacuum station and pump, adding infrastructure cost and bench space requirements for lab deployment.
- Mesh customization requires order remark: Alternative mesh densities (33, 76, 103, 137, 195) or yellow mesh must be manually specified in order remarks, introducing potential for specification errors if not explicitly communicated.
