Vacuum Release Tray 100-Grid High Adhesion, ATOMFAIR®

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade lid-type vacuum release tray with 10×10 100-grid high-adhesion surface, 3×3 mm compartments, ESD/conductive options, 5 pcs. Order now.

Specification

Clear

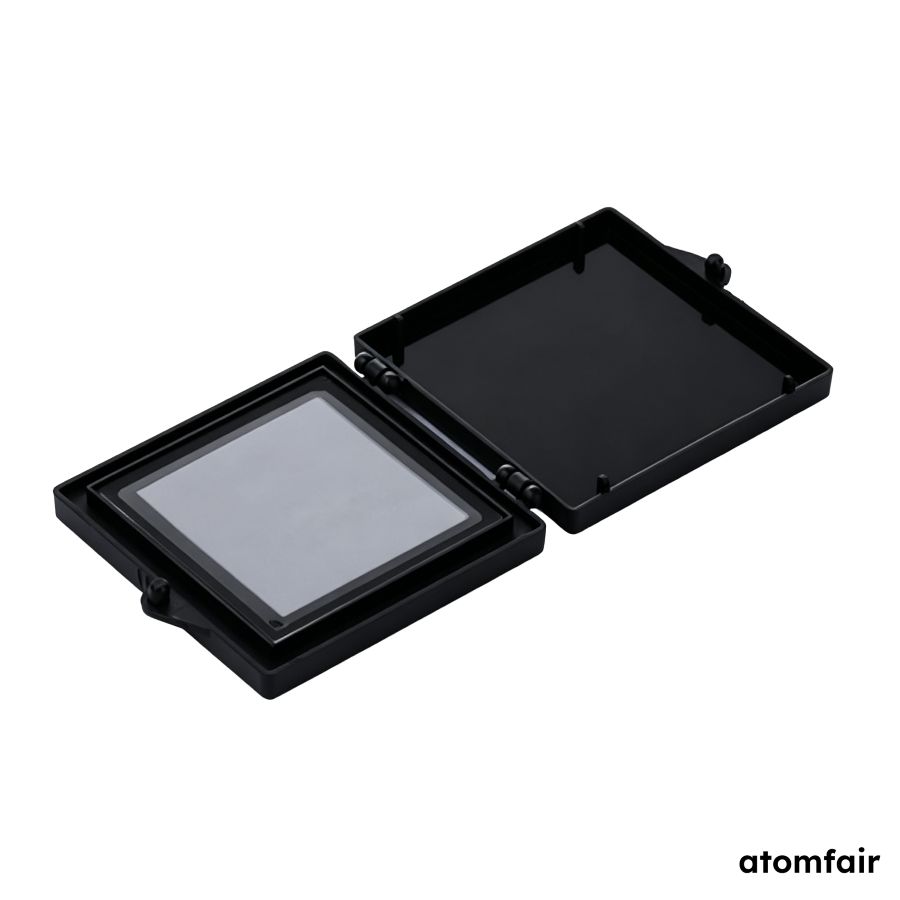

LID-TYPE VACUUM RELEASE TRAY 100 GRID HIGH ADHESION,5pcs

RESEARCH GRADE MATERIAL

Product Overview

The atomfair lid-type vacuum release tray is specifically engineered for critical research environments demanding high-purity, contamination-free, and cross-contamination-proof sample containment alongside meticulous microscopic particulate regulation. This specific configuration features a precision-molded 10×10 Grid Array matrix combined with an advanced High surface energy adhesive platform. It is custom-designed to prevent micro-shifting or structural dislodgement during rigorous transport, while simultaneously eliminating microscopic surface residue, adhesive transfer, or localized stress marks upon sample detachment. This non-destructive preservation platform is critical for advanced materials processing, quantum device fabrication, and delicate structural analysis across national frameworks and multi-disciplinary university core labs.

Technical Specifications

PARAMETER	DETAILS
1. Core Specification Profile
Grid Configuration	100 Grid (10×10 Array, 3×3 mm Compartments)
Adhesion Level	High Adhesion
2. Material Configurations & Ordering Codes
Model: AF-VRB-100H-CB	ESD-safe full-black lid + conductive black tray + black insert
Model: AF-VRB-100H-CC	Conductive full-black lid + conductive black tray + black insert
Model: AF-VRB-100H-CT	ESD-safe clear lid + conductive black tray + clear insert
3. Mesh Selection Matrix
Default Mesh Specification	White 16 Mesh
Available Mesh Densities	16 Mesh / 33 Mesh / 76 Mesh / 103 Mesh / 137 Mesh / 195 Mesh
Available Mesh Color Options	Standard White Mesh / Yellow Mesh
Ordering Remark Guide	If you need to purchase alternative mesh colors or densities, please explicitly state your specific requirements in the order remarks section during checkout.

Key Features & Advantages

Precise 10×10 Matrix Isolation: The orthogonal 100-grid configuration facilitates systematic cell-by-cell micro-mapping, clean optical screening, and efficient batch sample cataloging.
High Residue Surface Energy: Specially structural elastomer allows reliable anchor hold while ensuring micro-level non-destructive sample detachment, preventing thin-film peeling or device deformation.
Comprehensive ESD Protection: Integrated anti-static matrices and premium conductive polymer backings provide immediate dissipative pathways to eliminate high-voltage electrostatic field disruptions.
Vacuum & Structural Integrity: Engineered with premium chemical-resistant components to withstand continuous outgassing and multi-cycle depressurization without dimensional warping.

APPLICATION SCOPE: Highly recommended for quantum optics (qubit chips), materials science (2D films, graphene, nanomaterials), semiconductor R&D (MEMS, bare dies, compound wafers), and specialized biotechnology biosensor microfluidic arrays.

PACKAGING: Contains 5 × atomfair lid-type vacuum release tray (100 Grid / High Adhesion), 1 × cleanroom compliance certificate, and shock-absorbent shells. Double-vacuum bag sealed under dry inert nitrogen gas atmosphere to guarantee zero contamination during transport.

IMPORTANT ORDERING NOTICE: The default baseline configuration provided is white 16 mesh. If your project mandates alternative mesh counts (33, 76, 103, 137, or 195) or a yellow mesh configuration, please explicitly state your specific color and density requirements within the order remarks field during checkout confirmation.

SYSTEM REQUIREMENT: To activate the Release Mode for sample removal, this vacuum release tray must be used in conjunction with a compatible Vacuum Station and Vacuum Pump system.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR^®

This tray requires a compatible vacuum station and pump to activate release mode for sample removal, and must be handled under cleanroom conditions to prevent contamination. The packaging under dry inert nitrogen ensures zero contamination during transport, but the tray must be kept sealed until use.

Vacuum System Compatibility: The tray's release mode requires connection to a compatible Vacuum Station and Vacuum Pump system, which are sold separately.
Contamination Control: The tray is double-vacuum bag sealed under dry inert nitrogen gas to guarantee zero contamination, and must be opened only in a clean environment.
ESD Protection: Integrated anti-static matrices and conductive polymer backings provide dissipative pathways to eliminate electrostatic disruptions during handling.
Adhesive Performance: The high surface energy adhesive platform prevents micro-shifting during transport and eliminates residue upon non-destructive sample detachment.
Mesh Customization: Alternative mesh densities and colors can be specified in order remarks, but the default white 16 mesh is pre-installed.
