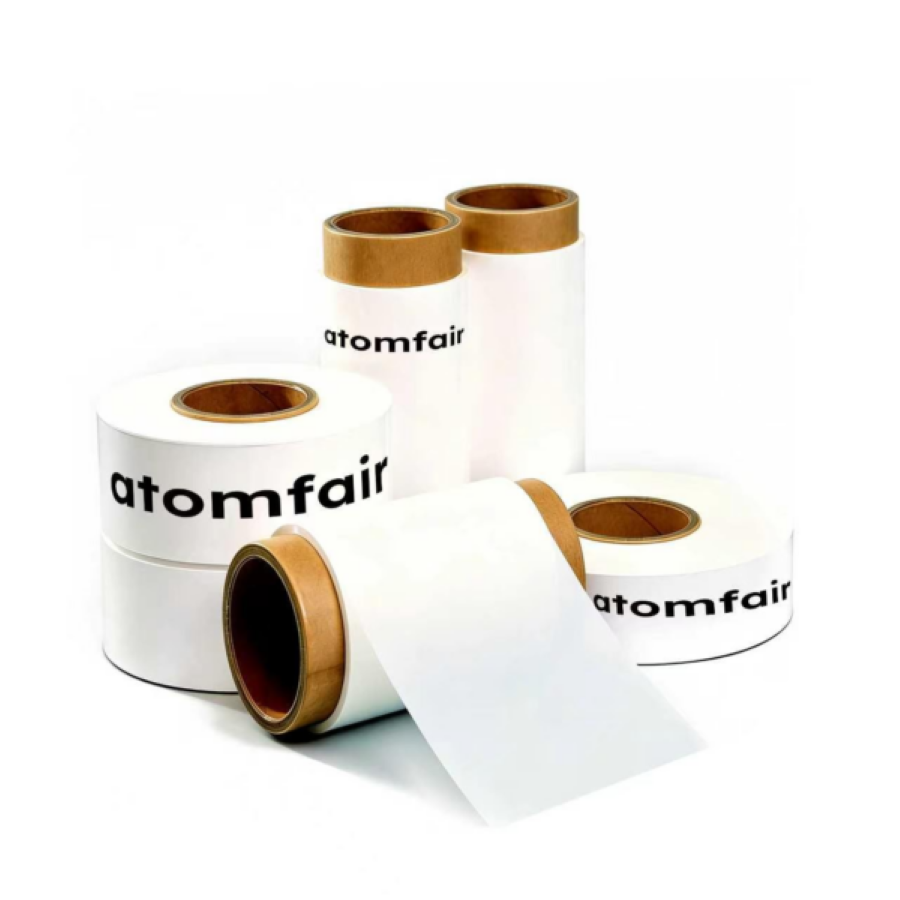

LATP Ceramic Coated Battery Separator, PE Base 16μm, 60 mm x 100 m, Double-Side Coated
Product Overview
Solid-state-electrolyte ceramic coated polyethylene separator supplied as 2+12+2um*60mm*100m. The source data identifies a LATP coating structure and provides transport, shrinkage, and strength values.
Product Details
| Product name | LATP Ceramic Coated Battery Separator, PE Base 16μm, 60 mm x 100 m, Double-Side Coated |
| Source specification | 2+12+2um*60mm*100m |
| Process / coating side | Double-side single coating |
| Base material | Polyethylene (PE) |
| Coating | LATP/LAGP ceramic |
| Base-film thickness | 12 μm |
| Total thickness | 16 μm |
| Width | 60 mm |
| Roll length | 100 m |
| Porosity | 40% |
| Air permeability | 223 sec |
| Thermal shrinkage MD / TD | 0.7% / 0.1% |
| Tensile strength MD / TD | 210 / 155 kg/cm³ |
| Puncture strength | 521 g |
| Coating configuration | Double-side single coating |
Additional Information
PE double-side coating 2+12+2 μm: 2 μm LATP on each side with 12 μm PE in the middle, total thickness 16 μm.
Important Note
Note: Slight variations may occur between different production lots of the battery separator. The performance indicators are guaranteed to comply with our product specifications.
Related Products
| Research Need | Related Product | Best For |
|---|---|---|
| Compare nearby specifications | LATP Ceramic Coated Battery Separator, PE Base 11μm, 60 mm x 100 m, Double-Side Coated | Same LATP ceramic coated separator family for direct specification comparison. |
| Review same-family format | LATP Ceramic Coated Battery Separator, PE Base 16μm, 60 mm x 100 m, Single-Side Coated | Same LATP ceramic coated separator family for direct specification comparison. |
| Check alternate thickness | LATP Ceramic Coated Battery Separator, PE Base 12μm, 60 mm x 100 m, Single-Side Coated | Same LATP ceramic coated separator family for direct specification comparison. |
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This separator roll requires controlled temperature and mechanical handling to maintain integrity. Exceeding rated thermal or mechanical limits may cause irreversible damage.
- Thermal Exposure Limits: The separator must not be exposed to temperatures at or above 130°C for extended periods to avoid shrinkage and structural changes.
- Mechanical Load Limits: Applied forces must remain below the puncture strength of 395gf and tensile strengths of MD 1200 Kgf/cm² and TD 1460 Kgf/cm² to prevent tearing or puncturing.
How does the double-sided LATP coating thickness of 2 μm per side affect the separator's ionic conduction and mechanical puncture resistance?
The 2 μm LATP coating per side provides uniform, continuous ion-conductive pathways while maintaining the flexibility of the 12 μm PE substrate. Despite the thin ceramic layers, puncture strength remains ≥395 gf, ensuring robust electrode isolation without sacrificing the mechanical integrity needed for automated lamination.
What are the temperature constraints for using this LATP-coated PE separator in battery testing?
The separator is tested to maintain dimensional stability up to 130°C for 1 hour, with thermal shrinkage ≤2% in the machine direction and ≤1% in the transverse direction. Prolonged exposure above this limit will cause PE substrate deformation and loss of electrode isolation, limiting its use to moderate-temperature solid-state electrolyte evaluations.
What handling and equipment infrastructure is required to process the 100 m roll of LATP-coated PE separator?
The separator is supplied in a roll format (60 ±0.5 mm width, 100 m length, 16×8×8 in outer packaging) and is fully compatible with automatic laminators such as MSK-111A-ES (110 mm×100 mm). Handling requires a clean, dry environment and automated unwinding to prevent creasing or cracking of the 2 μm LATP coatings; manual cutting must be performed with sharp, clean tools.
This double-sided LATP-coated PE separator provides a unique combination of mechanical flexibility and thermal stability for battery R&D, with symmetrical coating ensuring uniform ion conduction. However, its exclusive roll format and measured thermal shrinkage of up to 2% at 130°C introduce handling and dimensional considerations during cell assembly.
Positive
- Symmetrical Dual-Coating Design: Both sides are uniformly coated with LATP, eliminating ion conduction discrepancies between faces and improving the consistency of battery test data.
- Flexibility and Thermal Balance: The PE substrate provides excellent flexibility for easy processing, while the LATP coating maintains structural stability under high-temperature testing, preventing deformation and ensuring reliable electrode isolation.
Trade-offs
- Roll-Only Sales Form: The separator is supplied exclusively in roll form, requiring additional cutting and handling steps when preparing small-scale pouch or prismatic cells, which may increase manual labor and risk of edge damage.
- Thermal Shrinkage at 130°C: With MD shrinkage up to 2% and TD up to 1% after 1 hour at 130°C, dimensional changes must be accounted for in cell assembly processes that involve elevated temperatures, potentially affecting electrode alignment.
