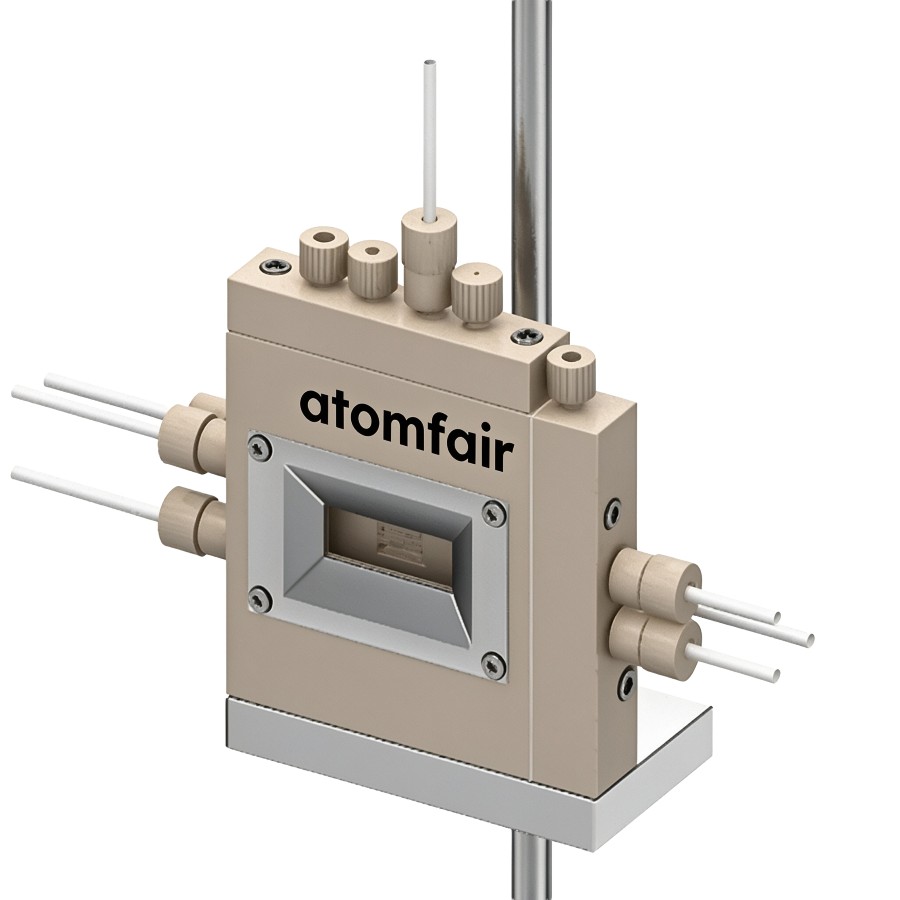

In-situ X-ray Absorption Spectroscopy Reactor Cell, Gas Diffusion TypeProduct Type: In-situ X-ray absorption spectroscopy reactor
Research-grade laboratory product
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
This cell requires selection of compatible electrodes, membranes, and windows for the chosen configuration (single-cell or H-type). The Kapton window is fragile and must be handled carefully to maintain integrity during assembly and use.
- Electrode and Accessory Selection: Electrodes, membranes, windows, and gas diffusion electrodes must be selected to match the configured layout and chamber type.
- Chamber Interchange: The gas diffusion chamber and permeable chamber can be exchanged, requiring correct alignment and sealing to prevent leaks.
- Window Handling: The 120-degree wide-angle Kapton window must be inspected for damage before each use and mounted without wrinkles or debris.
How does the 120-degree wide-angle Kapton window in the Atomfair AF-XAFS-GD gas diffusion reactor cell improve in-situ XAFS data quality compared to standard flat-window designs?
The 120-degree wide-angle Kapton window provides a larger viewing area for detection, enhancing X-ray signal collection during in-situ XAFS measurements. The Kapton film is X-ray transparent, and the wider angular range allows more emitted or scattered X-rays to be captured, which is critical for achieving higher signal-to-noise ratios in time-resolved or dilute-sample experiments.
Can the Atomfair AF-XAFS-GD gas diffusion reactor cell be integrated with both single-cell and H-type membrane-replaceable electrochemical layouts, and what configuration changes are required?
Yes, the cell is explicitly compatible with both single-cell and H-type membrane-replaceable layouts. The chamber structure is designed as a replaceable gas diffusion chamber and permeable chamber, allowing the user to swap between configurations without requiring a new cell body. Electrodes, membranes, and other components are separately purchased and must be selected to match the chosen layout.
What consumables or accessories are required to operate the Atomfair AF-XAFS-GD reactor cell, and are any custom dimensions needed before ordering?
The reactor cell is delivered without electrodes, membranes, windows (beyond the integrated Kapton window), or gas diffusion electrodes — these are all separately purchased items that must be confirmed with the selected configuration. Standard size is common size, but customization is available for non-standard electrode sizes or window materials; specific requirements should be communicated to the technical sales team before ordering.
This in-situ XAS reactor cell with gas diffusion design and wide-angle Kapton window enables uniform gas transport and enhanced detection, but requires separate accessory procurement and customization for non-standard configurations.
Positive
- Gas diffusion design for uniform transport: The gas diffusion chamber supports uniform gas transport during XAFS electrochemical testing, improving reaction consistency and data quality.
- Wide-angle Kapton window for detection: The 120-degree wide-angle Kapton window provides a larger viewing area, enhancing X-ray detection throughput and signal collection.
Trade-offs
- Separate accessory procurement required: Electrodes, membranes, windows, and gas diffusion electrodes are not included and must be purchased separately, adding to upfront configuration effort.
- Customization needed for non-standard specs: Non-standard electrode sizes or window materials require custom inquiry and lead time, limiting out-of-the-box flexibility for some experimental setups.
