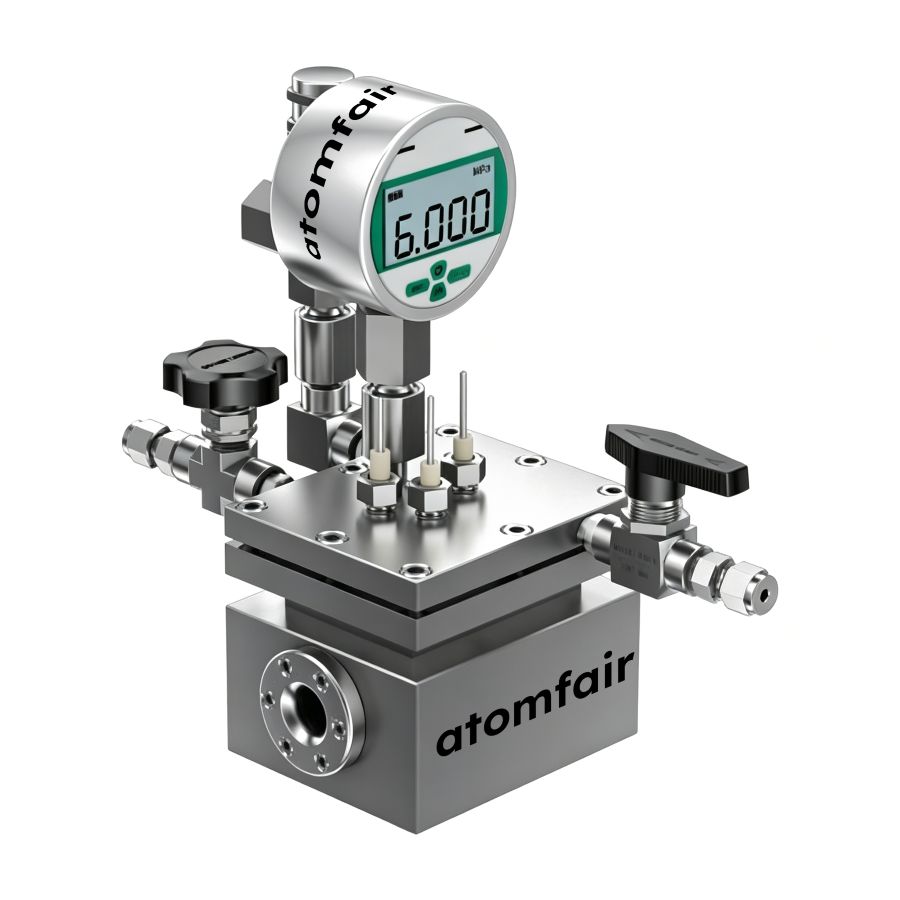

Dual-Chamber High-Pressure Electrochemical Cell, Internal Membrane ExchangeProduct Type: High-pressure electrochemical cell
Research-grade laboratory product
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
This high‑pressure cell must be operated at or below its maximum pressure rating of 6 MPa to prevent structural failure. The titanium body and SS304 valves require compatibility verification with the selected electrolyte to avoid corrosion or contamination.
- Pressure Limit: Do not exceed the certified maximum working pressure of 6 MPa.
- Membrane Integrity: The internal membrane must be seated correctly and free of defects to maintain chamber isolation and pressure seal.
- Electrode Compatibility: All electrodes are purchased separately and must be dimensionally and chemically compatible with the titanium cell body and the intended electrolyte.
- Valve Material Constraint: The SS304 valves may corrode in highly acidic or chloride‑rich environments; verify suitability before use.
Assemble the cell by installing the membrane and electrodes in their designated chambers, then seal and pressurize to the target value. All connections must be verified before pressurization to ensure safe operation.
Required Equipment:
- Inspect the Cell
Inspect the titanium body, SS304 valves, and sealing surfaces for any visible damage or debris before assembly. - Install the Membrane
Install the internal membrane into the designated slot, ensuring it is centered and free of wrinkles to prevent cross‑chamber mixing. - Place the Electrodes
Place the reference and working electrodes into one chamber and the counter electrode into the isolated opposite chamber. - Seal the Cell
Seal the cell by tightening the cover bolts evenly to the manufacturer’s recommended torque specification. - Pressurize Gradually
Pressurize the cell gradually using an inert gas source, not exceeding the 6 MPa maximum pressure rating.
What is the maximum operating pressure of the Atomfair AF-HP-INT1 dual-chamber high-pressure electrochemical cell, and how does the titanium body affect pressure tolerance?
The cell is rated for a maximum pressure of 6 MPa. The titanium body provides corrosion resistance and mechanical strength suitable for high-pressure electrochemical studies, though the valve material is stainless steel 304, which may have different corrosion behavior in aggressive electrolytes at elevated pressure.
Can the Atomfair AF-HP-INT1 be used with a standard three-electrode setup, and are the electrodes included?
Yes, the cell supports a three-electrode system with reference and working electrodes in one chamber and the counter electrode isolated in the other. However, electrodes are not included; a reference electrode, platinum sheet counter electrode, and glassy carbon electrode clamp must be purchased separately.
What are the handling and customization considerations for the internal membrane exchange feature in this high-pressure cell?
The internal membrane exchange design requires careful selection of membranes and windows, which are purchased separately. Customization of electrode sizes and window materials is supported but must be specified before ordering. The cell volume is 20 mL per chamber, with non-standard volumes available upon request.
The Dual-Chamber High-Pressure Electrochemical Cell (AF-HP-INT1) offers a titanium construction rated to 6 MPa with a three-electrode layout that isolates the counter electrode, enabling high-pressure electrochemical studies with reduced interference; however, electrodes are purchased separately and the standard 20 mL per chamber volume may require customization for larger sample sizes.
Positive
- Isolated counter electrode design: The reference and working electrodes are placed in one chamber while the counter electrode is isolated in a separate chamber, minimizing cross-contamination and electrochemical interference during high-pressure experiments.
- High-pressure titanium construction: Titanium material and 6 MPa maximum pressure rating enable safe operation under elevated pressures, suitable for studying pressure-dependent electrochemical reactions.
Trade-offs
- Electrodes not included: Reference electrode, platinum sheet counter electrode, and glassy carbon electrode clamp must be purchased separately, adding procurement steps and potential compatibility checks.
- Fixed chamber volume with customization lead time: Standard single-chamber volume is 20 mL; non-standard sizes or window materials require custom ordering, which may extend delivery timelines and require specification confirmation.
