Description

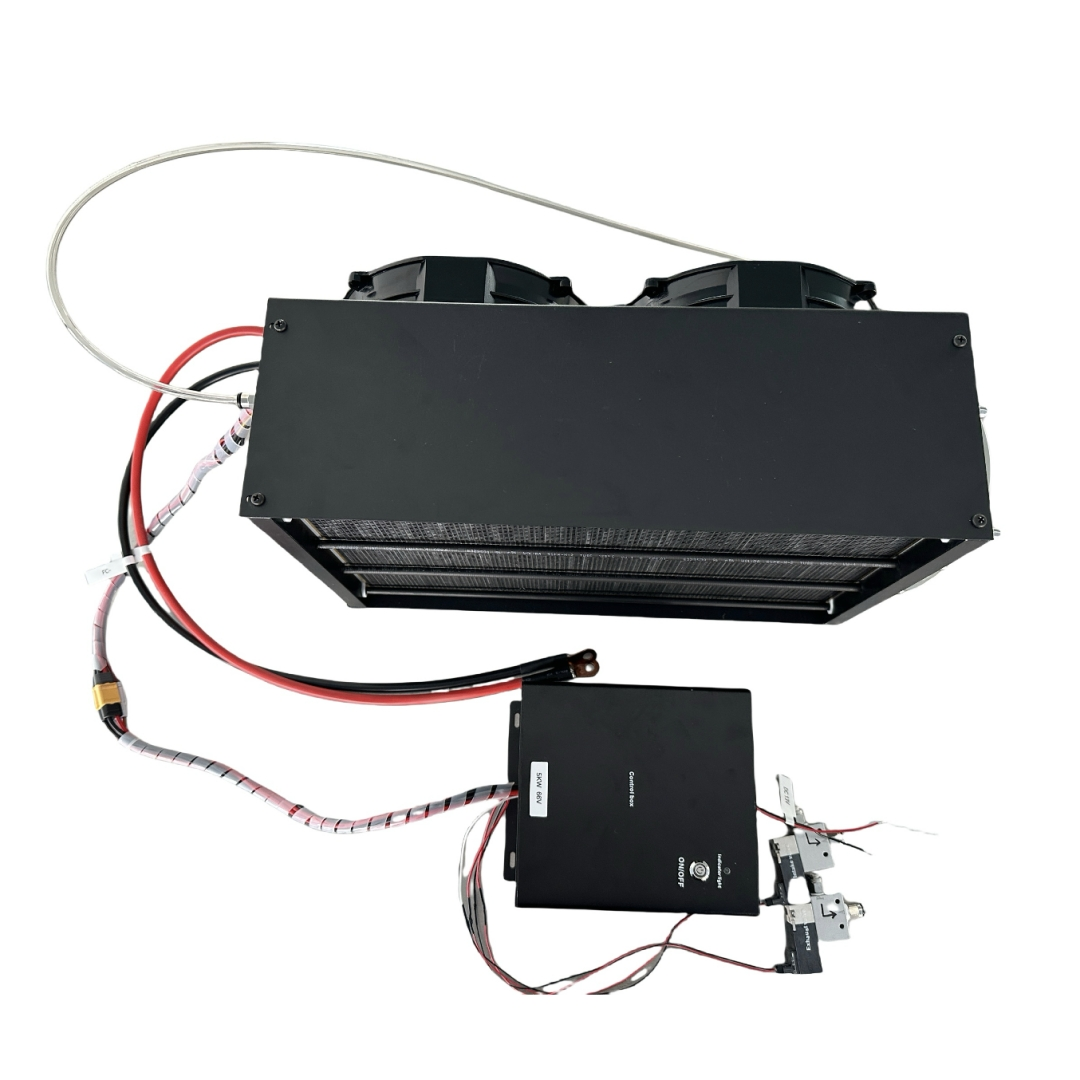

Atomfair FCS-218 5000W PEM Fuel Cell Stack
Component List
- 5000W fuel cell stack (with fan)
- 5000W fuel cell controller
- TPU or PTFE tubing
- Air intake solenoid valve
- Pressure sensor
- Current sensor
Product Description
This 5000W PEM (Proton Exchange Membrane) fuel cell stack converts hydrogen and oxygen into electricity through electrochemical reaction, without combustion. Stable performance and high efficiency are shown in its typical polarization curve.
Applications
- Hydrogen-powered sightseeing vehicles
- Emergency & backup power systems
- Ground support power for hydrogen UAVs
- 4-wheel electric utility vehicles
- Forklifts & light industrial vehicles
- Mobile & off-grid power supply systems
About the Manufacturer
We provide high-performance hydrogen fuel cell stacks for a zero-emission future. Our products feature high efficiency and low environmental impact, ideal for clean energy development.
Technical Specifications
- Power: 5000 W
- Operating voltage: 55 V – 99 V
- Operating current: 0 A – 90 A
- Efficiency: > 40%
- Hydrogen consumption: 77 L/min at 90 A
- Hydrogen purity: ≥ 99.99% (CO < 1 ppm)
- Hydrogen pressure: 0.035 MPa – 0.05 MPa
- Operating temperature: 0 – 35 ℃
- Operating humidity: 10% – 90%
- Storage temperature: 0 – 60 ℃
- Number of cells: 110
- Dimensions: 198 × 262 × 429.5 mm
- Weight: 14000 g
