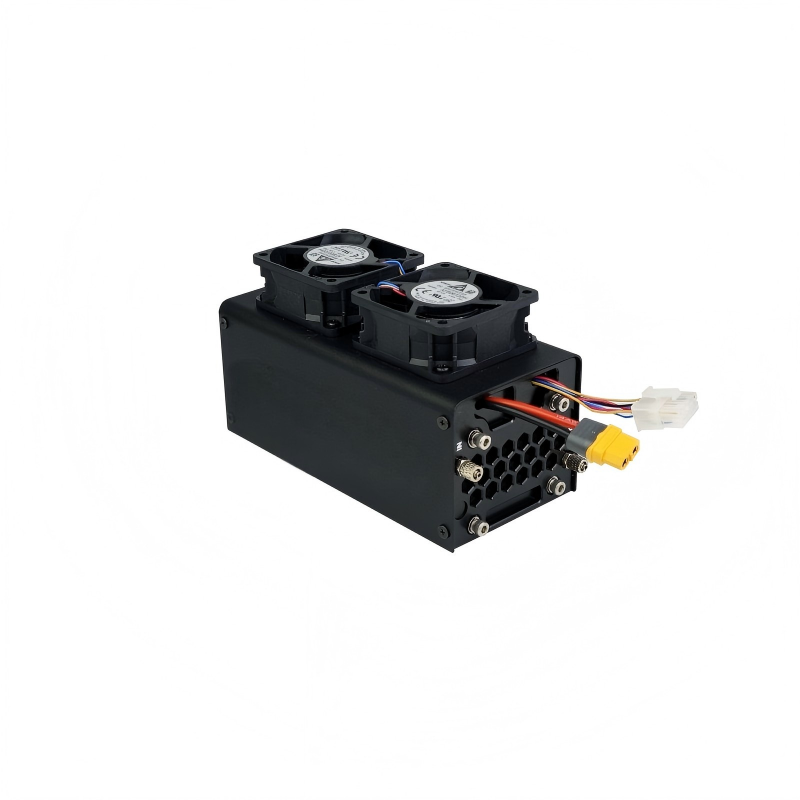

Atomfair FCS-028 200W PEM Fuel Cell Stack
Product Overview
Atomfair FCS-028 is a 24V class PEM fuel cell power module designed for distributed energy, off-grid operation and backup power systems that require high continuous output power.
It delivers smooth and reliable DC power with high efficiency (≥50%), optimized hydrogen utilization and near-silent operation. It is ideal for remote monitoring, field communication, small telecom units, and security or control electronics in unattended environments.
With a rugged lightweight frame, active thermal management and dedicated external control unit, it extends runtime in locations with only battery power, limited grid access or inconvenient daily maintenance.
Component List
- Fuel cell stack (with fan)
- Fuel cell controller
- TPU or PTFE tubing
- Air intake solenoid valve
- Pressure sensor
- Current sensor
Performance Specifications
- Power: 200 W
- Operating voltage: 20 V – 37 V
- Operating current: 0 A – 9.6 A
- Efficiency: > 40%
Fuel Specifications
- Hydrogen consumption: 3 L/min at 9.6 A
- Hydrogen purity: ≥ 99.99% (CO < 1 ppm)
- Hydrogen pressure: 0.035 MPa – 0.05 MPa
Environmental Specifications
- Operating temperature: 0 – 35 ℃
- Operating humidity: 10% – 90%
- Storage temperature: 0 – 60 ℃
Physical Parameters
- Number of cells: 40
- Stack dimensions: 95 × 78 × 162 mm
- Weight: 975 g
Applications
- Distributed energy systems
- Off-grid power
- Backup power supplies
- Remote monitoring equipment
- Field communication devices
- Small telecom units
- Unattended security & control electronics
