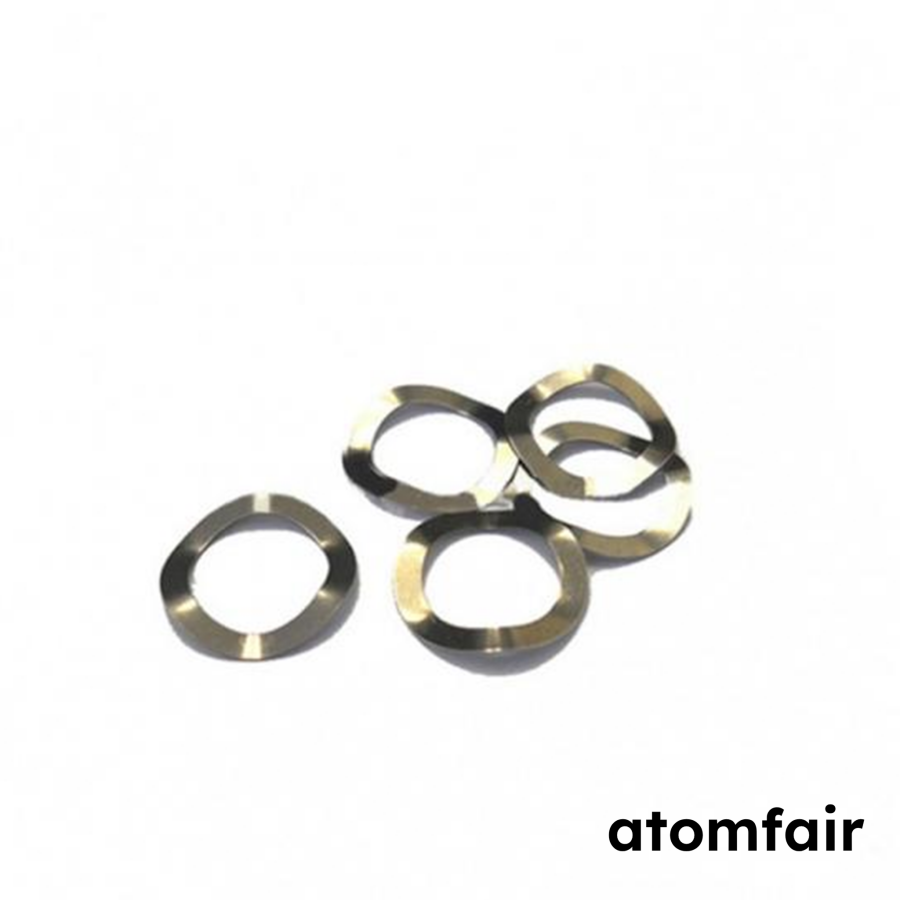

ATOMFAIR® a small cluster of metallic aluminum clad wave spring washers on a white background.

Al-Clad Wave Springs 15.4mm CR2032 Research Grade ATOMFAIR®

$100.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade Al-clad wave springs for CR2032. 15.4mm dia, 5-30N force, 10k cycles, 5-10μm coating, ≥5B adhesion. 60 pieces per pack. Order now.

SKU: AFMSEQKM196
Category:
Tags: , ,
Brands:

Description

ATOMFAIR® Al-Clad Wave Springs

RESEARCH GRADE MATERIAL

Product Overview
Premium Al-clad wave springs (15.4 × 1.1 mm) for battery research. Features specialized aluminum-clad surface treatment on Belleville wave spring geometry, delivering a spring force range of 5 N–30 N with a large contact area and small footprint design. Engineered to provide stable cell internal pressure with fatigue life ≥10,000 cycles, making it the universal preferred choice for most routine testing, thin electrodes, and low-loading batteries. Customizable sizing variants are available upon request. If you require other sizes, models, and materials, please email inquiry@atomfair.com for customization.

ATOMFAIR® Al-Clad Wave Springs
ITEM DESCRIPTION
Product Name ATOMFAIR® Al-Clad Wave Springs
Spring Type Wave Spring (Belleville)
Material & Surface Treatment Aluminum-Clad Stainless Steel (Coating Thickness 5–10 μm, Adhesion ≥5B Grade)
Dimensions (Diameter × Free Height) 15.4 × 1.1 mm (Default)
Model Compatibility CR2032 (Compatible with all CR20 Series Internal Dimensions)
Packaging Specification 60 Pieces/Pack
Core Performance Parameters Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles
Stable Cell Internal Pressure
Optimal Application Scenarios Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Customization Options For other sizes, models, and materials, please email inquiry@atomfair.com to request customization.

Research-Grade Core Quality Advantages
  • Uniform High-Precision Tolerance Control: All component dimensions strictly controlled within ±0.02 mm, ensuring perfect matching across different batches and components, completely eliminating assembly gaps and uneven pressure issues caused by dimensional errors.
  • Full Material Gradient Coverage: Provides a complete material selection from basic to high-end, allowing flexible selection based on corrosivity, voltage range, and testing precision requirements of your experimental system, avoiding experimental failure due to mismatched consumables.
  • Rigorous Electrochemical Compatibility Verification: All materials have undergone constant potential polarization, cyclic voltammetry, and other electrochemical tests to ensure no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance test results.
  • Standardized Batch Production: Fully automated production and quality control ensures highly consistent product performance within and across batches, effectively reducing experimental systematic errors.

APPLICATION SCOPE: Precision assembly and standardized testing for most routine electrochemical testing, thin electrodes, low-loading batteries, and all systems requiring stable cell internal pressure with a compact footprint.
PACKAGING: 60 pieces/pack. 100% dimensional inspection, coating thickness verification, spring force calibration, and appearance inspection before shipment, ensuring oil-free, burr-free, and impurity-free conditions. Can be used directly for battery assembly inside gloveboxes.
IMPORTANT NOTICE: This series is a one-stop assembly solution for coin cells dedicated to electrochemical research. Default accompanying accessories are made of 304 stainless steel. If other materials or special dimensions are required, please email inquiry@atomfair.com for customization.



This series is a one-stop assembly solution for coin cells dedicated to electrochemical research, comprehensively covering the three mainstream models CR2032, CR2025, and CR2016. It provides a full material and specification selection of three core components—positive/negative electrode cases, conductive spacers, and elastic springs. Independent purchase of single components is supported, and pre-matched complete assembly kits are also available. Fully compatible with all cutting-edge research systems, including conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, and high-voltage batteries, it provides standardized hardware support for the accuracy and reproducibility of experimental data.
Important Note: Default accompanying accessories are made of 304 stainless steel. For accessories made of other materials, please email inquiry@atomfair.com for customization.

I. Positive/Negative Electrode Cases
Type Classification Material / Special Structure Compatible Models Core Performance Parameters Optimal Application Scenarios
Basic Universal 304 Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥5 MPa
Operating Temp. -40°C to 120°C		 Conventional Li-ion/Na-ion batteries, aqueous battery basic testing, batch prototype preparation
Basic Universal 316L Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥6 MPa
Operating Temp. -40°C to 150°C		 Sulfide solid-state batteries, high-voltage batteries (>4.5 V), long-term cycling tests, highly corrosive systems
High-Performance Coated Aluminum Coated CR2032/CR2025/CR2016 Coating Thickness 5–10 μm
Adhesion ≥5B Grade
Volume Resistivity ≤3×10⁻⁸ Ω·m		 Lightweight batteries, low contact resistance precision testing, systems sensitive to metal ion contamination
High-Performance Coated Titanium Coated CR2032/CR2025/CR2016 Coating Thickness 3–8 μm
Excellent Biocompatibility
Resistant to Strong Acid/Base Corrosion		 Bio-batteries, aqueous zinc batteries, strongly acidic/alkaline electrolyte systems
High-Performance Coated Nickel Coated CR2032/CR2025/CR2016 Coating Thickness 5–12 μm
Excellent Weldability
Atmospheric Corrosion Resistant		 Battery structures requiring tab welding, pilot-scale batch production, routine electrochemical testing
High-Performance Coated Gold Coated CR2032/CR2025/CR2016 Coating Thickness 0.5–2 μm
Contact Resistance ≤1 mΩ
Superior Chemical Stability		 Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization
Specialized Research Li-Air Mesh Type CR2032/CR2025/CR2016 Pore Size 0.2–0.5 μm
Waterproof Rating IP67
Uniform Gas Distribution Design		 Lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems
Specialized Research Kapton Window Type CR2032/CR2025/CR2016 Window Thickness 25–50 μm
Optical Transmittance ≥85%
Electrolyte Corrosion Resistant		 In-situ optical characterization, in-situ Raman/IR spectroscopy, in-situ microscopy observation

II. Conductive Spacers
Default Size: Φ15.8 × 0.5 mm, compatible with the internal dimensions of all CR20 series cell cases. Other thicknesses and special sizes are customizable; please email inquiry@atomfair.com for customization.
Material Available Size (Diameter × Thickness) Core Performance Parameters Optimal Application Scenarios
99.5% Industrial Pure Aluminum Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Volume Resistivity 2.7×10⁻⁸ Ω·m
No Electrochemical Side Reactions		 Precision experiments requiring high contact resistance, conventional Li-ion/Na-ion batteries
304 Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
High Mechanical Strength
General Corrosion Resistant		 Most routine testing scenarios, aqueous batteries, low-to-medium voltage systems
316L Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Sulfide/Chloride Ion Corrosion Resistant
High Temperature Resistant		 Sulfide solid-state batteries, high-voltage batteries, highly corrosive systems, long-term cycling tests

III. Elastic Springs
Default Size: φ15.4 × 0.3 mm, compatible with the internal dimensions of all CR20 series cell cases. Other heights and special sizes are customizable; please email inquiry@atomfair.com for customization.
Spring Type Available Materials Available Size (Diameter × Free Height) Core Performance Parameters Optimal Application Scenarios
Wave Spring (Belleville) Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles		 Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Conical Spring Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 10 N–50 N
Good Self-Centering
Strong Anti-Buckling
Fatigue Life ≥10,000 cycles		 Thick electrodes, high-loading batteries, vibration environment testing, systems requiring precise pressure control

IV. Complete Assembly Kit Specifications
Kit Type Included Components Corresponding Battery Model Configurable Options
Standard Assembly Kit Positive Case + Negative Case + Spacer + Spring CR2032/CR2025/CR2016 All materials freely combinable
Spacer thickness customizable
Spring height customizable
Li-Air Dedicated Kit Mesh Positive Case + Negative Case + Waterproof Breathable Membrane + Spacer + Spring CR2032/CR2025/CR2016 304/316L SS material optional
Spacer thickness customizable
Spring height customizable
In-Situ Characterization Kit Kapton Window Cell Case + Gold Coated Spacer + Gold Coated Spring CR2032/CR2025/CR2016 Window thickness optional
Spacer thickness customizable
Spring height customizable

International Quality Standards
  • Stainless steel materials comply with ASTM A240 international standard.
  • Pure aluminum materials comply with ASTM B209 international standard.
  • All coating thicknesses are uniform, with adhesion meeting ASTM B571 standard.
  • 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment.
  • Oil-free, burr-free, and impurity-free; ready for direct use in glovebox battery assembly.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The aluminum-clad coating has adhesion grade ≥5B and thickness of 5–10 μm, requiring careful handling to avoid scratching or delamination. The spring must be used within its force range of 5–30 N and with CR2032 compatible cells to ensure proper contact and fatigue life.

  • Coating Integrity: Inspect the spring visually for coating defects before assembly and avoid abrasive contact with the coated surface.

What performance trade-offs exist between the aluminum-clad coating and the underlying stainless steel for wave springs used in high-voltage coin cell testing?

The aluminum-clad coating (5–10 μm, adhesion ≥5B grade) provides electrochemical stability, having been verified to cause no side reactions within a -0.5 V to 5.0 V voltage range, while the stainless steel core delivers mechanical strength and a fatigue life ≥10,000 cycles. This combination balances corrosion resistance and contact conductivity against the spring's structural load capacity, making it suitable for thin electrode and low-loading battery applications without compromising cell internal pressure stability.

Can ATOMFAIR Al-Clad Wave Springs be integrated into cell formats other than CR2032, such as CR2016 or custom pouch cells?

The default 15.4 × 1.1 mm dimensions are specifically designed to fit CR2032 and all CR20 series internal dimensions. For other cell formats including CR2016 (different height) or pouch cells, customizable sizing variants are available upon request via inquiry@atomfair.com, allowing adaptation to unique geometry and pressure requirements.

Is any pre-cleaning or surface preparation required before using these wave springs in an argon glovebox for battery assembly?

No pre-cleaning is necessary. Each spring is shipped after 100% dimensional inspection, coating thickness verification, spring force calibration, and appearance inspection, ensuring oil-free, burr-free, and impurity-free conditions. They are ready for direct use inside gloveboxes without additional surface treatment.

The ATOMFAIR Al-Clad Wave Springs deliver a spring force range of 5–30 N with fatigue life ≥10,000 cycles, engineered for stable cell internal pressure in routine testing, thin electrode, and low-loading battery applications. They are dimensioned for CR2032/CR20 cells and verified for electrochemical compatibility within -0.5 V to 5.0 V, but the fixed force range and cell format restriction limit broader utility without customization.

Positive

  • High-Precision Dimensional Tolerance: All component dimensions are controlled within ±0.02 mm, ensuring consistent matching across batches and eliminating assembly gaps and uneven pressure issues.
  • Electrochemical Compatibility Verified: Materials have undergone constant potential polarization and cyclic voltammetry tests confirming no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance results.

Trade-offs

  • Limited Spring Force Range: The spring force is fixed between 5 N and 30 N; applications requiring higher or lower clamping pressures are not supported without custom ordering.
  • Default Size Restricted to CR20 Cells: The default 15.4 × 1.1 mm dimensions are optimized for CR2032 and CR20 series internal diameters; use in other cell formats requires a custom order.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
