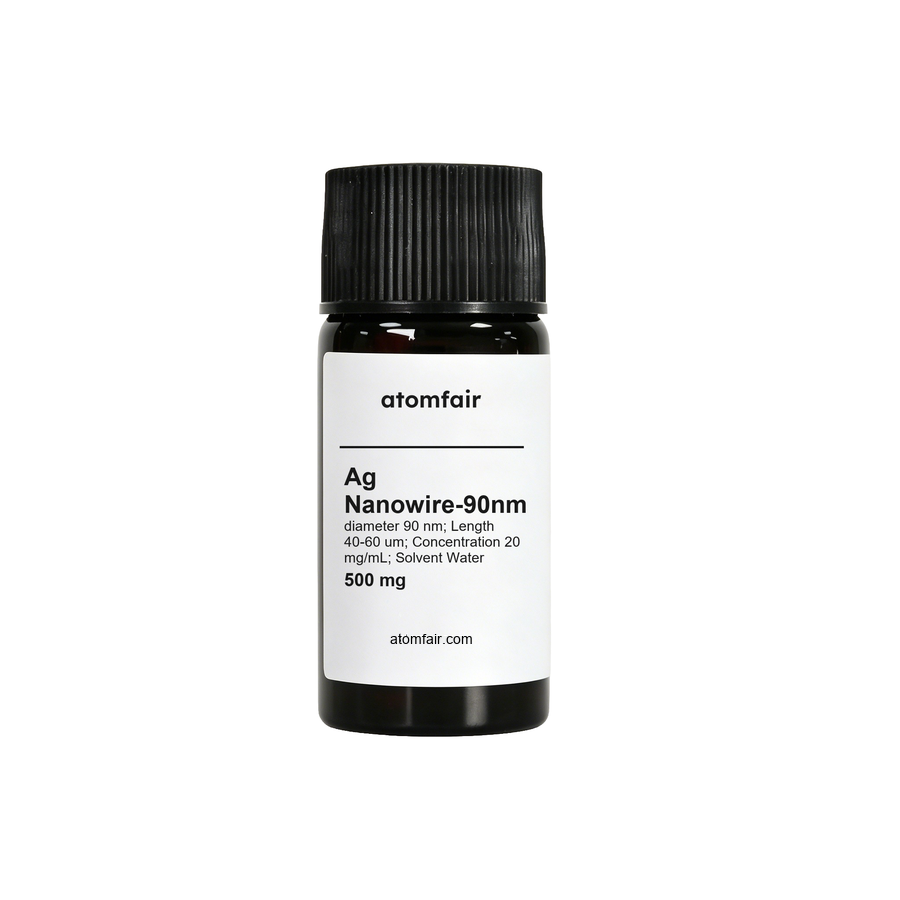

Ag Nanowire-90nm (for spin coating and spraying) – diameter 90 nm; Length 40-60 um; Concentration 20 mg/mL; Solvent Water; Package 500 mgProduct Type: Nanowire dispersion material
Research-grade laboratory product
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For material selection, specification review, package confirmation, and quotation support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
How does the 90 nm diameter of Ag Nanowire-90nm compare to thinner nanowires for transparent electrode performance?
The 90 nm diameter provides a balance between optical transparency and electrical conductivity. Thinner nanowires (e.g., 30–50 nm) offer higher transparency but may have higher sheet resistance; thicker nanowires offer lower sheet resistance but reduce transparency. The source specifies >98 wt% purity, which minimizes junction resistance, but does not provide comparative metrics for other diameters.
Can Ag Nanowire-90nm be used with organic solvents if water-based dispersion is not compatible with my coating process?
The source specifies water as the solvent. The product is not described as compatible with organic solvents; solvent exchange may cause aggregation or require re-dispersion with surfactants. The product is explicitly recommended for spin coating and spraying in its current water-based formulation, indicating process optimization for aqueous systems.
What storage conditions are required to maintain the stability of the Ag Nanowire-90nm dispersion?
The source does not specify explicit storage conditions, but as a research-grade aqueous dispersion at 20 mg/mL, standard practice is to store at room temperature in a sealed container away from light to prevent aggregation or microbial growth. The product should be used promptly after opening; stability beyond the stated specifications should be verified with the manufacturer (inquiry@atomfair.com).
This 90 nm diameter, 40-60 µm length silver nanowire dispersion in water at 20 mg/mL is designed for spin coating and spraying, offering high aspect ratio and >98% purity for transparent conductive films, though the aqueous solvent and fixed concentration impose substrate compatibility and formulation adjustments.
Positive
- High aspect ratio for percolation: With a 90 nm diameter and 40-60 µm length, the aspect ratio exceeds 400, enabling efficient conductive network formation at low areal densities for transparent electrodes.
- Ready-to-use aqueous dispersion: Supplied at 20 mg/mL in water, the dispersion is directly compatible with spin coating and spraying processes without additional solvent exchange.
Trade-offs
- Aqueous solvent compatibility limitations: Water-based dispersion requires hydrophilic or treated substrates to achieve uniform wetting, and drying conditions must be optimized to avoid coffee-ring effects in film formation.
- Fixed concentration may need adjustment: The as-supplied 20 mg/mL concentration is optimized for specific coating parameters; users targeting different film thicknesses or deposition methods may require dilution or concentration, altering dispersion stability.
