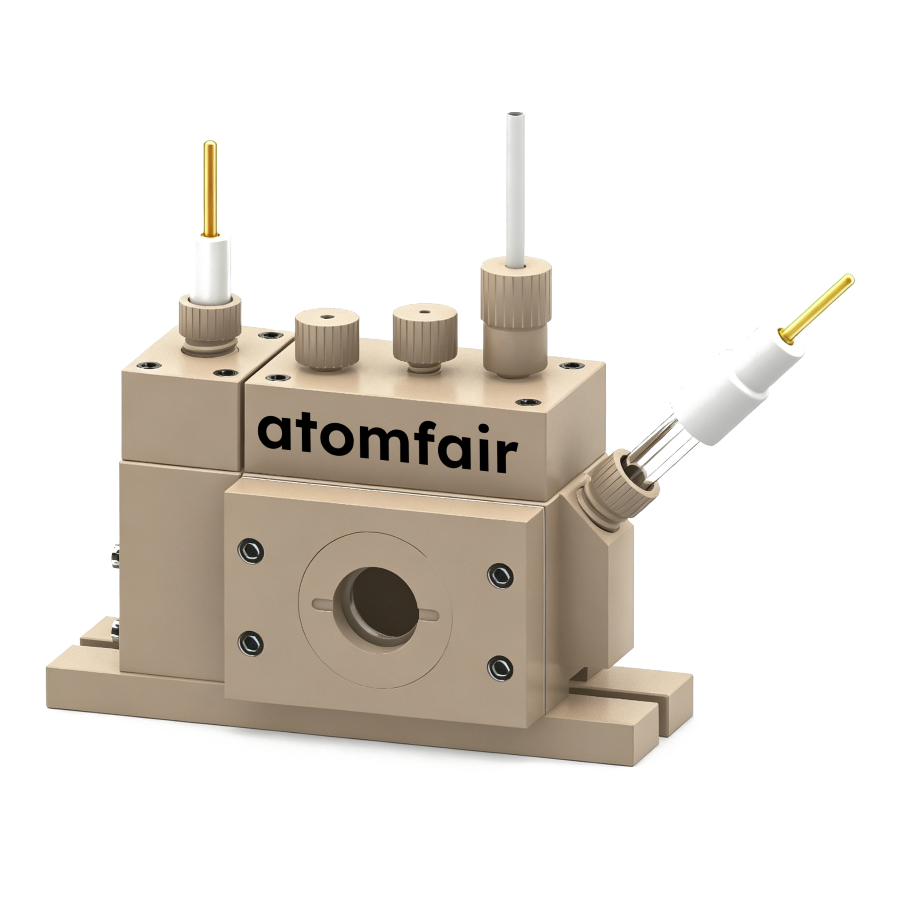

In-situ UV Electrochemical Cell, Dual-Chamber H-TypeProduct Type: In-situ UV electrochemical cell
Research-grade laboratory product
|
|||||||||||||||||||||
|
|||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
The dual-chamber H-type cell requires separate selection of electrodes, membranes, and windows to match experimental conditions. Gas inlet and outlet ports are provided for controlled atmosphere, requiring an external gas supply system.
- Electrode and Membrane Compatibility: Working and counter electrodes, membranes, and reference electrodes are not included and must be selected based on the intended electrochemical application.
- Optical Window Specification: The cell is equipped with a sapphire glass window for UV transmission, and alternative window materials may be available upon request.
- Gas Control Interface: The working chamber includes inlet and outlet ports for purging or saturating the electrolyte with a specific gas atmosphere.
How does the dual-chamber H-type configuration affect UV optical measurement performance compared to the single-chamber base?
The dual-chamber H-type configuration maintains the same UV optical access and ITO working electrode format as the single-chamber base, enabling membrane-separated experiments without compromising optical measurement capability. The trade-off is that users must independently procure membranes, electrodes, and other accessories for their specific configuration.
What electrodes, membranes, and windows are compatible with the AF-UV-H in-situ UV electrochemical cell?
The cell includes an ITO working electrode and a sapphire glass window by default. Electrodes, membranes, windows, and gas diffusion electrodes are separate purchase items that must be confirmed for the selected configuration. Non-standard electrode sizes and window materials can be accommodated through customization inquiries.
What gas handling and infrastructure requirements are needed to operate the dual-chamber UV electrochemical cell?
The working chamber supports integrated gas inlet and outlet connections, allowing controlled gas purging or atmosphere manipulation during UV electrochemical experiments. Standard protective packaging is used for delivery, with optional custom reinforcement. Users should establish proper gas handling protocols and connections for safe operation.
The Atomfair AF-UV-H dual-chamber H-type in-situ UV electrochemical cell upgrades a single-chamber design with membrane-separated compartments, gas inlet/outlet on the working chamber, sapphire glass window, and ITO working electrode, enabling simultaneous UV optical access and electrochemical control for research applications.
Positive
- Membrane-separated dual-chamber H-type design: The H-type configuration with membrane separation allows independent control of working and counter electrode environments, reducing cross-contamination and enabling studies of half-cell reactions under UV irradiation.
- Gas inlet/outlet on working chamber: The working chamber supports gas inlet and outlet connections, enabling controlled atmosphere experiments (e.g., purging with inert gas or introducing reactive gases) during UV electrochemical testing.
Trade-offs
- Sapphire window requires careful handling: Sapphire glass windows are mechanically robust but can be brittle under point stress; improper mounting or cleaning may cause cracking, requiring careful assembly and maintenance procedures.
- ITO electrode conductivity limits high-current applications: Indium tin oxide (ITO) working electrodes have higher sheet resistance than metallic electrodes, which may introduce ohmic losses or potential gradients in high-current or fast-scan-rate experiments.
