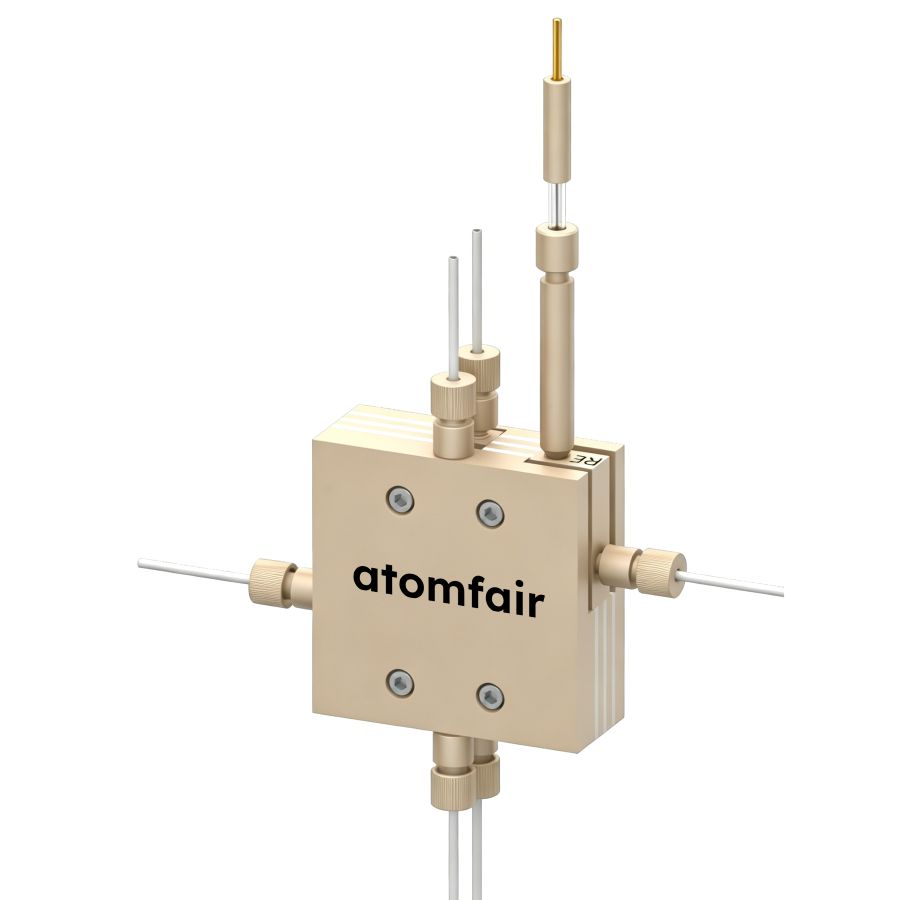

Advanced Gas Diffusion Electrolysis Cell without Observation WindowProduct Type: Gas diffusion electrolysis cell
Research-grade laboratory product
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
This cell requires external selection and assembly of electrodes, membranes, and gas diffusion electrodes before operation. The absence of an observation window prevents in situ optical monitoring of electrode flooding or gas evolution.
- Electrode and Membrane Procurement: Separately purchased electrodes, membranes, and gas diffusion electrodes must be selected to complete the configuration.
- Flow System Compatibility: The cell is designed for flow electrochemical work and requires an external gas and liquid flow delivery system.
- Optical Monitoring Limitation: The absence of an observation window precludes direct visual or optical inspection of the electrode surface during operation.
- Fixed Geometric Constraints: The 1 cm2 reaction area and 7 mm cathode-anode gap impose fixed electrode dimensions and spacing tolerances.
- Customization Lead Time: Non-standard electrode sizes or window materials require advance specification and confirmation before ordering.
What trade-offs arise from using a gas diffusion electrolysis cell without an observation window compared to one with a window?
The absence of an observation window eliminates direct visual monitoring of flooding and gas bubble dynamics, which is a common diagnostic need in gas diffusion electrode research. However, the PEEK body provides excellent corrosion resistance while maintaining a 1 cm2 reaction area and 7 mm cathode-anode gap, enabling robust flow electrochemical operation where flooding can be assessed indirectly via electrochemical signals rather than optical inspection.
Which electrodes, membranes, and gas diffusion electrodes are compatible with the Atomfair AF-GDE-ADV gas diffusion electrolysis cell?
Electrodes, membranes, windows, and gas diffusion electrodes are not included and must be purchased separately to match the cell's 1 cm2 reaction area and 5×20 mm chamber size. The PEEK body and 7 mm cathode-anode gap define the physical constraints; for confirmed compatibility and non-standard dimensions, consult Atomfair's technical sales team.
What handling and infrastructure requirements are necessary for operating the Atomfair AF-GDE-ADV gas diffusion electrolysis cell?
The cell is designed for flow electrochemical work, requiring external flow control and a potentiostat. The PEEK body offers chemical resistance across a range of electrolytes, but the lack of an observation window demands indirect electrochemical monitoring of flooding and bubble formation. Standard protective packaging is provided; custom reinforcement is available upon request.
This gas diffusion electrolysis cell offers a corrosion-resistant PEEK three-chamber design with a fixed 1 cm² reaction area and 7 mm cathode-anode gap, but lacks an observation window, limiting real-time visual monitoring of electrode flooding or gas evolution during operation.
Positive
- Corrosion-resistant PEEK body: The PEEK body provides chemical resistance to aggressive electrolytes, enabling stable long-term operation in acidic or alkaline electrochemical environments.
- Classic three-chamber flow design: The three-chamber architecture supports separate gas and liquid flow paths, facilitating controlled mass transport and gas diffusion electrode studies in electrochemical research.
Trade-offs
- No observation window: The absence of a flooding observation window prevents direct visual inspection of gas evolution or electrolyte flooding at the electrode interface, which is critical for diagnosing mass transport limitations.
- Fixed reaction area and gap: The 1 cm² reaction area and 7 mm cathode-anode gap are non-adjustable, limiting flexibility for experiments requiring different electrode sizes or inter-electrode distances.
