ATOMFAIR® Prismatic Cell 3.2V 20Ah for wide-temperature battery testing and energy storage applications and controlled

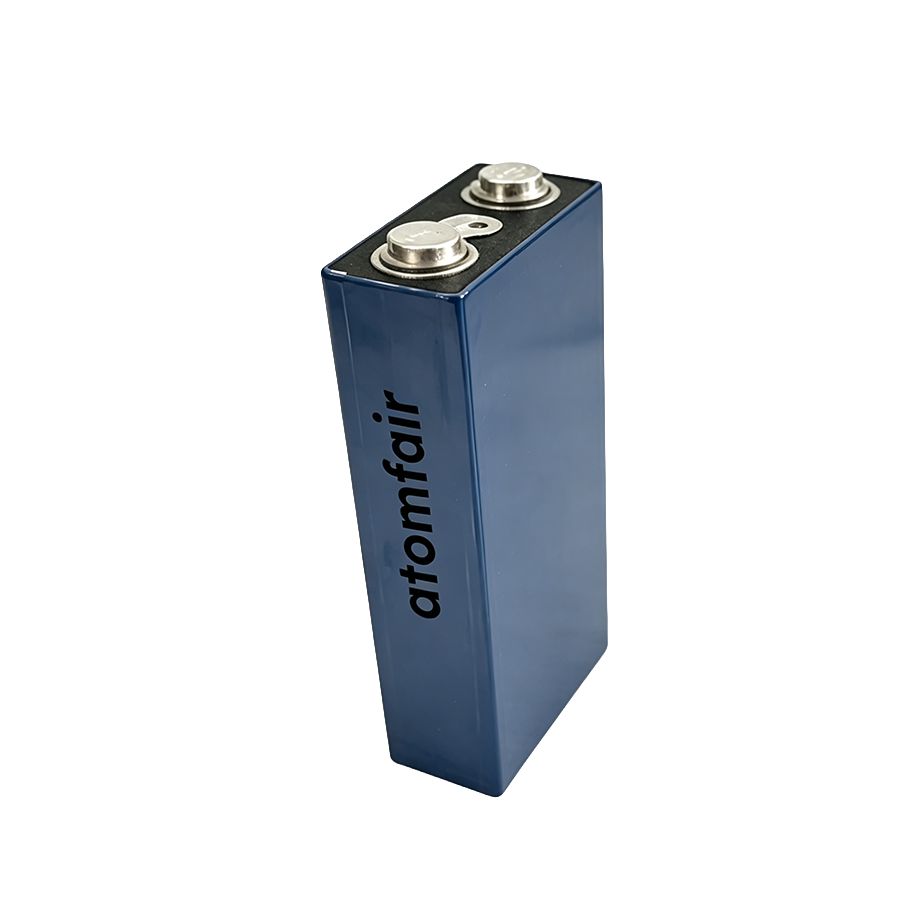

3.2V 20Ah Wide-Temperature Prismatic Battery Cell (-40°C to 55°C)

$62.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

3.2V 20Ah Wide-Temperature Prismatic Battery Cell (-40°C to 55°C) | ATOMFAIR COMMERCIAL GRADE PRODUCTION Product Overview The ATOMFAIR® 3.2V 20Ah wide-temperature prismatic cell is engineered to deliver reliable discharge at -40°C and stable charging at -10°C, addressing the most demanding extreme-environment applications. With a 3.2 V nominal voltage, 20.0 Ah rated capacity, and energy of 64 Wh, this platform demonstrates exceptional capacity retention and voltage stability across a broad temperature spectrum from -40°C to 55°C. Featuring 2C continuous charge and discharge capability at ambient temperatures, along with 0.2C charging at low temperatures, this cell ensures robust power delivery under cold…

Category:
Tags: , ,
Brands:

Description

3.2V 20Ah Wide-Temperature Prismatic Battery Cell (-40°C to 55°C) | ATOMFAIR

COMMERCIAL GRADE PRODUCTION

Product Overview
The ATOMFAIR® 3.2V 20Ah wide-temperature prismatic cell is engineered to deliver reliable discharge at -40°C and stable charging at -10°C, addressing the most demanding extreme-environment applications. With a 3.2 V nominal voltage, 20.0 Ah rated capacity, and energy of 64 Wh, this platform demonstrates exceptional capacity retention and voltage stability across a broad temperature spectrum from -40°C to 55°C. Featuring 2C continuous charge and discharge capability at ambient temperatures, along with 0.2C charging at low temperatures, this cell ensures robust power delivery under cold conditions. The cell is designed with safety and longevity in mind, utilizing long-life lithium iron phosphate chemistry. This commercial-grade solution is ideal for electric motorcycles, portable energy storage, lead-acid replacement batteries, AGV systems, and humanoid robot applications where wide-temperature performance is essential.

Technical Specifications

PARAMETER SPECIFICATION
Model WT2770134F-20LB
Nominal Capacity 20 Ah
Minimum Capacity 19.5 Ah
Energy 64 Wh
Nominal Voltage 3.2 V
Internal Resistance ≤ 3.5 mΩ
Charge Cut-off Voltage 3.65V ± 0.05V
Standard Charge Current (25°C) 10 A
Standard Discharge Current (25°C) 10 A
Charging Temperature -10°C ~ 45°C
Discharging Temperature -40°C ~ 55°C
Max Continuous Charge Current -10°C ~ 0°C: 0.2C
0°C ~ 45°C: 2C
Max Continuous Discharge Current -40°C ~ 0°C: 2C
0°C ~ 45°C: 2C
Weight 480 ± 50g

Key Features & Advantages
  • Ultra-Wide Temperature Operation: Delivers reliable discharge from -40°C to 55°C and stable charging from -10°C to 45°C, ensuring uninterrupted performance across diverse climatic conditions.
  • Long Cycle Life: Utilizes safe and long-life lithium iron phosphate (LFP) battery technology, delivering a cycle life of up to 3,000 cycles for extended operational reliability.
  • High Rate Capability: Supports 2C continuous charge and discharge, providing efficient power delivery for demanding applications.

  • Fast Charging: Saves time and improves operational efficiency, enhancing charge/discharge performance and reducing downtime.

APPLICATION SCOPE: Electric motorcycles, portable energy storage, lead-acid battery replacement, AGV systems, and humanoid robots.
PACKAGING: Industrial standard sealed structural containers, with individual protective insulation tailored for square prismatic cell formats to ensure safe transport and handling.
IMPORTANT NOTICE: For optimal performance and service life, store cells in a cool, dry environment. Avoid prolonged exposure to temperatures above 55°C or below -40°C during operation. Do not disassemble, deform, short-circuit, or incinerate the cells. Ensure appropriate cell balancing and protection circuitry is utilized in battery pack assembly.
