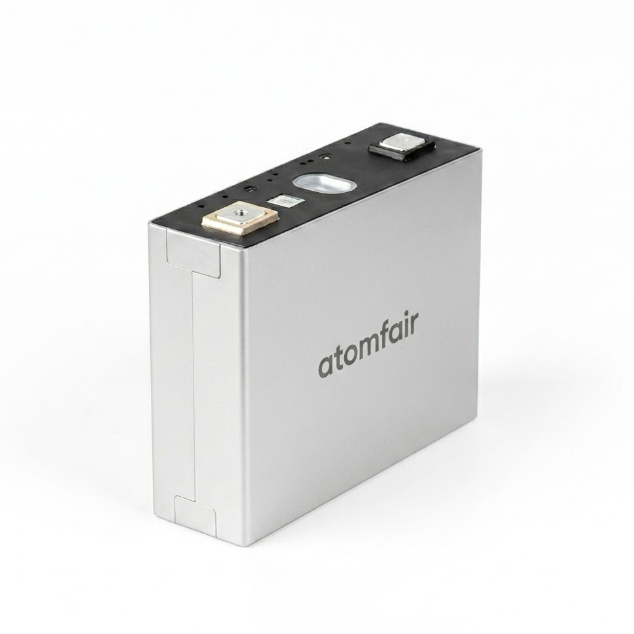

Dual-configuration 100Ah LFP prismatic battery cells in square aluminum cases featuring rigid screw terminals for stationary energy storage.

3.20V 100Ah LFP Prismatic Cell 3000 Cycle

Price range: $153.00 through $156.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® 3.20V 100Ah LFP prismatic cell series. Commercial grade with ≥3000 cycles at 100% DOD. Two models: 160Wh/kg and 155Wh/kg. Order now.

Category:
Tags:
Brands:

Description

3.20V 100AH LFP PRISMATIC CELL SERIES | ATOMFAIR

COMMERCIAL GRADE · PRODUCTION

Product Overview
The ATOMFAIR® 3.20V 100Ah LFP Prismatic Cell Series offers two high‑capacity square aluminum case batteries based on safe and durable lithium iron phosphate (LFP) chemistry. Both models are optimized for energy storage systems (ESS) with 1.0C continuous charge/discharge and a cycle life of ≥3000 cycles at 100% DOD (80% retention). The series provides flexible dimensional options: Model A (47.8×174.2×132.3 mm, 160Wh/kg) for higher energy density, and Model B (47.8×174.2×120.3 mm, 155Wh/kg) for a slimmer profile. Ideal for residential, commercial, and industrial stationary storage, backup power, and off‑grid applications. For bulk inquiries or official volume quotations, please contact us via email at inquiry@atomfair.com.

Technical Specifications

PARAMETER MODEL A (AFLPC100160) MODEL B (AFLPC100155)
1. Core Device & Electrochemical Design
Cell Chemistry Lithium Iron Phosphate (LFP) Lithium Iron Phosphate (LFP)
Nominal Voltage 3.20 V 3.20 V
2. Cell Capacity & Kinetic Transport Matrix
Nominal Capacity 100 Ah 100 Ah
Weight Energy Density 160 Wh/kg 155 Wh/kg
Max Continuous Charge Rate 1.0C 1.0C
Max Continuous Discharge Rate 1.0C 1.0C
3. Cycle Life Parameters
Cycle Life (@25°C, 1C/1C, 100% DOD) ≥ 3000 cycles (80% Retention) ≥ 3000 cycles (80% Retention)
4. Physical Package & Mechanical Metrics
Dimensions (mm) with Terminal 47.8 × 174.2 × 132.3 47.8 × 174.2 × 120.3
Weight ≤ 2.25 kg ≤ 2.15 kg
Case Material Square Prismatic Aluminum Casing Square Prismatic Aluminum Casing
Manufacturing Rules Processed under strict thermal stability and premium industrial packaging compliance conditions
Alternative Options Explore our custom multi-cell configuration blueprints. For system enclosures requiring unique physical metrics or project-level volume pricing arrays, please contact our support team.


Key Features & Advantages
  • Long Cycle Life: ≥3000 cycles at 1C/1C, 100% DOD, 80% capacity retention – built for reliable daily cycling in ESS.
  • Dual Form Factors: Choose higher energy density (160Wh/kg, 132.3mm height) or slimmer profile (155Wh/kg, 120.3mm height) to fit different system enclosures.
  • Intrinsic Safety: LFP chemistry delivers exceptional thermal stability and abuse tolerance.
  • Stable 1C Rate: Reliable 1.0C continuous charge and discharge for consistent power delivery.
  • Robust Aluminum Case: Square prismatic design with terminal for easy stacking, structural rigidity, and efficient heat dissipation.

APPLICATION SCOPE: Residential & commercial energy storage systems (ESS), telecom backup power, UPS systems, solar battery banks, off‑grid energy storage networks, and low‑speed electric vehicle auxiliary power architectures.
PACKAGING: Humidity‑controlled vacuum sealed packaging, individual cell separation isolation within premium anti‑static foam lined transport cartons. Custom heavy-duty palletized arrangements available for bulk industrial shipments.
IMPORTANT NOTICE: Always deploy a dedicated battery management system (BMS) with configured over‑discharge, over‑charge, short‑circuit, and automatic cell balancing protection algorithms. Charge strictly within the manufacturer’s recommended voltage window boundaries. Do not exceed the continuous 1.0C rate design limits. Store and operate battery hardware exclusively within recommended thermal spectrums to preserve maximum nominal cycle life.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Safe storage requires a dry, non-conductive environment to prevent short circuits. Proper handling includes inspecting the cell for damage before installation.

  • General Safety: Store lithium iron phosphate cells in a cool, dry location away from heat sources and flammable materials.

Follow these steps to safely inspect, confirm specifications, and connect the cell. Proper initialization prevents damage and ensures reliable operation.

Required Equipment: Battery management system (BMS) rated for 1.0C continuous current

  1. Physical Inspection
    Inspect the cell for any physical damage or deformation prior to installation.
  2. Voltage Verification
    Confirm the cell's nominal voltage of 3.20V matches the system requirement using a calibrated multimeter.
  3. Current Rate Configuration
    Set the BMS to limit charge and discharge current to a maximum of 1.0C (100A) as specified.

What is the cycle life trade-off between the 160 Wh/kg and 155 Wh/kg models of the 3.20V 100Ah LFP prismatic cell?

Both models deliver ≥3000 cycles at 100% DOD with 80% capacity retention under 1C/1C cycling at 25°C, so there is no cycle life trade-off between the two form factors. The 160 Wh/kg Model A (47.8×174.2×132.3 mm) offers higher energy density in a thicker package, while the 155 Wh/kg Model B (47.8×174.2×120.3 mm) provides a slimmer profile for space-constrained enclosures without sacrificing longevity.

Can the ATOMFAIR 3.20V 100Ah LFP prismatic cell be integrated into an existing 48V battery bank without modifying the BMS?

Yes, but only if the existing BMS supports a nominal 3.20V LFP cell with a 1.0C continuous charge/discharge rate and includes over-discharge, over-charge, short-circuit, and cell balancing protection as specified in the product notice. The cell's square aluminum case and terminal design facilitate stacking, but the BMS must be configured for LFP chemistry to avoid voltage mismatch and ensure safe operation within the manufacturer's recommended voltage window.

What are the storage and handling requirements for the ATOMFAIR 3.20V 100Ah LFP prismatic cell before installation?

Cells must be stored in humidity-controlled vacuum sealed packaging with individual isolation in anti-static foam lined cartons to prevent moisture ingress and short circuits. Pre-condition cells at a suitable temperature before first use, and avoid mechanical deformation or exposure to temperatures outside the recommended operating range to preserve cycle life. Always use a dedicated BMS with cell balancing protection during storage if cells are connected.

This 3.20V 100Ah LFP prismatic cell series delivers ≥3000 cycles at 100% DOD with 80% capacity retention, offers two dimensional variants for enclosure matching, but requires an external BMS and is limited to 1.0C continuous charge/discharge, making it unsuitable for high-rate applications.

Positive

  • Long cycle life at 100% DOD: ≥3000 cycles at 1C/1C, 100% depth of discharge with 80% capacity retention, enabling reliable daily cycling in stationary ESS applications.
  • Dual form factors for design flexibility: Two thickness options (132.3 mm at 160 Wh/kg or 120.3 mm at 155 Wh/kg) allow engineers to optimize energy density or slimness for specific system enclosures.

Trade-offs

  • Requires external BMS with protection: A dedicated battery management system with over-discharge, over-charge, short-circuit, and cell balancing protection is mandatory for safe operation.
  • Continuous rate limited to 1.0C: Maximum continuous charge and discharge rate is 1.0C (100A), restricting use in high-power or pulsed-load applications beyond this threshold.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Model

AFLPC100160, AFLPC100155
