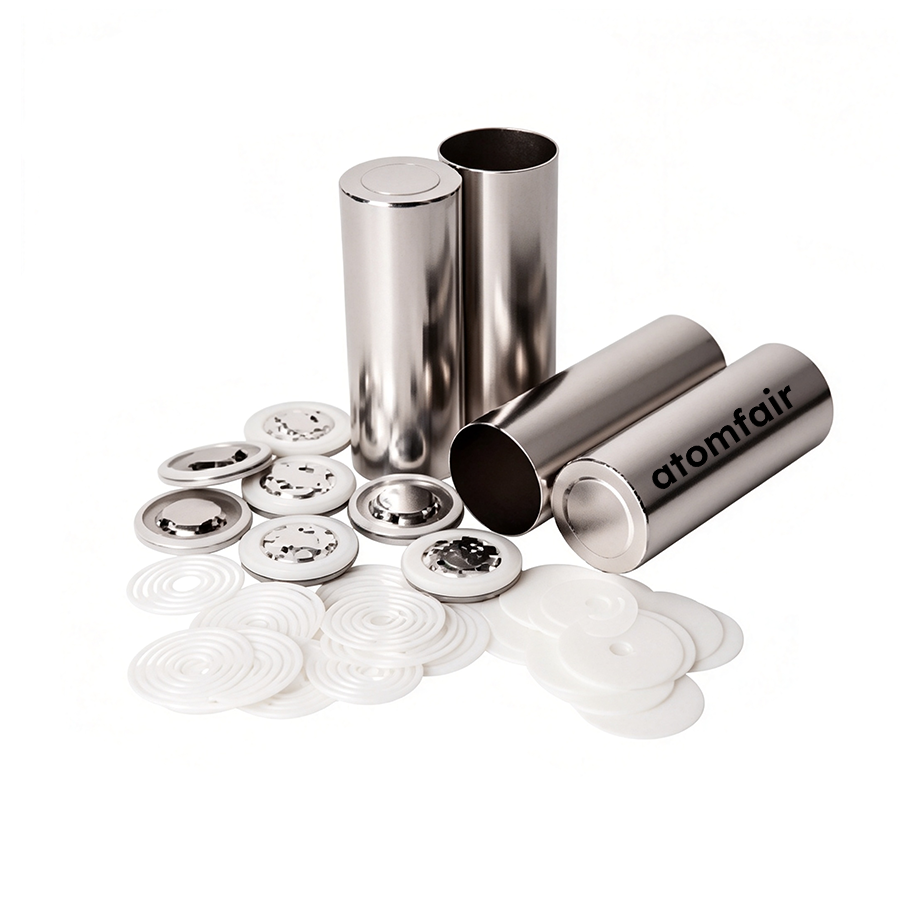

ATOMFAIR® 18650 CYLINDRICAL CELL CAN ASSEMBLY 100 SETSRESEARCH & PRODUCTION GRADE
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
This assembly kit is intended for 18650 lithium-ion battery cell fabrication and contains precision safety components. Improper storage or handling may compromise seal integrity, corrosion resistance, and safety device performance.
- Storage Environment: Store the assembly in a well-ventilated dry space at 0–35°C and ≤75%RH, away from fire, heat sources, and corrosive gases to maintain component integrity.
- Shelf Life: Use the assembly within one year of receipt to ensure compliance with specified burst and cut-off pressure tolerances.
- Gluing Process: Apply uniform coating of adhesive on both inner and outer sides of the sealing ring during cell assembly to prevent electrolyte leakage.
- Safety Device Integrity: Do not exceed the PPTC non-actuation current of 3.0A or the cap internal resistance range of 12-20 mΩ to avoid premature safety device activation.
- Corrosion Resistance: The assembly meets salt spray test Grade 10 after 5 hours; avoid prolonged exposure to high-humidity or corrosive atmospheres.
How do the PPTC non-actuation current (3.0A) and actuation current (6.0A) ensure overcurrent protection without nuisance tripping in 18650 cells?
The PPTC is designed with a 3.0A non-actuation current to allow normal operation currents without tripping, and a 6.0A actuation current to protect against overcurrent. At 10A, the maximum actuation time is less than 8 seconds. The cap internal resistance is 12–20 mΩ and PPTC resistance is 12–15 mΩ, adding minimal resistance to the cell.
What are the dimensional constraints for integrating the pre-welded aluminum tab (15×3×0.15 mm) with standard 18650 cell winding and can welding processes?
The electrode tab dimensions are 15×3×0.15 mm (aluminum), pre-welded to the safety cap assembly. This tab must align with cell winding and can welding without interfering with the insulating ring (13.2×0.90×0.3 mm) and sealing ring (17.40×4.3×0.5 mm). The cut-off and burst pressures (0.9–1.4 MPa and 1.8–2.5 MPa) constrain the mechanical integrity after welding.
What storage conditions are required to maintain the safety and shelf life of the nickel-plated carbon steel cell can assembly?
Store at ambient temperature 0–35°C with relative humidity ≤75% RH in a well-ventilated, dry space free of corrosive gases, away from fire and heat sources. Shelf life is 1 year under these conditions. The salt spray test ensures Grade 10 corrosion resistance after 5 hours, indicating robust nickel plating.
This 18650 cell can assembly kit provides pre-welded aluminum tabs and all structural components for cylindrical cell fabrication, with specified safety cap performance including cut-off pressure of 0.9-1.4 MPa and burst pressure of 1.8-2.5 MPa.
Positive
- Pre-welded aluminum tabs for efficiency: The cap assembly includes a pre-welded 15mm × 3mm × 0.15mm aluminum tab, reducing secondary processing steps and enabling convenient welding operations for battery manufacturers.
- Complete assembly kit for immediate use: Each set contains all matched structural parts including cell can, safety cap assembly, and insulating gaskets, ready for cell filling and welding without additional component sourcing.
Trade-offs
- Limited shelf life of 1 year: The assembly has a specified shelf life of 1 year under proper storage conditions, necessitating timely usage and inventory rotation to avoid performance degradation.
- Controlled storage environment required: Storage requires ambient temperature 0–35°C and relative humidity ≤75%RH in a well-ventilated, dry space free of corrosive gases, away from fire and heat sources to maintain component integrity.
