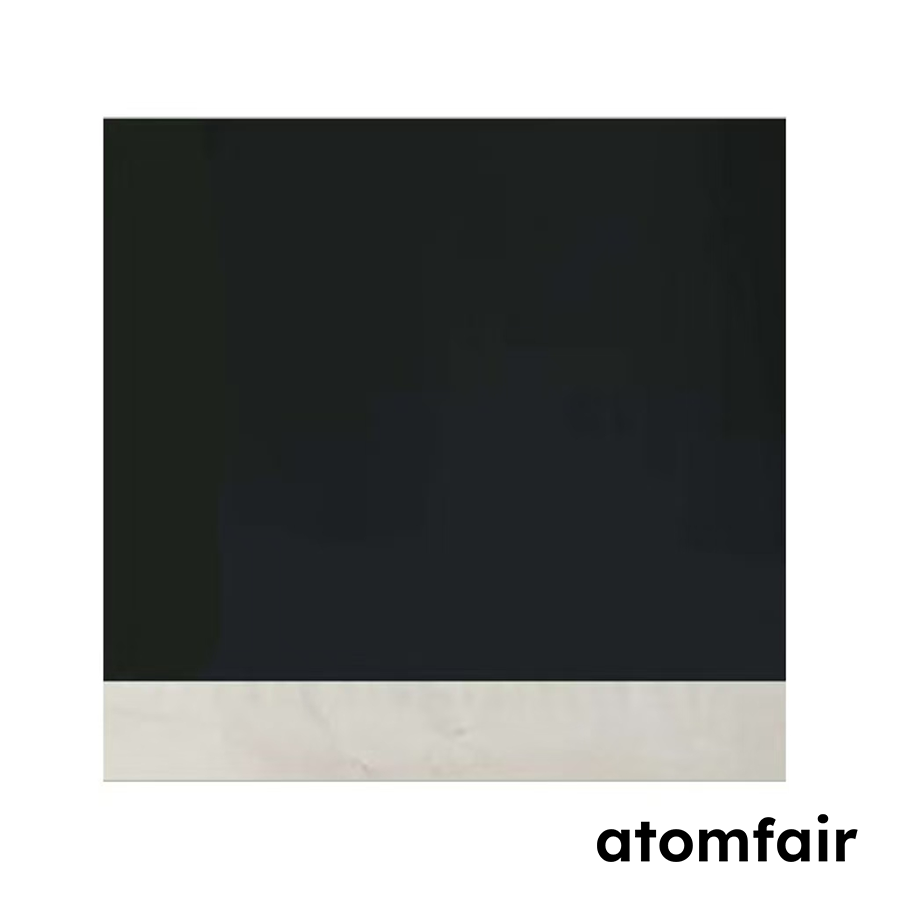

A square ATOMFAIR® NVP-D05 dry process double-sided cathode sheet with a silver metal bottom border.
Na3V2(PO4)3 NVP Double Side Cathode 60 mg/cm² Dry Process 5 Pack NVP-D05 - Image 2
Na3V2(PO4)3 NVP Double Side Cathode 60 mg/cm² Dry Process 5 Pack NVP-D05 - Image 3

Na3V2(PO4)3 NVP Double Side Cathode 60 mg/cm² Dry Process 5 Pack NVP-D05

$109.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

The highest capacity double-side electrode with 60 mg/cm² areal density manufactured using dry process. It offers maximum active material loading for high-energy applications.

Quantity Price
1 – 4 $109.00
5+ $99.00
SKU: AFMSXNCM600
Category:
Tags: , , , , , ,
Brands:

Description

Atomfair NVP-D05 Sodium Vanadium Phosphate (NVP) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair NVP-D05 is an advanced Sodium Vanadium Phosphate (NVP) electrode sheet featuring an ultra-high density double-sided coating of 60 mg/cm². Manufactured via a specialized dry process, this material is specifically engineered for high-performance sodium-ion battery R&D. It ensures superior batch consistency for rigorous laboratory testing, material evaluation, and precision electrochemical performance analysis.

Technical Specifications
PARAMETER DETAILS
Product Code D05
Coating Material Sodium Vanadium Phosphate (NVP)
Active Material Ratio 94.50%
Coating Density 60 mg/cm²
Coating Area 120 * 90 mm
Coating Type Double-sided
Substrate Material Carbon-coated aluminum foil
Current Collector Areal Density 4.4 mg/cm²
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 90 * 140 mm
Compaction Density 1.22 g/cm³
Specific Capacity 110 mAh/g
Coating Process Dry Process

Key Features & Advantages
  • Innovative Dry Process: Achieves an ultra-high coating density (60 mg/cm²) while maintaining structural integrity and electrochemical accessibility.
  • Enhanced Conductivity: Utilizes carbon-coated substrate to optimize charge transfer kinetics and interface stability.
  • High Active Material Loading: A 94.50% ratio tailored for next-generation sodium-ion battery benchmarking.
  • Full Customizability: Flexible parameters for coating thickness, width, and foil dimensions are available to meet specific research protocols.

APPLICATION SCOPE: Sodium-ion battery R&D, electrochemical performance analysis, and material characterization.
PACKAGING: Standard pack includes 5 sheets/pack to ensure batch consistency.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard baking protocol: 12 hours under vacuum at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
