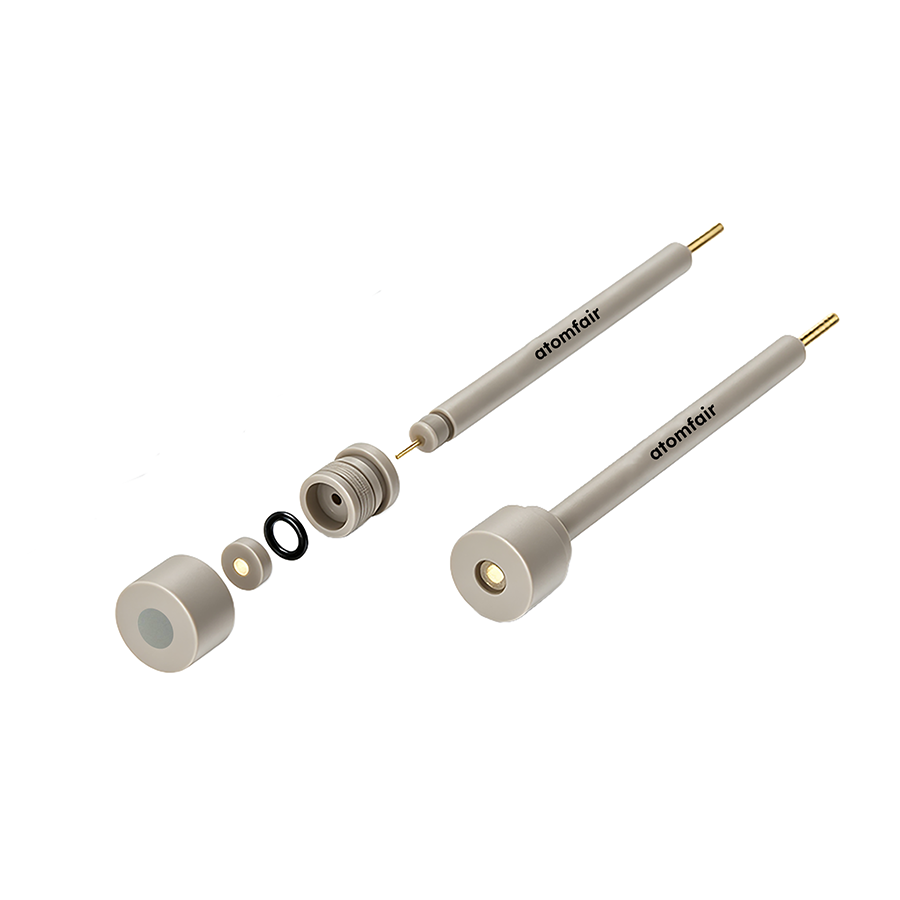

Multifunctional Combination Zinc Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||
The zinc disk surface is highly susceptible to oxidation and contamination from ambient moisture and oxygen. The electrode must be stored in sealed containers and handled exclusively within an anhydrous inert atmosphere to maintain surface integrity before electrochemical use.
- Surface Contamination Sensitivity: Exposure to ambient air can cause surface oxidation or contamination, compromising electrochemical performance and requiring repolishing or replacement.
- Inert Atmosphere Requirement: All handling, storage, and transfer of the electrode should be performed in a glovebox or equivalent environment filled with dry argon or nitrogen to prevent degradation.
What are the performance trade-offs when selecting between 2 mm and 4 mm diameter zinc working electrodes for electrochemical measurements?
The smaller diameter (2 mm) is optimized for micro-electrode sensing with higher spatial resolution but lower total current output; the larger diameter (4 mm) provides higher current for macro-electrode bulk electrolysis at the cost of reduced spatial resolution. Both diameters maintain an electrode head thickness of less than 4 mm.
What constraints exist when integrating this zinc working electrode with SEM or AFM systems for correlative analysis?
The electrode head thickness of less than 4 mm enables direct integration with SEM or AFM systems without sample transfer. However, because the electrode is highly sensitive to surface contamination, it must be handled exclusively within an anhydrous inert environment before use to prevent phase contamination that could compromise both electrochemical and microscopic data.
What are the critical handling and storage requirements for the ATOMFAIR Multifunctional Combination Zinc Working Electrode?
The electrode is highly sensitive to surface contamination; it must be stored in sealed containers and handled exclusively within an anhydrous inert environment before electrochemical validation to prevent phase contamination or degradation. The gold-plated copper rod provides enhanced oxidation resistance but does not eliminate the need for inert handling.
The ATOMFAIR Multifunctional Combination Zinc Working Electrode enables correlative electrochemical and microscopic analysis on the same electrode surface, but demands strict handling in anhydrous inert environments to prevent surface contamination and degradation.
Positive
- Correlative Electrochemical-Microscopic Analysis: Electrode head thickness under 4 mm permits direct integration with SEM or AFM systems, allowing structural and topographical correlation with electrochemical data from the identical electrode location without sample transfer.
- Gold-Plated Corrosion Protection: The gold-plated copper rod (1.5×15 mm) enhances oxidation resistance and maintains stable conductivity over extended use, improving long-term reliability in repetitive measurements.
Trade-offs
- Surface Contamination Sensitivity: The zinc electrode is highly sensitive to surface contamination; containers must remain tightly sealed or handling must occur exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
