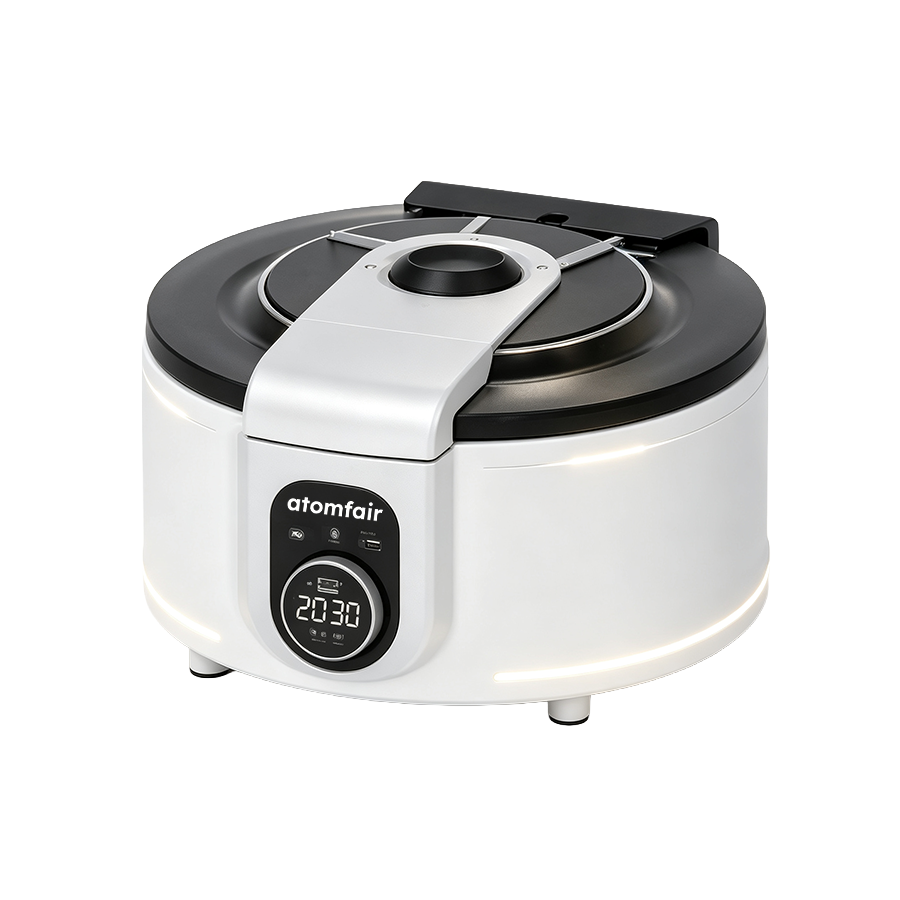

Low-Speed Centrifuge SpinCore M 0436 E 3500 rpm ATOMFAIR®

SpinCore M 0436 E Low-Speed Centrifuge, 100-3500 rpm, step 100 rpm

Product Type: Low-Speed Centrifuge

Research-grade laboratory product

Product Overview

Low-Speed Centrifuge with 100-3500 rpm, step 100 rpm, 2260 × g and 12 x 10 mL internal; 12 x 15 mL external; 12 x 15 mL; 6 x 50 mL; 36 x 7 mL; 2 x 96-well microplates supports laboratory centrifugation, sample separation and tube-processing workflows.

The specification table keeps speed, RCF, rotor capacity, timing, motor, safety, power, dimensional and temperature data visible for configuration review.

Performance Features

Speed capability of 100-3500 rpm, step 100 rpm supports method-specific centrifugation.
Maximum RCF of 2260 × g supports force-based separation review.
Rotor capacity of 12 x 10 mL internal; 12 x 15 mL external; 12 x 15 mL; 6 x 50 mL; 36 x 7 mL; 2 x 96-well microplates supports tube and throughput matching.
Listed timer, motor, safety, power and dimensional parameters support procurement and installation confirmation.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-SPCENM0436E-100TO3500RPM
Speed range	100-3500 rpm, step 100 rpm
Maximum RCF	2260 × g
Speed accuracy	±20 rpm
Rotor capacity	12 x 10 mL internal; 12 x 15 mL external; 12 x 15 mL; 6 x 50 mL; 36 x 7 mL; 2 x 96-well microplates
Time setting	30 s to 99 min 59 s, continuous operation
Display	LCD
Noise	≤55 dB
Acceleration / deceleration	6 up / 6 down
Power	100-240 V, 50/60 Hz, 170 W
Dimensions	481.5 x 414 x 253.5 mm
Weight	15 kg

Selection and Use Notes

Confirm rotor, adapter and tube compatibility before quotation.
Confirm speed, RCF, temperature requirement and sample-container format against the selected method.

PROCUREMENT CHECK: Confirm model, working range, compatibility, consumables and required configuration before quotation.

DOCUMENTATION REVIEW: Product specifications and configuration details are reviewed against laboratory use requirements.

ACCESSORY MATCHING: Compatible accessories, replacement parts and consumables can be matched according to the selected configuration.

RFQ NOTE: Include the required model, configuration and quantity when requesting quotation support.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, platform compatibility or configuration confirmation, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

Operate this centrifuge only with a power supply of 100-240 V at 50/60 Hz to avoid electrical damage. Verify rotor adapter tube compatibility before each run to ensure safe operation.

Power Supply: Connect only to a power source providing 100-240 V AC at 50/60 Hz.
Rotor Compatibility: Use only rotors listed in the specification table and ensure adapters are properly rated.
Sample Container Compatibility: Confirm sample containers are compatible with selected rotors and rated for maximum RCF of 2260 × g.
Speed Setting: Set speed within range of 100-3500 rpm in increments of 100 rpm.
Time Setting: Set run time between 30 seconds and 99 minutes 59 seconds as required.

FAQ

How does the 2260 × g maximum RCF constrain protocol selection given the 3500 rpm top speed?

The 2260 × g maximum RCF at 3500 rpm places this centrifuge firmly in the low-speed class, limiting its use to pellet protocols requiring moderate g-force. The source states a speed accuracy of ±20 rpm and a step resolution of 100 rpm, meaning precise force reproducibility is available only within that sub-2300 × g envelope. Researchers targeting separations above 2500 × g, such as certain DNA precipitation or protein pelleting steps, would need a higher-RCF instrument.

Can the SpinCore M 0436 E accept 96-well PCR plates, or is it limited to the listed microplate format?

The specified rotor capacity includes '2 x 96-well microplates' but does not explicitly state PCR plates or deep-well blocks. The source lists the internal rotor as 12 x 10 mL and the external as 12 x 15 mL, with the 96-well microplate carrier as a separate capability. Users must confirm that their specific plate height, skirt type, and sealing film are compatible with the rotor's microplate adapters before use.

What electrical and environmental infrastructure is required to install this centrifuge in a shared laboratory?

The centrifuge operates on 100-240 V, 50/60 Hz at 170 W, making it compatible with standard single-phase laboratory outlets worldwide. The noise level of ≤55 dB permits installation in open bench areas without acoustic isolation. The unit measures 481.5 x 414 x 253.5 mm and weighs 15 kg, so it fits on a standard benchtop but requires adequate clearance for heat dissipation and lid opening.

Assessment

The SpinCore M 0436 E is a low-speed centrifuge with a 100–3500 rpm range and 2260 × g max RCF, supporting multiple rotor configurations including microplates and tubes up to 50 mL, but limited to low-g-force applications and requiring careful rotor-adapter compatibility checks.

Positive

Multi-format rotor versatility: Rotor capacity accommodates 6 x 50 mL tubes, 36 x 7 mL tubes, and 2 x 96-well microplates, enabling flexible batch processing across different sample container types without hardware change.
Fine speed step control at 100 rpm: Speed increments of 100 rpm over a 100–3500 rpm range allow precise matching to protocol-specific centrifugal force requirements within low-speed applications.

Trade-offs

Low maximum RCF limits applications: At 2260 × g, the centrifuge is restricted to low-force separations such as pelleting large particles or cells, and cannot be used for high-speed subcellular fractionation or DNA/RNA precipitation requiring >5000 × g.
Rotor and adapter compatibility prerequisite: User must verify rotor, adapter, and tube compatibility before use; mismatched consumables can lead to imbalance, reduced separation efficiency, or mechanical stress on the rotor assembly.
