Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||
This electrode is highly sensitive to surface contamination and requires storage in an anhydrous inert environment to prevent degradation. Proper handling is critical to maintain electrode surface consistency for electrochemical experiments.
- Surface Contamination Sensitivity: The electrode surface is highly sensitive to contamination and must be protected from exposure to ambient air and particulates.
- Anhydrous Inert Atmosphere Requirement: Storage or handling must be performed within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
- Sealed Container Storage: Containers must be kept tightly sealed when not in use to maintain the electrode's surface integrity.
How does the selection of electrode diameter (2–6 mm) affect electrochemical performance and experimental suitability?
The available diameters (2, 3, 4, 5, and 6 mm) allow researchers to balance between micro-electrolysis and bulk solution analysis. Smaller diameters minimize ohmic drop and support studies with limited sample volumes, while larger diameters provide higher current signals for bulk analysis. The product description explicitly states that the diameter choices accommodate various experimental requirements from micro-electrolysis to bulk solution analysis.
Is this silver disk working electrode compatible with organic solvent-based electrolytes and non-aqueous electrochemical systems?
Yes, the PTFE or PEEK body provides excellent chemical resistance, making it suitable for organic and non-aqueous electrolytes. The technical specifications list both PTFE and PEEK as insulative body materials, which are known for their chemical inertness and stability in a wide range of solvents. However, the electrode is highly sensitive to surface contamination and must be handled in anhydrous inert environments to prevent degradation before use.
What are the mandatory storage and handling conditions to prevent surface contamination and maintain electrode reproducibility?
The product must be stored in tightly sealed containers and handled exclusively within an anhydrous inert environment to avoid phase contamination or degradation before electrochemical validation. The packaging includes secure individual research-grade protective containers with shock-absorption parameters. The important notice emphasizes that the electrode is highly sensitive to surface contamination, and any exposure to ambient moisture or air can compromise performance.

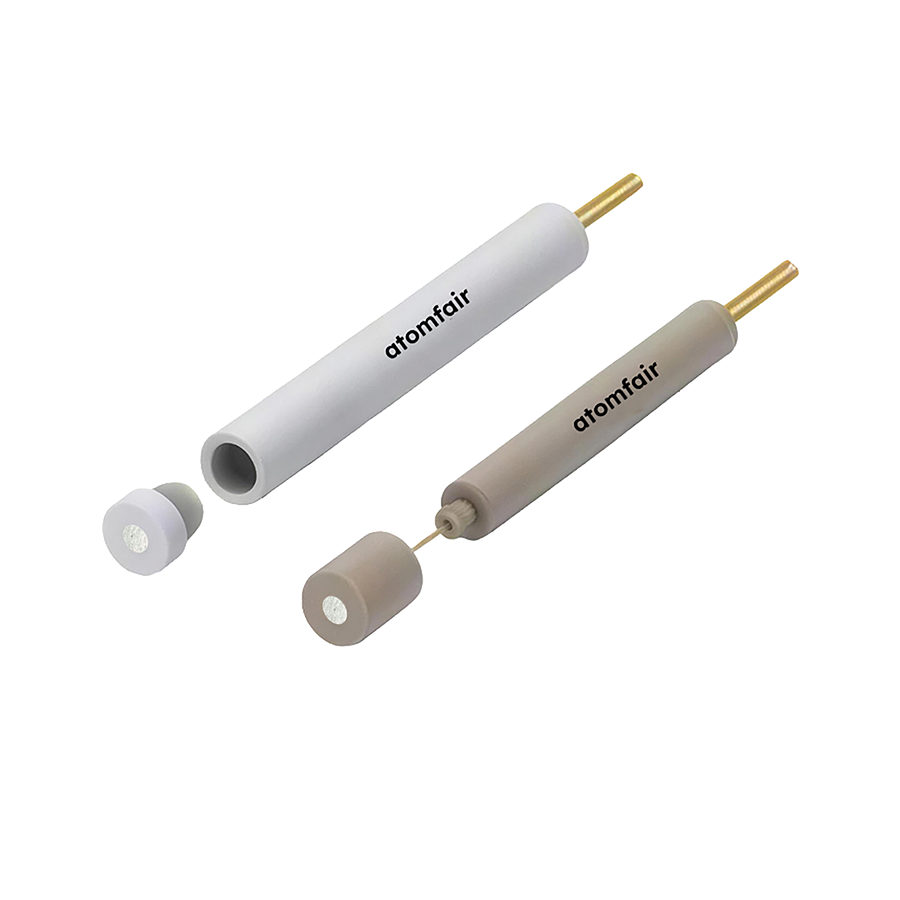

The ATOMFAIR Detachable Electron Microscopy Silver Disk Working Electrode features a user-replaceable head design for electrochemical halide detection and reference applications, with premium silver construction and a gold-plated copper rod ensuring low contact resistance. However, the electrode is highly sensitive to surface contamination and must be stored in anhydrous inert environments to maintain performance.
Positive
- Detachable head design for surface renewal: User-replaceable electrode head extends body service life and ensures consistent surface quality in microscopy-coupled experiments without replacing the entire electrode.
- Excellent electrical conductivity: Premium-grade silver electrode material with gold-plated copper rod minimizes ohmic drop and electrical resistance, delivering reproducible electrochemical responses.
Trade-offs
- Surface contamination sensitivity: Electrode surface is highly sensitive to contamination; storage requires tightly sealed containers or handling exclusively within anhydrous inert environments to prevent degradation before validation.
