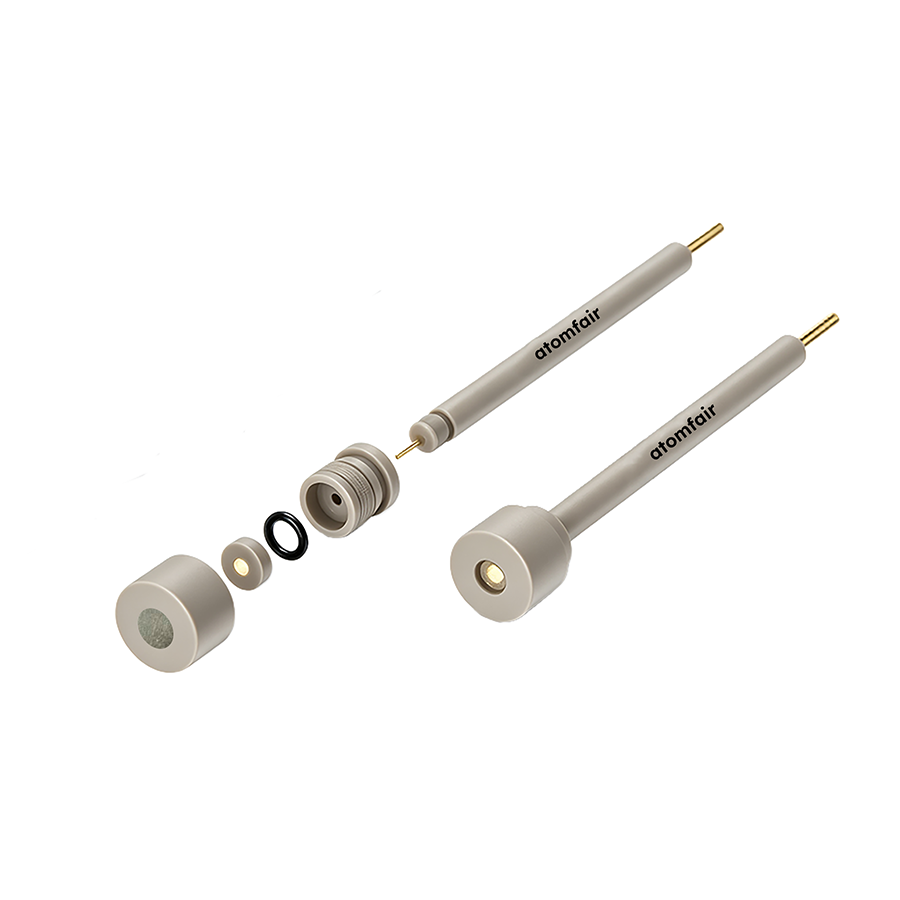

Multifunctional Combination Palladium Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||
The ATOMFAIR Palladium Working Electrode is critically sensitive to surface contamination and requires protection from ambient exposure. Handling must be performed within an anhydrous inert environment or sealed containers to prevent degradation.
- Surface Contamination Sensitivity: The electrode surface is highly susceptible to contamination from ambient atmosphere and must be kept sealed until use.
- Inert Atmosphere Requirement: All handling and storage should be conducted in an anhydrous inert environment to avoid phase contamination or degradation.
How does the palladium working electrode's hydrogen absorption property influence its catalytic activity for hydrogen evolution reactions relative to platinum or gold electrodes?
Palladium uniquely absorbs hydrogen into its lattice, altering its surface electronic structure and enhancing hydrogen evolution reaction kinetics compared to platinum or gold. The source states that palladium offers 'unique hydrogen absorption properties and excellent catalytic activity for hydrogen evolution,' making it particularly suitable for studies of hydrogen sorption/desorption and electrocatalysis.
What are the critical constraints for using this palladium working electrode in correlative electrochemical-SEM/AFM experiments?
The electrode head thickness must be less than 4 mm to fit within SEM/AFM sample chambers, and the modular detachable configuration allows the head to be transferred directly from electrochemical cell to microscope without disturbing the surface. The source specifies 'electrode head thickness is less than 4mm' and 'direct integration with SEM or AFM systems' for correlative analysis.
What specific storage and handling procedures are required to prevent surface contamination of the palladium working electrode before electrochemical validation?
The electrode must be kept in its sealed container or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation. The source warns that it is 'highly sensitive to surface contamination' and advises keeping containers tightly sealed or handling in anhydrous inert environment.
The ATOMFAIR Multifunctional Combination Palladium Working Electrode (SKU AF-EC-E-PD12-CONF-STD2) enables correlative electrochemical-microscopic analysis due to its sub-4 mm head thickness, and provides unique hydrogen sorption properties for electrocatalytic research, but requires strict contamination control in inert environments and is limited to a single 3 mm diameter configuration.
Positive
- Correlative Electrochemical-Microscopic Analysis: Electrode head thickness under 4 mm allows direct mounting in SEM/AFM systems, enabling structural and topographical correlation with electrochemical data from the same electrode location without sample transfer.
- Specialized Palladium Material with Hydrogen Absorption: High-grade palladium provides unique hydrogen sorption/desorption characteristics and catalytic activity for hydrogen evolution and organic oxidation reactions, suitable for electrocatalytic research.
Trade-offs
- Surface Contamination Sensitivity: The electrode is highly sensitive to surface contamination; containers must be kept tightly sealed or handled exclusively in an anhydrous inert environment to prevent phase contamination before electrochemical validation.
- Limited Diameter Selection: The electrode is available only with a 3 mm diameter, which may not suit all experimental scales or applications requiring larger or smaller electrode areas.
