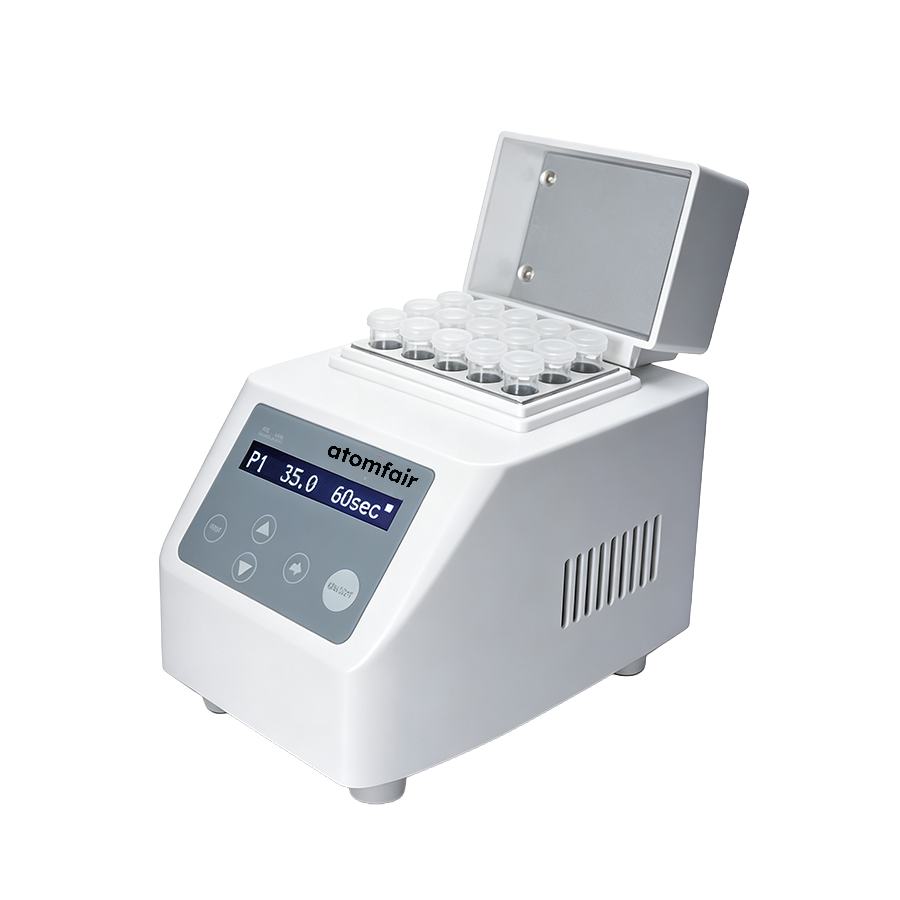

Mini HCL100 Mini Dry BathProduct Type: Temperature control instrument
Research-grade temperature control platform
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
The instrument requires compatible heating blocks or modules matched to sample vessel format and size. Operation is limited to 10-40°C ambient temperature and <80% RH to maintain temperature accuracy and prevent condensation.
- Block Compatibility: Only use heating blocks or modules explicitly confirmed compatible with the AF-TC-MINI-HCL100 model to ensure proper thermal contact and temperature uniformity.
- Environmental Limits: Operate the dry bath within 10-40°C ambient temperature and below 80% relative humidity to avoid performance degradation or internal condensation.
- Calibration Requirement: Perform user calibration mode when temperature accuracy drifts beyond ±0.5°C or after replacing the heating block.
- Error Code Response: If an error code appears on the LCD, stop operation and consult the error code display support documentation before resuming.
- Heating and Cooling Rates: Allow up to 20 minutes for heating from 25°C to 100°C and up to 25 minutes for cooling from 20°C to 0°C; do not exceed maximum rates of 8°C/min heating and 3°C/min cooling.
This procedure covers initial setup, temperature and timer programming, and sample incubation using the dry bath. Ensure the instrument is placed on a stable, level surface within the specified environmental conditions.
Required Equipment: Compatible heating block or module, Sample vessels (tubes, vials, plates), Power supply (100-240 V AC to DC 12 V adapter)
- Select and Install Heating Block
Select a heating block that matches your sample vessel format and securely insert it into the dry bath block well. - Connect Power and Power On
Connect the DC 12 V power supply to the instrument and plug into a 100-240 V AC outlet, then press the power button to turn on the LCD display. - Set Target Temperature
Use the control buttons to set the desired incubation temperature within the range of 0 to 100 °C. - Set Timer Duration
Set the timer to the required duration in minutes or seconds (0 to 999) using the timer control mode. - Place Samples into Block
Once the block reaches the set temperature (indicated by stable display), place your sample vessels into the block wells. - Monitor Operation
Monitor the LCD for any error codes or calibration prompts during the run and adjust as needed. - End Program and Remove Samples
When the timer expires or the program completes, remove samples carefully using heat-resistant gloves if the block is hot.
Given the maximum heating rate of 8°C/min and cooling rate of 3°C/min, what are the implications for sequential heating and cooling protocols in workflows such as PCR or enzyme kinetics?
The Mini HCL100 exhibits an asymmetric thermal ramp: heating is more than 2.5 times faster than cooling (8°C/min versus 3°C/min). For protocols requiring rapid cooling between steps, such as PCR touchdown cycles or enzyme quench steps, the slower cooling rate will be the rate-limiting factor, extending total run time. Users should account for this asymmetry when designing temperature profiles that demand frequent or rapid cooling transitions.
Does the Mini HCL100 support user calibration and error code display for maintaining accuracy in long-duration incubation protocols, and how do these features integrate with laboratory quality control procedures?
Yes, the Mini HCL100 includes both user calibration mode and error code display as standard features. The user calibration mode allows on-site adjustment to maintain ±0.5 °C accuracy over time, while the error code display aids rapid troubleshooting during long incubations. These capabilities support compliance with laboratory quality control requirements by enabling traceable drift correction and immediate diagnostic feedback without external monitoring equipment.
What are the working temperature and humidity limits for the Mini HCL100, and does its low weight and compact footprint allow benchtop placement without additional ventilation or infrastructure?
The Mini HCL100 is specified for an operating environment of 10-40 °C and humidity <80% RH, which covers standard laboratory conditions. With dimensions of only 110 x 162 x 140 mm and a weight under 1 kg, it can be placed on any benchtop without special ventilation racks or cooling infrastructure. However, the unit should be kept away from direct heat sources and condensing humidity to avoid exceeding these limits.
The Mini HCL100 dry bath provides ±0.5°C accuracy from 0 to 100°C with rapid heating (≤20 min to 100°C) and cooling (≤25 min to 0°C) in a 110×162×140 mm footprint (≤1 kg), making it suitable for enzyme reactions and nucleic acid workflows. Its 100°C maximum and requirement for compatible heating blocks limit its use for high-temperature or non-standard vessel formats.
Positive
- Fast and accurate temperature control: Achieves ±0.5°C accuracy with 8°C/min heating and 3°C/min cooling, enabling rapid thermal equilibration for time-sensitive protocols.
- Compact, lightweight footprint: Dimensions of 110×162×140 mm and weight under 1 kg allow easy benchtop placement and portability in limited lab spaces.
Trade-offs
- Limited to 0–100°C range: Temperature setting is restricted to 0–100°C, making it unsuitable for sub-zero or high-temperature applications above 100°C.
- Requires compatible heating blocks: The system relies on user-provided blocks or modules; compatibility with specific tube/vial formats must be confirmed before ordering.
