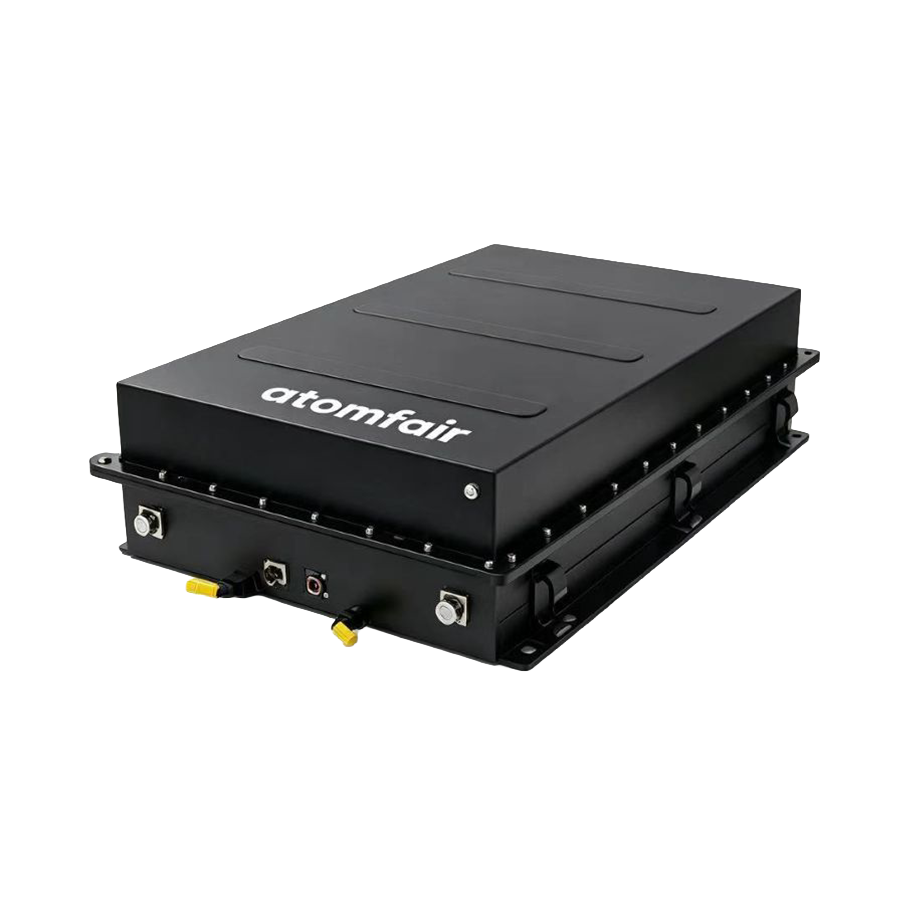

ATOMFAIR® Battery System 153.6V 206Ah for heavy-duty low-temperature vehicle battery systems and controlled laboratory

LFP Low-Temperature Truck Battery 153.6V 206Ah ATOMFAIR®

$3,970.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Commercial-grade LFP truck battery system with 153.6 V, 206 Ah, 31.64 kWh energy, IP67 sealing, liquid cooling, and -35°C to 60°C operation.

Category:
Tags: , ,
Brands:

Description

153.6V 206Ah LFP Low-Temperature Battery System for Heavy-Duty Trucks (31.64 kWh) | ATOMFAIR

COMMERCIAL GRADE PRODUCTION

Product Overview
The ATOMFAIR® 153.6V 206Ah LFP low-temperature battery system is a high-performance power solution specifically engineered for heavy-duty truck applications. With a rated energy of 31.64 kWh, rated voltage of 153.6 V, and configuration of 1P48S, this battery system delivers reliable and consistent power for demanding transportation operations. Utilizing advanced Lithium Iron Phosphate (LFP) chemistry, it ensures superior thermal stability, long cycle life, and enhanced safety. The IP67 protection rating and wide operating temperature range from -35°C to 60°C make it suitable for various harsh environments. With a recommended SOC operating range of 5% ~ 95% and voltage range of 120 ~ 175.2 V, this system provides flexible and efficient power management. The liquid cooling system maintains optimal thermal management for consistent performance under high-load conditions. This commercial-grade solution is ideal for heavy-duty trucks and commercial vehicles where reliability, safety, and operational efficiency are paramount.

Technical Specifications

PARAMETER SPECIFICATION
Battery Type Lithium Iron Phosphate (LFP)
Configuration 1P48S
Rated Voltage 153.6 V
Rated Energy 31.64 kWh
Rated Charge / Discharge Current 206 A
Recommended SOC Operating Range 5% ~ 95%
Voltage Range 120 ~ 175.2 V
Weight 215 ± 6.5 kg
Protection Level IP67
Operating Temperature Range -35°C ~ 60°C
Cooling Method Liquid Cooling
Dimensions (L*W*H) 1060 * 630 * 245 mm

Key Features & Advantages

  • Wide Operating Temperature Range: Performs reliably from -35°C to 60°C, ensuring stable power delivery in extreme climate conditions from freezing cold to scorching heat.

  • High Energy Capacity: Delivers 206Ah rated capacity with 31.64 kWh rated energy, providing extended driving range for heavy-duty truck applications.

  • High Protection Level:  IP67 rated for complete dust-tightness and protection against temporary immersion, ensuring durability in severe weather and off-road conditions.

  • LFP Chemistry: Employs Lithium Iron Phosphate battery technology with exceptional thermal stability, intrinsic safety, and long service life, delivering reliable performance and lower total cost of ownership for commercial fleets.

APPLICATION SCOPE: Heavy-duty trucks, commercial vehicles, long-haul transportation, and industrial electric vehicles.
PACKAGING: Securely packaged in robust industrial crates with protective internal cushioning and insulation layers to ensure safe transport and handling.
IMPORTANT NOTICE: For optimal performance and service life, operate the battery pack within -35°C to 60°C. Ensure all connectors are securely sealed to maintain IP67 protection. Do not disassemble, deform, short-circuit, or incinerate the pack. Use compatible LFP charging equipment only. In case of abnormality, disconnect immediately and contact qualified service personnel. Dispose of end-of-life batteries according to local regulations.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This battery system requires strict adherence to temperature and voltage limits to prevent performance degradation and safety hazards. Proper sealing and compatible charging equipment are mandatory to maintain IP67 protection and electrical safety.

  • Storage Temperature Range: Store the battery system within -35°C to 60°C to avoid thermal stress and capacity loss.
  • State of Charge Limitation: Maintain the battery pack state of charge between 5% and 95% to prevent over-discharge or overcharge damage.
  • Connector Sealing: Ensure all electrical connectors are securely sealed after each use to preserve IP67 dust and water ingress protection.
  • Charging Equipment Compatibility: Use only Lithium Iron Phosphate (LFP) specific chargers to avoid incompatible charging profiles and potential failure.
  • Disposal Protocol: Dispose of end-of-life battery packs according to local hazardous waste regulations to prevent environmental contamination.

This procedure outlines the essential steps to safely deploy and operate the high-voltage battery system. Follow each step in order to minimize risk of electrical shock, thermal runaway, or damage to the system.

Required Equipment: Compatible LFP charger, Liquid cooling system interconnect

  1. Inspect the battery pack
    Inspect the battery pack for any visible damage, swelling, or leakage before handling.
  2. Verify ambient conditions
    Verify that the ambient temperature is within the rated -35°C to 60°C range and ensure the area is dry.
  3. Connect liquid cooling system
    Connect the liquid cooling system to the battery pack's thermal management ports to enable active temperature regulation.
  4. Secure power connectors
    Securely mate the battery pack connectors to the vehicle's power distribution system, ensuring a tight seal.
  5. Connect to compatible charger
    Connect the battery pack to a compatible LFP charger using the designated charging cable.
  6. Monitor BMS during initial charge
    Monitor the battery management system (BMS) display for any fault codes or abnormal readings during initial charge.
  7. Disconnect upon abnormality
    Disconnect the charger and power distribution immediately if any abnormality is detected, and contact qualified service personnel.

How does the liquid cooling system enable the 153.6V LFP battery to maintain consistent performance under high-load conditions while operating across its -35°C to 60°C temperature range?

The liquid cooling system actively manages heat dissipation during high-rate discharge, ensuring the LFP cells stay within optimal thermal limits. According to the specifications, the system operates reliably from -35°C to 60°C and uses liquid cooling for thermal management under high-load conditions. This prevents capacity loss and prolongs cycle life even at continuous 206A current.

What are the electrical compatibility constraints when integrating this 153.6V 206Ah battery system into a heavy-duty truck’s power architecture?

The battery system requires compatible LFP charging equipment only and operates across a voltage range of 120–175.2V with a rated voltage of 153.6V and rated current of 206A. All connectors must be securely sealed to maintain the IP67 protection level. The 1P48S configuration means the truck’s electrical system must support a single series string of 48 cells with no parallel paths.

What infrastructure and safety precautions are required for storing and handling the 215 kg, 31.64 kWh IP67-rated LFP battery system?

The battery weighs 215±6.5 kg and must be stored and operated within -35°C to 60°C with a SOC between 5% and 95%. The system is IP67 rated for dust- and water-tightness. Safety precautions include not disassembling, deforming, short-circuiting, or incinerating the pack, and using only compatible LFP charging equipment. For disposal, end-of-life batteries must be handled according to local regulations.

The 153.6V 206Ah LFP battery system delivers 31.64 kWh with a wide -35°C to 60°C operating range and IP67 protection, but its 215 kg mass and liquid cooling requirement present handling and maintenance constraints for heavy-duty truck integration.

Positive

  • Extreme temperature tolerance: Operates reliably from -35°C to 60°C, enabling deployment in harsh climates without performance degradation.
  • IP67 ingress protection: Complete dust-tightness and temporary immersion protection ensure durability in wet, dusty, or off-road environments.

Trade-offs

  • High mass handling constraint: At 215 ± 6.5 kg, the battery pack requires mechanical lifting aids and reinforced mounting structures for safe installation in heavy-duty trucks.
  • Liquid cooling infrastructure dependency: The integrated liquid cooling system demands a compatible coolant loop and regular maintenance, adding complexity versus passive thermal management alternatives.
