Description

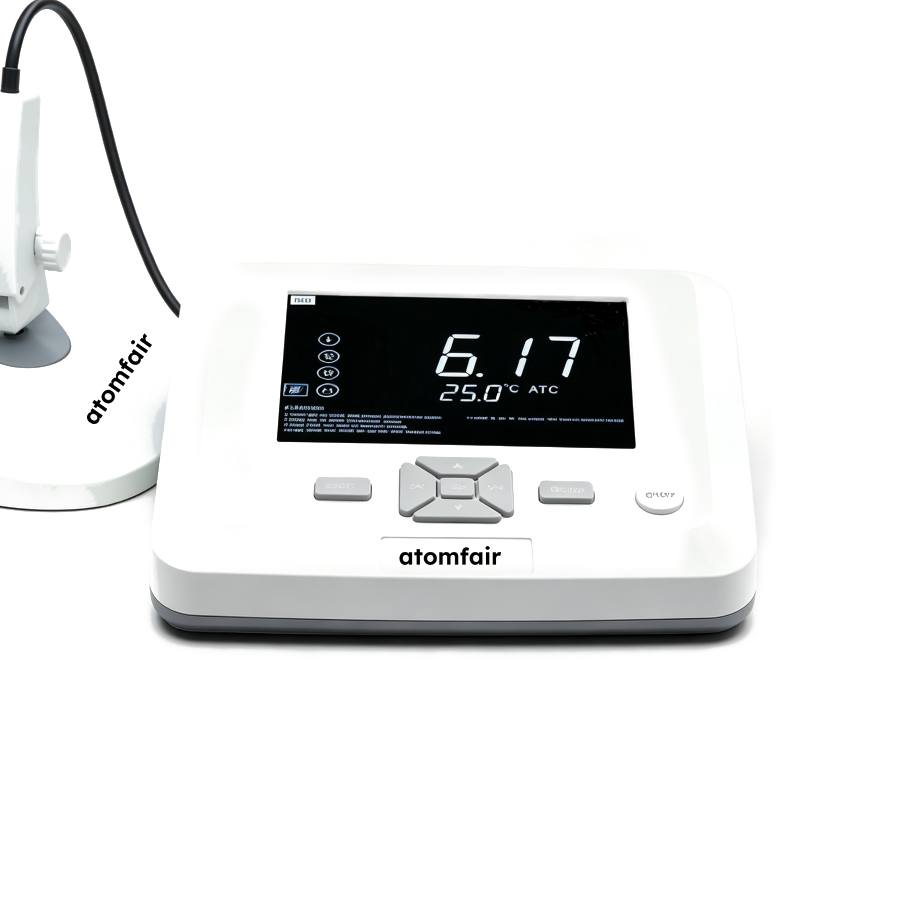

IoniSense pH Conductivity 100 T Touch Screen Benchtop Electrochemistry MeterProduct Type: Touch Screen Benchtop Electrochemistry Meter
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, platform compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The meter requires calibration before each measurement session using 1-5 point automatic calibration with standard buffers. Temperature compensation must be enabled for accurate readings across the specified range of -10.0 to 135.0 °C.
- Calibration Requirement: Perform 1-5 point automatic calibration using pH buffers appropriate for the measurement range.
- Temperature Compensation: Enable automatic temperature compensation to maintain accuracy across the instrument's operating temperature range.
- Electrode Compatibility: Select a compatible electrode or probe that matches the required measurement parameter and range.
- Power Supply: Connect the instrument to a DC12V power supply as specified in the technical specifications.
What is the pH accuracy and calibration flexibility of the IoniSense pH Conductivity 100 T, and how does the 1-5 point automatic calibration affect measurement precision across the full pH range?
The meter achieves a pH accuracy of ±0.002 pH ±1 digit with resolution selectable down to 0.001 pH. The 1-5 point automatic calibration allows users to calibrate with up to five buffer solutions, which can improve linearity across the full (-2.000 to 20.000) pH range, though the optimal number of points depends on the required measurement span and sample matrix.
Can the IoniSense pH Conductivity 100 T measure pH, conductivity, and dissolved oxygen simultaneously, or does it require separate electrodes for each parameter?
The meter does not measure all parameters simultaneously with a single probe. It supports multiple measurement parameters (pH, mV, ORP, conductivity, TDS, salinity, resistivity, temperature) but requires the appropriate electrode or probe for each parameter. The standard package includes a pH electrode and a conductivity electrode; dissolved oxygen accessories are included according to model configuration. Users must confirm the required electrode configuration before quotation.
What power and data output infrastructure is required to operate the IoniSense pH Conductivity 100 T in a laboratory setting?
The meter requires a DC12V power supply, which is included as a power adapter in the standard package. For data handling, it offers USB, PC, and printer data output options, allowing connection to laboratory computers or compatible printers for data logging and reporting. No additional software or network requirements are specified in the product documentation.
This benchtop electrochemistry meter provides high-accuracy pH measurement (±0.002 pH) and multi-parameter capability including conductivity, TDS, salinity, resistivity, ORP, and temperature, but requires careful electrode selection and external DC power supply.
Positive
- High pH accuracy and resolution: Achieves ±0.002 pH accuracy with selectable resolution up to 0.001 pH, suitable for precise laboratory pH measurements.
- Multi-parameter measurement capability: Supports pH, mV/ORP, conductivity, TDS, salinity, resistivity, and temperature in a single instrument, reducing the need for multiple dedicated meters.
Trade-offs
- Requires external DC power supply: Operates on a DC12V supply, limiting portability and requiring a nearby power outlet or dedicated power source in the lab.
- Electrode and configuration must be matched: Measurement parameters, ranges, and compatible electrodes must be confirmed before purchase, adding a pre-procurement verification step for users.
