ATOMFAIR® HB60-S Digital Heating Dry Bath AF-TC-HB60-S for temperature-sensitive laboratory incubation

HB60-S Digital Heating Dry Bath ±0.5°C 160W ATOMFAIR®

$184.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

HB60-S digital heating dry bath controls room temp +5 to 60 °C with ±0.5 °C accuracy, ±0.3 °C uniformity at 37 °C, 160 W power. Order now.

Category: ,
Tags: , ,
Brands:

Description

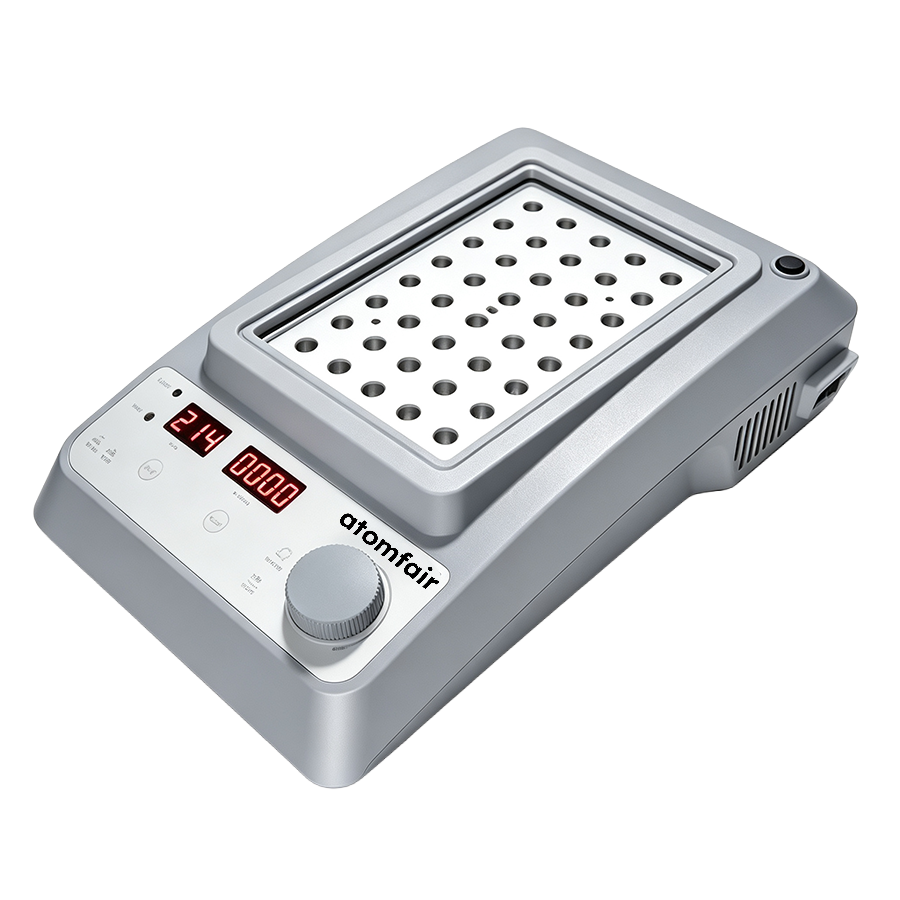

HB60-S Digital Heating Dry Bath

Product Type: Temperature control instrument
Research-grade temperature control platform

Product Overview

HB60-S Digital Heating Dry Bath is a research-grade dry bath for controlled block-based heating and incubation of tubes, vials, plates or compatible sample modules in molecular biology, biochemistry, clinical research, quality-control and teaching laboratories. The listed configuration provides temperature control range of Room temperature +5 to 60 °C, temperature control accuracy of ±0.5 °C, uniformity of ±0.3 °C.

It is suitable for enzyme reactions, sample warming, reagent preparation, nucleic-acid workflow support, protein handling and routine temperature-controlled sample preparation. Select the model according to timer setting (0 min to 99 h 59 min), installation footprint (175 x 290 x 85 mm), block or module format, sample vessel size, power supply, operating environment.

Key Features and Advantages
  • Dry-block temperature control supports repeatable incubation, warming and sample preparation workflows.
  • Temperature range: Room temperature +5 to 60 °C.
  • Temperature control accuracy: ±0.5 °C.
  • Timer range: 0 min to 99 h 59 min.
  • Display: LED.
  • Confirm compatible heating blocks, modules or sample vessels before ordering.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-TC-HB60-S
Temperature control range Room temperature +5 to 60 °C
Temperature setting range Five fixed steps: 25, 30, 37, 45 and 60 °C
Temperature control accuracy ±0.5 °C
Uniformity at 37 °C ±0.3 °C
Power 160 W
Timer 0 min to 99 h 59 min
Display LED
Power supply 110/220 V, 50/60 Hz
Dimensions 175 x 290 x 85 mm
Weight 2.5 kg
Ambient temperature 10 to 40 °C
Relative humidity <80%
Configuration Guidance: Confirm temperature range, block or module compatibility, sample vessel format, power supply and installation environment before ordering.
Technical Support: For method-specific incubation, heating, cooling or module matching requirements, contact the Atomfair technical sales team.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

The HB60-S Digital Heating Dry Bath is a temperature-controlled block heater with fixed-step temperature selection and programmable timer. Safe and accurate operation requires proper ambient conditions, compatible blocks, and correct power supply.

  • Ambient Conditions: The instrument requires an ambient temperature between 10 and 40 °C and relative humidity below 80% for safe and accurate operation.
  • Power Supply Compatibility: Confirm that the available mains voltage and frequency match the specified 110/220 V, 50/60 Hz input before operation.
  • Block Compatibility: Only Atomfair compatible heating blocks and sample modules should be used; confirm block and vessel compatibility before ordering.
  • Temperature Setting: The temperature is set to one of five fixed steps (25, 30, 37, 45, or 60 °C) using the front-panel control.
  • Timer Range: The timer can be set from 0 minutes up to 99 hours and 59 minutes in 1-minute increments.

Does the HB60-S Digital Heating Dry Bath allow continuous temperature setting or only preset steps?

The HB60-S uses five fixed temperature steps (25, 30, 37, 45, and 60 °C) rather than continuous adjustment. This simplifies operation for standard protocols but limits flexibility compared to fully programmable dry baths. Within each step, the device maintains a control accuracy of ±0.5 °C and a uniformity of ±0.3 °C at 37 °C.

What heating block formats are compatible with the HB60-S dry bath?

The product description does not specify exact block dimensions or module types. Users must confirm compatible heating blocks, modules, or sample vessels before ordering by consulting the Atomfair technical sales team. The unit accepts tubes, vials, plates, or compatible sample modules, but specific block part numbers are not listed in the specifications.

What are the environmental and power requirements for operating the HB60-S?

The HB60-S requires an ambient temperature of 10 to 40 °C and relative humidity below 80%. It operates on a universal power supply of 110/220 V, 50/60 Hz, consuming 160 W. The unit dimensions are 175 x 290 x 85 mm, and it weighs 2.5 kg. Ensure adequate ventilation around the instrument.

The HB60-S Digital Heating Dry Bath offers precise dry-block incubation from room temperature +5°C to 60°C with ±0.5°C accuracy and ±0.3°C uniformity, but its temperature selection is constrained to five fixed steps, and compatible heating blocks must be sourced separately.

Positive

  • Compact and Lightweight Benchtop Footprint: Dimensions of 175 x 290 x 85 mm and weight of 2.5 kg allow placement in crowded lab benchtops with minimal space requirement.
  • Precise Uniform Heating at Common Biological Temperatures: Temperature control accuracy of ±0.5°C and uniformity of ±0.3°C at 37°C ensure repeatable enzyme reactions and incubation workflows.

Trade-offs

  • Fixed Five-Step Temperature Selection: Temperature setting is limited to five fixed steps (25, 30, 37, 45, 60°C), preventing continuous adjustment for protocols requiring intermediate temperatures.
  • Requires External Heating Block Purchase: The dry bath does not include heating blocks or sample modules; users must separately confirm and purchase compatible blocks for specific tube or plate formats, adding upfront cost and planning.
