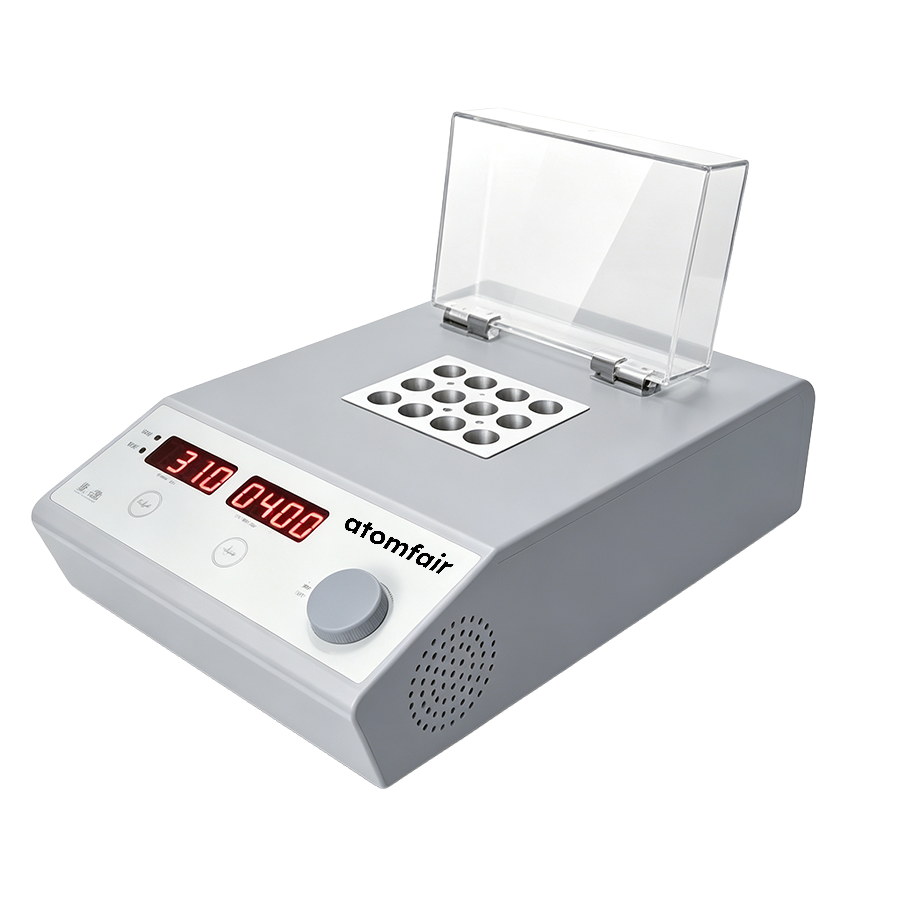

HB150-S1 Dry Bath 150 °C LED Temperature Control ATOMFAIR®

Operate within ambient temperature 10–40 °C and relative humidity below 80% to maintain specified accuracy and prevent condensation. Use only compatible Atomfair heating blocks or modules to ensure proper thermal contact and avoid block overheating.

• Environmental Limits: The dry bath maintains specified temperature control accuracy only within ambient temperature 10–40 °C and relative humidity below 80%.
• Block Compatibility: Select a heating block or module that matches your sample vessel format and fits the unit's block dimensions to ensure proper thermal transfer.
• Power Requirements: Connect the unit to a power supply matching the specified voltage (110/220 V, 50/60 Hz) to avoid electrical damage.
• Timer Configuration: Set the timer within the 0 min to 99 h 59 min range to match your incubation protocol requirements.
• Temperature Setting: Program the temperature within the operating range of 25 to 150 °C, noting the different accuracy above and below 90 °C.

Configure the dry bath with a compatible block, set temperature and timer, and initiate controlled incubation. Follow these steps to ensure safe and accurate operation.

Required Equipment: Compatible heating block or module

1. Confirm block compatibility
   Confirm compatibility of the heating block or module with your sample vessel format and the dry bath unit.
2. Position the dry bath
   Place the dry bath on a stable, level surface in an environment meeting specified temperature and humidity limits.
3. Connect to power
   Connect the power cord to an appropriate outlet matching the unit's voltage and frequency specifications.
4. Set the timer
   Set the timer to the desired duration within the 0 min to 99 h 59 min range.
5. Set the temperature
   Set the temperature within the operating range of 25 to 150 °C as required by your protocol.
6. Insert the sample block
   Insert the loaded heating block or sample module securely into the dry bath block well.
7. Start incubation
   Press start to begin controlled incubation and do not touch the block surface during operation as it becomes hot.

A research-grade dry bath delivering controlled block-based heating from RT+5 to 150°C with dual-zone accuracy of ±0.3°C (25–90°C) and ±0.6°C (90–150°C), suited for enzyme reactions, nucleic acid workflows, and protein handling, but requiring compatible heating blocks and operating within 10–40°C ambient conditions.

Positive

• Dry-block temperature control: Eliminates water bath contamination risks and provides repeatable, uniform incubation across tubes, vials, or plates for molecular biology and biochemistry workflows.
• Wide range with graded accuracy: Covers RT+5 to 150°C with accuracy of ±0.3°C from 25–90°C and ±0.6°C from 90–150°C, enabling both sensitive enzymatic assays and high-temperature sample denaturation.

Trade-offs

• Block/module dependency: Requires user to confirm compatible heating blocks, modules, or sample vessel formats before ordering; blocks are not included and must be matched to tube size and application.
• Environmental sensitivity: Specified for ambient temperatures of 10–40°C and relative humidity below 80%, limiting use in unconditioned or high-humidity laboratory spaces.
