Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||
The electrode surface is highly sensitive to contamination, requiring storage in a sealed container within an anhydrous inert atmosphere. Exposure to ambient moisture or contaminants can cause phase degradation and compromise electrochemical performance.
- Contamination Sensitivity: The graphite working electrode surface must be protected from airborne contaminants and moisture to prevent degradation.
- Inert Atmosphere Requirement: All handling of the electrode should be performed in an anhydrous inert environment, such as a glovebox, to maintain surface integrity.
- Sealing Protocol: The electrode must be kept in a tightly sealed container when not in use to avoid exposure to ambient conditions.
What are the performance trade-offs when choosing between 2 mm and 6 mm graphite working electrode diameters for microscopy-coupled electrochemical experiments?
Smaller diameters (2 mm) offer higher spatial resolution for microscopy-coupled experiments, while larger diameters (6 mm) provide higher current signals due to increased electroactive surface area. The source specifies a 2–6 mm range, allowing researchers to optimize for their specific application: spatial mapping vs. bulk signal detection.
Is the detachable head design compatible with standard electron microscope stages and potentiostats?
Yes, the 9 mm head thickness and gold-plated copper rod (1.5×15 mm) are designed for integration with common electron microscope stages and standard potentiostat connections. The detachable design allows head replacement without replacing the PTFE/PEEK body, facilitating routine surface renewal in microscopy-coupled setups.
What storage and handling protocols are required to prevent surface contamination of the graphite working electrode?
The electrode is highly sensitive to surface contamination and must be stored in the provided sealed, shock-absorbing containers in an anhydrous inert environment (e.g., argon glovebox) to prevent phase contamination or degradation. Handling should be performed exclusively under inert atmosphere before electrochemical validation.

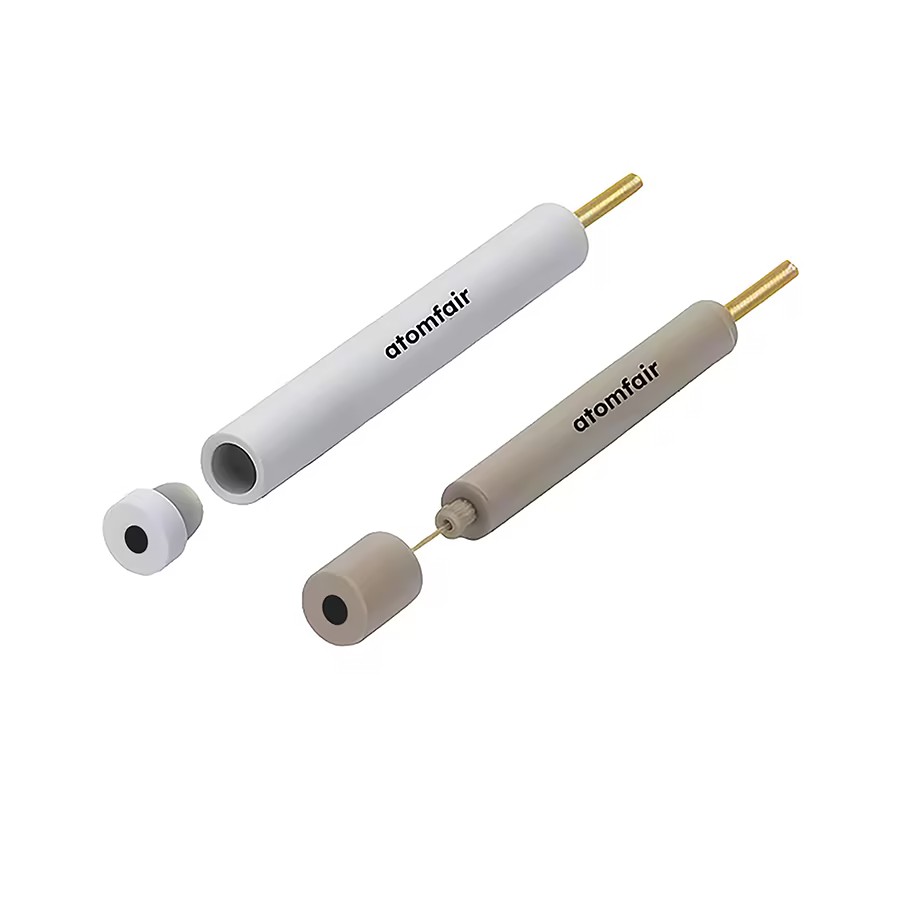

The ATOMFAIR Detachable Electron Microscopy Graphite Working Electrode features a user-replaceable graphite head on a PTFE or PEEK body with a gold-plated copper conductor, offering wide potential windows and low background current for electroanalysis. Its critical operational constraint is extreme sensitivity to surface contamination, requiring storage and handling in an anhydrous inert environment.
Positive
- Detachable head for surface renewal: The user-replaceable head design allows easy electrode surface regeneration without replacing the entire body, extending service life and ensuring reproducibility in microscopy-coupled experiments.
- Graphite with wide potential window: High-grade graphite provides a broad potential window and low background current, suitable for diverse redox systems and cost-effective carbon-based sensor applications.
Trade-offs
- Surface contamination sensitivity: The electrode is highly sensitive to surface contamination; containers must be tightly sealed or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before use.
