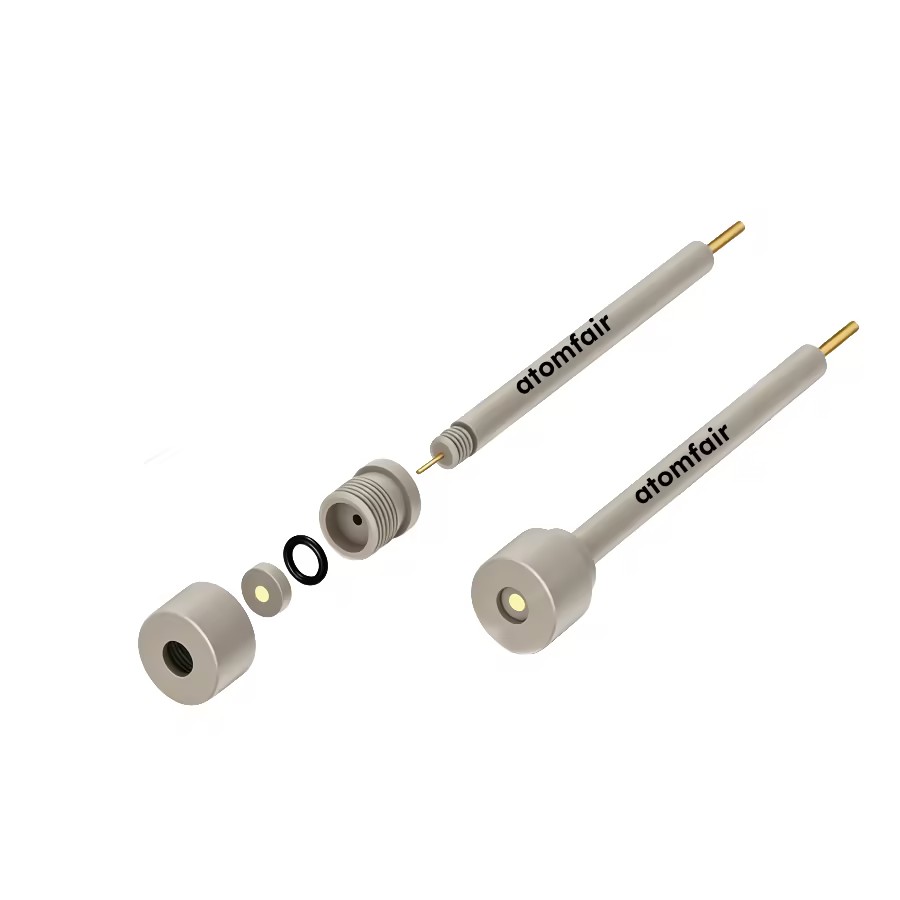

Multifunctional Combination Graphite Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||
This product requires strict control of surface contamination to maintain electrochemical performance. Storage and handling must be performed within an anhydrous inert environment to prevent phase contamination and degradation.
- Surface Contamination Sensitivity: The electrode surface is highly sensitive to contamination which can degrade electrochemical validation results.
- Inert Environment Handling: All handling must be performed exclusively within an anhydrous inert atmosphere to prevent phase contamination.
- Sealed Storage Requirements: Containers must be kept tightly sealed when not in use to avoid exposure to atmospheric moisture and contaminants.
What is the maximum electrode head thickness for the ATOMFAIR Multifunctional Combination Graphite Working Electrode, and how does it enable correlative SEM/AFM imaging?
The electrode head thickness is less than 4mm, which allows the assembled electrode to fit within the sample stage clearance of most SEM and AFM systems. This sub-4mm profile enables direct transfer of the electrode from an electrochemical cell to a microscope without removing the graphite disk, preserving the identical electrode surface for correlative structural and topographical analysis.
Can this graphite working electrode be used with non-aqueous electrolytes or in organic solvent-based electrochemical systems?
Yes, the high-grade graphite material provides a wide potential window and low background current suitable for diverse redox systems, including non-aqueous electrolytes. However, the product notice states that the electrode is highly sensitive to surface contamination and must be handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation, which is standard practice for organic solvent systems.
What are the specific handling and storage requirements to prevent surface contamination of this graphite electrode before use?
The electrode must be kept in its secure individual research-grade protective container with shock-absorption parameters when not in use. Containers must be tightly sealed, or the electrode must be handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation. This is critical because the graphite surface is highly sensitive to contamination that can alter background current and potential window performance.
This graphite working electrode combines a wide potential window with low background current for routine electroanalysis, while its thin head design (<4 mm) enables direct correlative electrochemical-microscopic analysis without sample transfer. However, its high sensitivity to surface contamination necessitates storage in sealed containers or handling in an anhydrous inert environment.
Positive
- Correlative electrochemistry and microscopy: Electrode head thickness under 4 mm enables direct integration with SEM or AFM systems, allowing researchers to correlate electrochemical performance with structural and topographical features on the identical surface without sample transfer.
- Wide potential window and low background: The high-grade graphite material provides a wide potential window and low background current, making it suitable for diverse redox systems and sensor applications.
Trade-offs
- Surface contamination sensitivity: The graphite electrode surface is highly sensitive to contamination; it must be stored in tightly sealed containers or handled exclusively within an anhydrous inert environment to prevent degradation before electrochemical validation.
- Requires inert handling environment: When the container is opened, the electrode must be handled in an anhydrous inert atmosphere to prevent phase contamination, adding infrastructure requirements for routine laboratory use.
