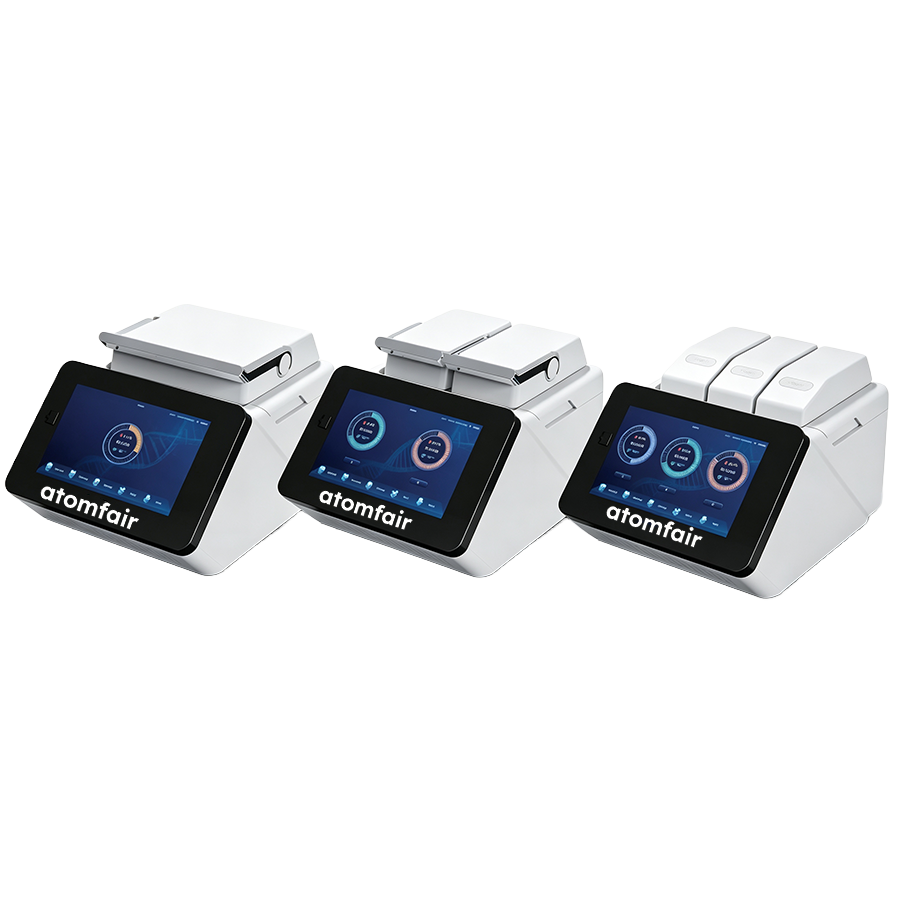

ATOMFAIR® TC2000-G3 Gradient Thermal Cycler AF-TC-TC2000-G3 for PCR amplification temperature cycling

Gradient Thermal Cycler G3 0–105 °C 96-Well ATOMFAIR®

$3,530.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade lab G3 gradient thermal cycler for 96 x 0.2 mL PCR tubes or 96-well plates, 0–105 °C module range, ±0.1 °C accuracy. Order now.

Category: ,
Tags: , ,
Brands:

Description

TC2000-G3 Gradient Thermal Cycler

Product Type: Temperature control instrument
Research-grade temperature control platform

Product Overview

TC2000-G3 Gradient Thermal Cycler is a research-grade dry bath for controlled block-based heating and incubation of tubes, vials, plates or compatible sample modules in molecular biology, biochemistry, clinical research, quality-control and teaching laboratories.

It is suitable for enzyme reactions, sample warming, reagent preparation, nucleic-acid workflow support, protein handling and routine temperature-controlled sample preparation. Select the model according to installation footprint (310 x 422 x 264 mm), block or module format, sample vessel size, power supply, operating environment.

Key Features and Advantages
  • Dry-block temperature control supports repeatable incubation, warming and sample preparation workflows.
  • Display: 10.1-inch LCD, 1280 x 800.
  • Confirm compatible heating blocks, modules or sample vessels before ordering.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-TC-TC2000-G3
Sample specifications 96 x 0.2 mL PCR tubes; 12 x 0.2 mL PCR 8-strip tubes; 0.2 mL 96-well PCR plate
Sample module temperature range 0 to 105 °C
Heated lid setting range 30 to 115 °C
Display resolution 0.1 °C
Temperature accuracy ±0.1 °C
Temperature uniformity at 55 °C ±0.2 °C
Maximum ramp rate 5 °C/sec
Control mode Block / Tube
Shaking module None
Power-off protection Supported
Communication USB, WiFi
Program storage 20000+ programs, USB FLASH
User-defined program One program up to 30 steps
Module bit 3 x 32
Gradient setting range 30 to 105 °C
Gradient range 1 to 25 °C
Display 10.1-inch LCD, 1280 x 800
Operation Touch screen
Tracking next step Supported
Cycles 199 cycles
Power 100 to 240 V, 50/60 Hz, 1500 W
Dimensions 310 x 422 x 264 mm
Weight 11 kg
Environment 5 to 40 °C, 80% RH
Configuration Guidance: Confirm temperature range, block or module compatibility, sample vessel format, power supply and installation environment before ordering.
Technical Support: For method-specific incubation, heating, cooling or module matching requirements, contact the Atomfair technical sales team.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, OEM requirements, accessory matching or configuration confirmation, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

Operate the instrument within an ambient temperature range of 5 to 40 °C and relative humidity up to 80% to maintain thermal accuracy. Connect to a grounded power supply rated 100–240 V, 50/60 Hz, 1500 W; the heated lid can reach 115 °C and presents a burn hazard during operation.

  • Environmental Limits: Maintain ambient conditions between 5–40 °C and ≤80% RH to avoid condensation and ensure temperature uniformity.
  • Electrical Safety: Use a dedicated, grounded outlet matching the instrument's 1500 W power draw to prevent overload.
  • Thermal Hazard: The heated lid operates up to 115 °C; allow lid to cool before contact after a run.
  • Sample Compatibility: Only use compatible 0.2 mL PCR tubes, 8-strip tubes, or 96-well PCR plates as specified for the block.

Power on the instrument and configure the temperature program via the touch screen interface. Load samples into the appropriate block format, close the heated lid, and start the run while monitoring for errors.

Required Equipment:

  1. Power On
    Connect the power cord to a grounded outlet and switch on the main power.
  2. Program
    Set the desired temperature program parameters including temperature, time, and gradient using the touch screen.
  3. Load Samples
    Load the sample vessels into the block and confirm proper seating.
  4. Close Lid
    Close the heated lid and verify the lid temperature setting.
  5. Start Run
    Initiate the run and monitor progress via the display.
  6. End Run
    When the run completes, allow the lid to cool before opening to retrieve samples.

How does the TC2000-G3 maintain its specified temperature accuracy of ±0.1°C across the programmable gradient range of 1–25°C, especially at the maximum ramp rate of 5°C/sec?

The TC2000-G3 achieves a temperature accuracy of ±0.1°C and a display resolution of 0.1°C across its entire gradient range (1 to 25°C). Even at the maximum ramp rate of 5°C/sec, the instrument's block/tube control mode and uniform heating design (temperature uniformity ±0.2°C at 55°C) ensure precise thermal performance without compromising accuracy, as specified in the technical datasheet.

What are the power and environmental requirements for installing the TC2000-G3 in a standard laboratory, and does it support 0.2 mL 96-well PCR plates directly?

The TC2000-G3 directly supports 0.2 mL 96-well PCR plates, 96 x 0.2 mL PCR tubes, and 12 x 0.2 mL PCR 8-strip tubes. It requires a power supply of 100–240 V, 50/60 Hz, and consumes up to 1500 W. The operating environment must be 5 to 40°C with ≤80% relative humidity. The instrument dimensions are 310 x 422 x 264 mm and weighs 11 kg, making it suitable for standard benchtop installation.

Does the TC2000-G3 offer any data protection features for long-term unattended thermal cycling protocols, and what is the maximum program storage capacity?

The TC2000-G3 includes power-off protection to safeguard protocols during unexpected power loss. It can store over 20,000 programs and supports user-defined programs of up to 30 steps, with up to 199 cycles. Programs can also be backed up via USB flash drive. The instrument uses USB and WiFi for data transfer and remote monitoring.

The TC2000-G3 Gradient Thermal Cycler offers precise dry-block temperature control with ±0.1°C accuracy and a wide 0-105°C range, suitable for molecular biology workflows. However, its 1500W power draw and lack of shaking capability impose infrastructure and application constraints.

Positive

  • High temperature accuracy and uniformity: Temperature accuracy of ±0.1°C and uniformity of ±0.2°C at 55°C ensure reproducible incubation conditions for sensitive enzymatic reactions and nucleic acid workflows.
  • Broad temperature range with gradient capability: Sample module range from 0 to 105°C with a gradient span of 1 to 25°C enables optimization of annealing temperatures and supports diverse thermal protocols.

Trade-offs

  • High power consumption: Rated at 1500 W, the instrument requires a dedicated electrical circuit and may not be compatible with standard lab bench power outlets in all facilities.
  • No integrated shaking module: The unit lacks orbital or vortex mixing capability, limiting its use to static incubation only; applications requiring agitation must use external shakers.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
