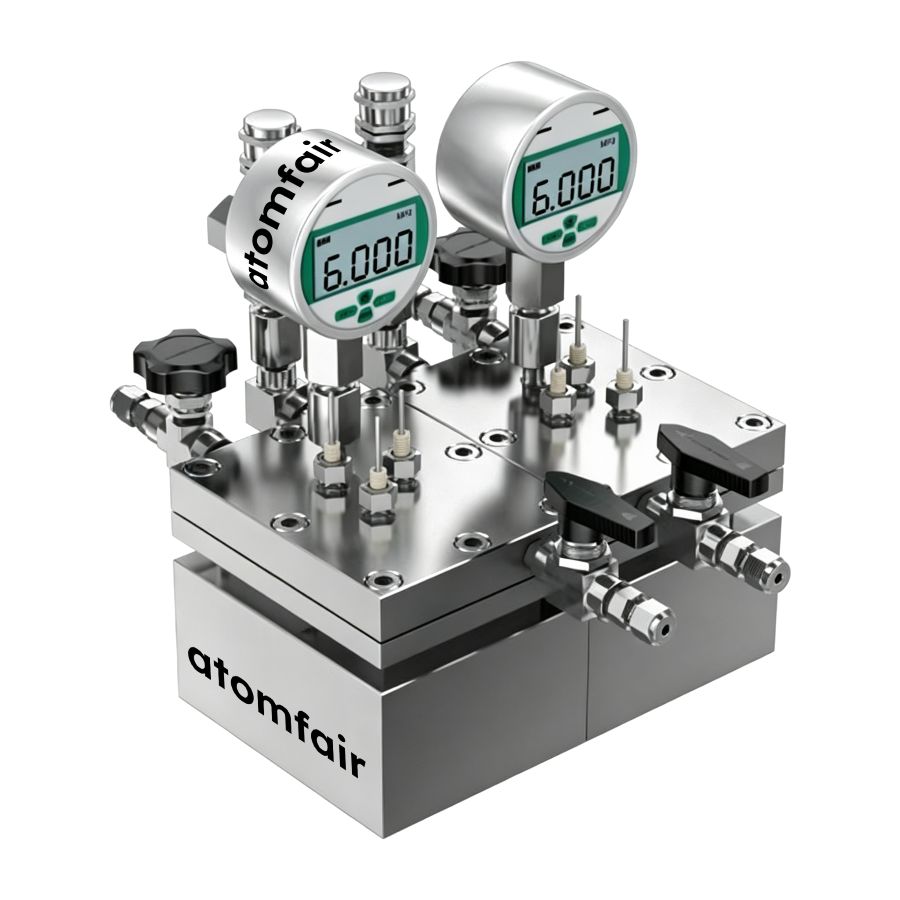

Double Chamber High-Pressure Electrochemical Cell with Quartz Window

Double Chamber High-Pressure Electrochemical Cell with Quartz Window

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Double chamber high-pressure electrochemical cell with an added quartz window, >95% transmittance, Ti body, and 50+50 mL or 100+100 mL chamber options.

SKU: AF-EL-H-2CWX-VOL0-P002
Category:
Tags: , , ,
Brands:

Double Chamber High-Pressure Electrochemical Cell with Quartz Window

Product Type: Variable
Laboratory procurement configuration

Product Overview

This quartz-window version builds on the double chamber high-pressure electrochemical cell platform and adds an optical window with more than 95 percent transmittance.

The Ti body, 6 MPa pressure rating, and 50+50 mL or 100+100 mL chamber options keep the family aligned with pressure-controlled electrochemical testing.

Performance Features
  • Quartz glass window with more than 95 percent transmittance.
  • Ti chamber body and 304 stainless steel valves.
  • Three-electrode system with working and reference electrodes in one chamber and the counter electrode in a separate chamber.
  • Optional Ag/AgCl reference electrode, platinum counter electrode, and glassy carbon working electrode clamp are purchased separately.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-HCW-2C
Product Family Double chamber high-pressure electrochemical cell with quartz window
Chamber Volume 50+50 mL, 100+100 mL
Chamber Body Material Ti
Optical Window Quartz glass, >95% transmittance
Pressure Rating 6 MPa
Valve Material 304 stainless steel
Electrode System Three-electrode setup
Electrode Arrangement Working and reference electrodes in one chamber; counter electrode in a separate chamber
Optional Purchases Ag/AgCl reference electrode, platinum counter electrode, glassy carbon working electrode clamp

Available Configurations
Parameter Specification / Available Values
Volume option 50+50 mL
Volume option 100+100 mL
PACKAGING: Standard protective packaging ensures safe delivery; custom reinforcement is available upon request.
ACCESSORY SELECTION: Confirm electrodes, membranes, windows, gas diffusion electrodes and other separately purchased items for the selected configuration.
CUSTOMIZATION: For non-standard electrode sizes or window materials, please specify requirements in your inquiry.
