Compact Hot Press Shaping Machine with Constant Temperature Control for Lithium Battery

Compact Hot Press Shaping Machine with Constant Temperature Control for Lithium Battery

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair-HPS386 Hot Press Shaping Machine This compact hot press is designed for soft-pack lithium battery shaping after winding. It features constant temperature control, adjustable pressure up to 1T, and stable operation. With 300-500 cycles/hour, it ensures flat cells for easy casing, ideal for efficient lithium-ion production.

SKU: AFMSQYDE346
Category:
Tags:
Brands:

Description

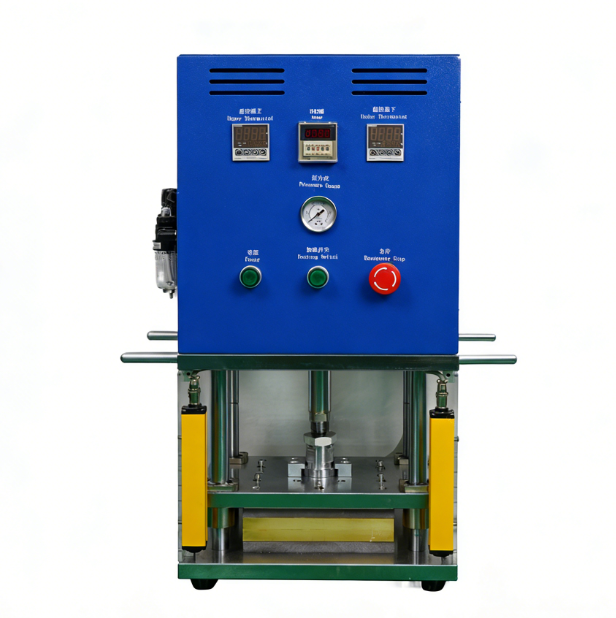

ATOMFAIR HPS386 HOT PRESS SHAPING MACHINE

RESEARCH GRADE EQUIPMENT

Product Overview
The ATOMFAIR HPS386 Hot Press Shaping Machine is a precision thermal pressing system featuring a 300×300mm copper heating 0-1T pressure platform, purpose-built for soft-pack lithium battery flat pressing after the winding process. The hot pressing shapes and levels the soft-pack bare cell, facilitating easy insertion into the shell while ensuring a flat and uniform surface finish. The heating element is made of copper for excellent thermal conductivity, while constant temperature auto-control timer functionality maintains precise temperature regulation with automatic hot pressing timing. Pressure is continuously adjustable from 0 to 1 ton across the effective pressing area of 300 × 300 mm. The compact V2.0 design (420 × 420 × 430 mm, 80 kg) delivers a working speed of approximately 300–500 cycles per hour, operating on AC 220V/50Hz at 1 kW with 0.5–0.7 MPa air pressure supply. The whole machine runs safely and stably with reliable control and convenient operation, making it suitable for research laboratories and production environments requiring precise hot flat pressing of soft-pack lithium batteries.

Technical Specifications
PARAMETER DETAILS
Model HPS386
Version V2.0
Effective Pressure Area 300 × 300 mm (L × W)
Heating Element Copper
Temperature Control Constant Temperature Auto-Control with Timer
Pressure 0–1 T, Continuously Adjustable
Working Speed Approximately 300–500 Cycles/Hour
Power Supply AC 220 V / 50 Hz
Power 1 kW
Air Pressure Source 0.5–0.7 MPa
Overall Dimensions 420 × 420 × 430 mm (L × W × H)
Weight 80 kg
Custom Configurations Custom pressure area specifications and heating parameters are available upon request. Please contact us via email for specialized engineering inquiries.

Key Features & Advantages
  • Constant Temperature Auto-Control with Automatic Timing: The temperature regulation system maintains precise constant heating with automatic hot pressing timer functionality, ensuring consistent shaping results across all production batches without manual intervention.
  • Copper Heating Element for Superior Thermal Conductivity: The copper heating element delivers excellent heat transfer efficiency across the full 300 × 300 mm effective pressing area, ensuring uniform temperature distribution for even flat pressing results.
  • Continuously Adjustable Pressure from 0 to 1 Ton: Pressure can be precisely tuned across the full 0–1 ton range, allowing optimal force selection for different soft-pack battery specifications and material thicknesses.
  • Compact Design with High Throughput: The compact footprint (420 × 420 × 430 mm) combined with a working speed of 300–500 cycles per hour delivers efficient production throughput while minimizing valuable laboratory or production floor space.

APPLICATION SCOPE: Hot flat pressing and shaping of soft-pack lithium batteries after the winding process. Leveling soft-pack bare cells to facilitate easy insertion into the shell. Suitable for battery research laboratories and production lines requiring precise thermal pressing for cell shaping and surface flattening. Compatible with various soft-pack battery sizes within the 300 × 300 mm effective pressing area.
PACKAGING & DELIVERY: Each HPS386 hot press shaping machine is securely packed for equipment transport. Standard configuration includes the hot pressing unit with copper heating element, constant temperature controller with timer, pressure adjustment mechanism, and control system. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: Compressed air supply of 0.5–0.7 MPa is required for pneumatic pressure operation. The copper heating element surface should be kept clean and free from debris to ensure uniform heat transfer. Allow adequate warm-up time for temperature stabilization before initiating pressing cycles. The pressure adjustment should be calibrated according to specific battery specifications to avoid over-compression. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific customization requirements, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
