Description

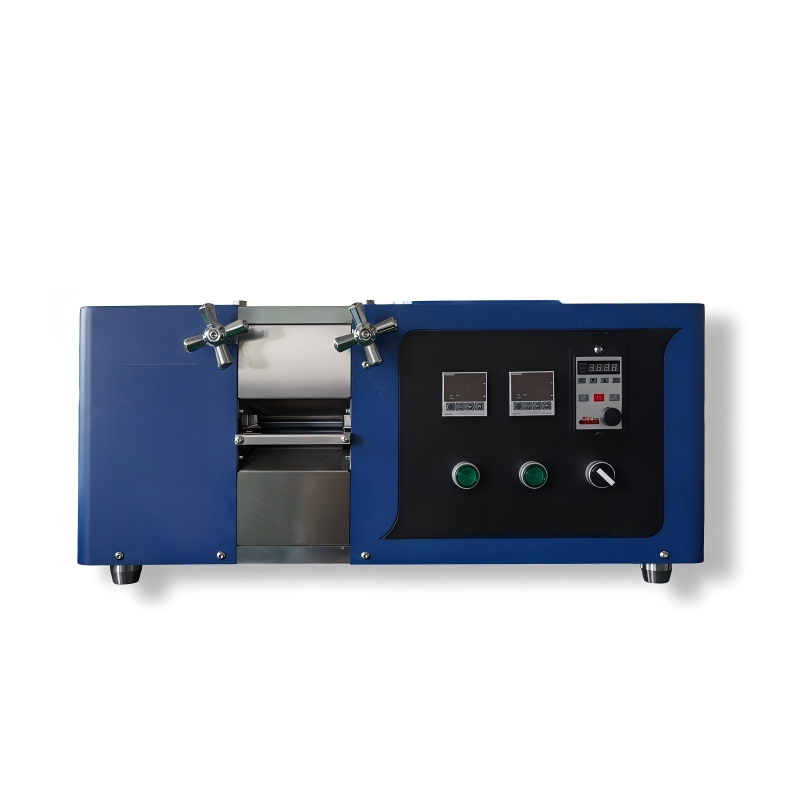

Atomfair Electric Vertical Roller Mill with Internal Heating
Product Model
Atomfair-VRM-210
Release Date
2024-07-26
Version
V2.0
Dimensions & Weight
Dimensions: L600mm * W320mm * H320mm
Weight: 65 kg
Product Overview
Electric vertical roller mill with adjustable differential speed and internal heating, ideal for laboratory rolling of battery materials, precious metals and non-ferrous metals at controlled temperatures.
Key Features
- Internal heating with digital temperature controller.
- Dual motors for upper and lower rollers, adjustable differential speed.
- Heating or non-heating working mode.
- Hard chrome plated rollers, hardness up to HRC62, anti-rust.
- Inclined block for gap adjustment with high precision and self-locking.
- High rolling precision, roller cylindricity ≤±2 μm.
- Vertical structure for easy material feeding.
- Gear drive for stable rolling.
- Adjustable thickness and speed, forward/reverse operation.
- Compact size, easy to operate.
Technical Specifications
- Roller diameter: Φ96 mm
- Roller surface hardness: ≥ HRC62
- Roller finish: ≥ 0.4
- Rolling thickness: 0–2 mm
- Rolling width: 0–200 mm
- Structure: vertical
- Max temperature: 200 ℃
- Feeding speed: 0–10 mm/s
- Power supply: AC220V / 50Hz
- Power: 720W
- Dimensions: L600mm * W320mm * H320mm
- Weight: 65 kg
