Description

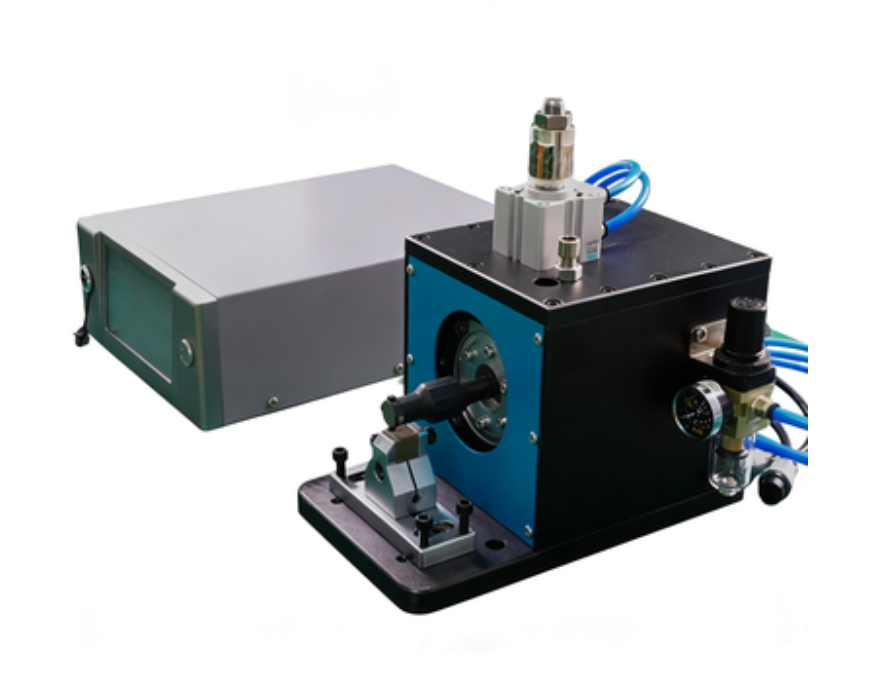

Atomfair-UWM7320 Ultrasonic Welding Machine
Product Overview
Compact in size, elegant in appearance, easy to operate, sturdy in structure, and stable & safe in use. The transducer converts high-power ultrasonic oscillation signals into mechanical energy of corresponding frequency, applying it to the metal sheet interface to be welded. It instantly heats the joint, activates particles in the metal lattice, and enables molecular interpenetration for firm welding.
Functional Features
- Low internal resistance at welding points with excellent conductivity and ultra-low resistivity close to zero
- No oxidation marks; ultrasonic wave has cleaning function, realizing perfect welding without surface treatment even with contaminants/oxides on metal surfaces
- No pre-treatment for all workpieces, fusion welding without solder or welding oil additives, economical and convenient
- Welding head made of wear-resistant materials with long-lasting durability
- Firm welding points; working temperature below annealing temperature, no change to workpiece metallographic structure, stronger fusion strength than other methods with neat and clean welds
- Low welding cost, fast speed, easy operation and convenient maintenance
- Ultra-short welding time, instant fusion completion generally within 0.01-2 seconds
- No sparks during fusion, safe for operators; no smoke, no air pollution
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Working Voltage | AC220V/50Hz |
| Working Air Pressure | 0.5-0.7Mpa |
| Ultrasonic Frequency | 40KHz (Automatic Tracking) |
| Input Electric Power | 0 ~ 800VA |
| Welding Time | 0 ~ 1S |
| Equipment Weight | Approx. 60Kg |
| Control Box Dimension | L360*W480*H200mm |
| Generator Dimension | L300*W460*H270mm |
