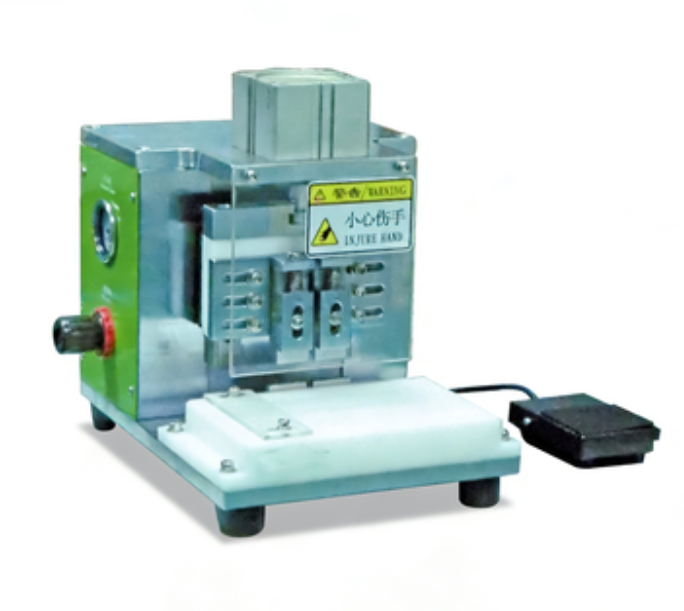

Atomfair-TE8190 Twin Tab Cutting Trimming Machine
Product Overview
Specially designed for fixed-length cutting and trimming of twin tabs on battery cells, with the dual cutters featuring mutual insulation for safe and precise processing.
Functional Features
- Guided by HIWIN linear slide rails, achieving ultra-high guiding precision to ensure zero clearance between upper and lower cutters and an extended service life.
- Upper and lower cutters are made of high-speed steel, with sharp cutting edges for clean and smooth cutting.
- Dual cutters are mutually insulated, meeting the electrical insulation requirements of battery cell processing.
- Cylinder-controlled cutters trim battery pole pieces and tabs, easily integrable into automated production lines.
- Equipped with a product positioning tray for convenient and accurate placement and positioning of battery cells.
- Compact and aesthetic design, with reliable performance and simple, fast operation.
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Applicable Specification | Tab center distance within 250mm |
| Single Cutter Size | 80mm in length |
| Cutter Insulation | Left and right cutters with mutual insulation |
| Positioning Adjustment | Cutter positioning block and battery side positioning block are adjustable |
| Cutter Service Life | 1 million cycles per regrinding |
| Working Speed | 600 cycles/hour (pneumatic) |
| Pneumatic Air Supply | 0.5Mpa~0.7Mpa |
| Overall Dimension | L230mm × W200mm × H250mm |
| Equipment Weight | 50Kg |
