Atomfair-SVP286 Secondary Vacuum Packaging Machine 250°C Edge-Sealing Battery

Atomfair-SVP286 Secondary Vacuum Packaging Machine 250°C Edge-Sealing Battery

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair-SVP286 secondary vacuum packaging machine is designed for final edge-sealing of soft-packaged lithium battery cells, ensuring sealing and safety. It is energy-saving, adjustable, easy to operate, and fits various battery specifications.

SKU: AFMSREEQ822
Category:
Tags:
Brands:

Description

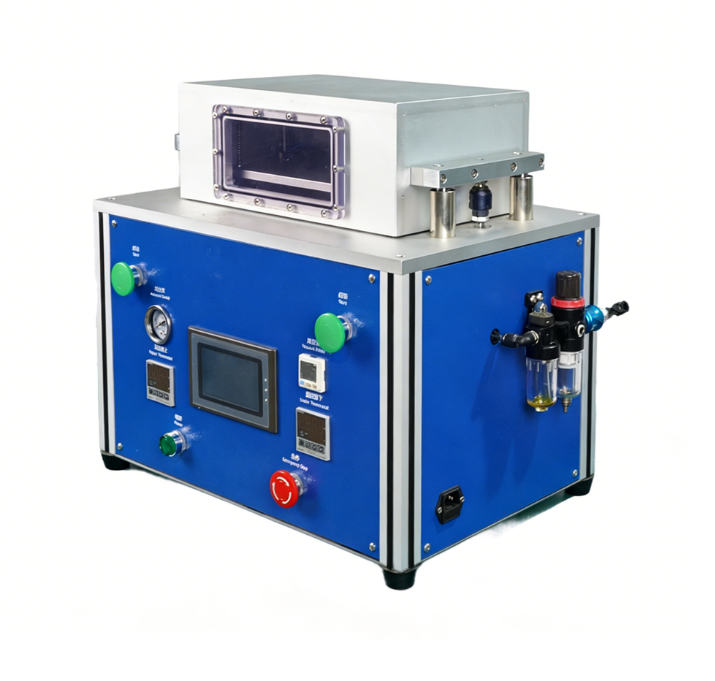

ATOMFAIR SVP286 SECONDARY VACUUM PACKAGING MACHINE

RESEARCH GRADE EQUIPMENT

Product Overview
The ATOMFAIR SVP286 Secondary Vacuum Packaging Machine is a precision final-edge-sealing system with a 250°C copper sealing head ±1.5°C temperature control, purpose-built for soft-packaged lithium battery edge-sealing in mass production and research environments. The copper sealing head delivers excellent heat transfer efficiency, reducing power consumption while maintaining precise temperature regulation within ±1.5°C. Featuring automatic puncture 0-7kg/cm² adjustable pressure functionality, the machine accommodates special process requirements in battery packaging while the pressure of upper and lower sealing heads is flexibly controlled via a pressure regulating valve. Both sealing heads are driven by air cylinders and guided by dual linear guide sleeves for flexible, accurate movement that ensures product parallelism after edge-sealing. The cover cavity operates with air cylinder drive and linear guide sleeve guidance for strict sealing performance. With a vacuum capability of -95 kPa (adjustable), 5 mm standard edge-sealing width (customizable), and maximum sealing size of 200 mm, the V2.0 SVP286 operates on 220V/50Hz at 900 W with 0.5–0.7 MPa compressed air. The compact design (500 × 500 × 700 mm, 100 kg) combines aesthetic appearance with practical functionality for efficient workshop layout.

Technical Specifications
PARAMETER DETAILS
Model SVP286
Version V2.0
Equipment Dimensions 500 × 500 × 700 mm (L × W × H)
Equipment Weight 100 kg
Sealing Head Material Copper (Excellent Heat Transfer Efficiency)
Sealing Head Temperature Room Temperature ~ 250°C, Adjustable
Temperature Control Precision ±1.5°C
Heat Sealing Pressure 0–7 kg/cm², Adjustable
Heat Sealing Time 0–99 s, Adjustable
Edge-Sealing Width 5 mm (Customizable)
Maximum Edge-Sealing Size 200 mm
Vacuum Degree Maximum -95 kPa, Adjustable
Power Supply 220 V / 50 Hz
Power 900 W
Compressed Air Source 0.5–0.7 MPa
Custom Configurations Custom edge-sealing widths and specifications are available upon request. Please contact us via email for specialized engineering inquiries.

Key Features & Advantages
  • Copper Sealing Head with ±1.5°C Precision Temperature Control: The copper material delivers excellent heat transfer efficiency, reducing power consumption while the precise temperature regulation ensures consistent edge-sealing quality across all production batches with energy-saving advantages compared to similar products.
  • Automatic Puncture Function for Special Process Requirements: The integrated automatic puncture capability accommodates special process requirements in battery packaging, eliminating the need for separate puncture equipment and streamlining the complete packaging workflow.
  • Dual Linear Guide Sleeve Drive System for Parallelism: Upper and lower sealing heads are driven by air cylinders and guided by two linear guide sleeves, ensuring flexible movement with accurate guidance that guarantees product parallelism after edge-sealing meets quality standards.
  • Flexible Pressure and Vacuum Adjustment: Sealing pressure (0–7 kg/cm²) is flexibly controlled via a pressure regulating valve while vacuum degree (-95 kPa maximum) is adjustable, enabling precise matching to diverse process parameter requirements for different battery specifications.

APPLICATION SCOPE: Final vacuum edge-sealing packaging of soft-packaged lithium battery cells in mass production and research environments. Ensuring sealing performance and use safety of battery cells. Compatible with various specifications of soft-packaged lithium battery cells through flexible adjustment operations. Suitable for battery research laboratories and production lines requiring reliable vacuum-assisted final packaging.
PACKAGING & DELIVERY: Each SVP286 secondary vacuum packaging machine is securely packed for equipment transport. Standard configuration includes the sealing unit with copper sealing heads, vacuum system, pressure regulating valve, air cylinder drive system, linear guide sleeves, automatic puncture mechanism, and control system. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: Compressed air supply of 0.5–0.7 MPa is required for operation. The copper sealing heads require periodic cleaning to maintain optimal heat transfer efficiency. Vacuum degree is adjustable up to -95 kPa; calibrate according to specific battery packaging requirements. The automatic puncture function should be configured according to process specifications before initiating production runs. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific customization requirements, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
