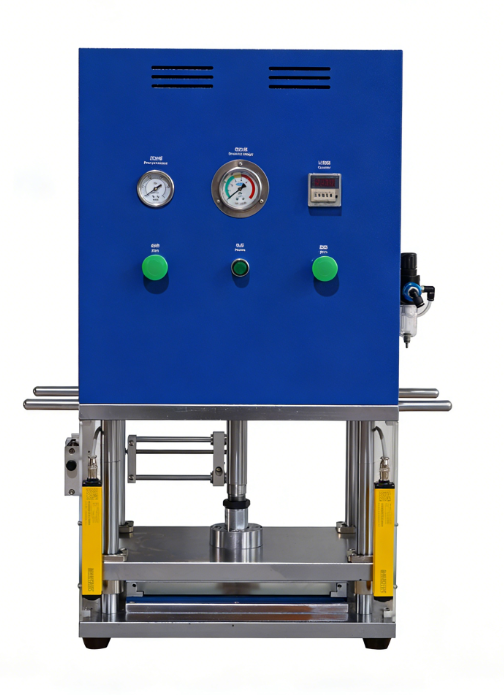

Atomfair-SD5490 Semi-Automatic Pole Piece Die Cutting Machine
Product Overview
With simple operation, it is an efficient mass-production equipment for forming positive and negative pole pieces of soft-pack batteries. It is also a convenient and fast multi-functional experimental and production equipment for forming positive and negative pole pieces of soft-pack lithium batteries in laboratories.
Functional Features
- Equipped with infrared positioning device for accurate and convenient positioning and die cutting of pole pieces.
- Easy and quick die replacement, improving production and debugging efficiency.
- Long die service life, ≥30,000 times under normal use.
- No quality defects such as burrs, powder loss or indentation on the cut pole pieces.
- Between manual and fully automatic models, with high efficiency of 800~2000 pieces per hour (1~8 pieces can be punched each time according to the size of the pole piece, standard is 2 pieces).
- Adopts four guide pillar structure, ensuring smooth up-and-down sliding and high cutting precision.
- The equipment feed inlet is equipped with a safety protection light curtain, making operation extremely safe.
- Exquisite appearance, with sheet metal adopting three-dimensional geometric design, simple and beautiful.
- Easy operation, safe and reliable performance, and compact size.
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Power Supply | 220V/50Hz |
| Power | 100W |
| Compressed Air | 0.5Mpa-0.8Mpa |
| Max Cutting Size | 350*280mm (Customizable, no upper limit for max cutting size on request) |
| Booster Cylinder | 5T |
| Cutting Precision | ±0.1mm |
| Overall Dimension | L680mm * W505mm * H900mm |
| Equipment Weight | 220kg |
